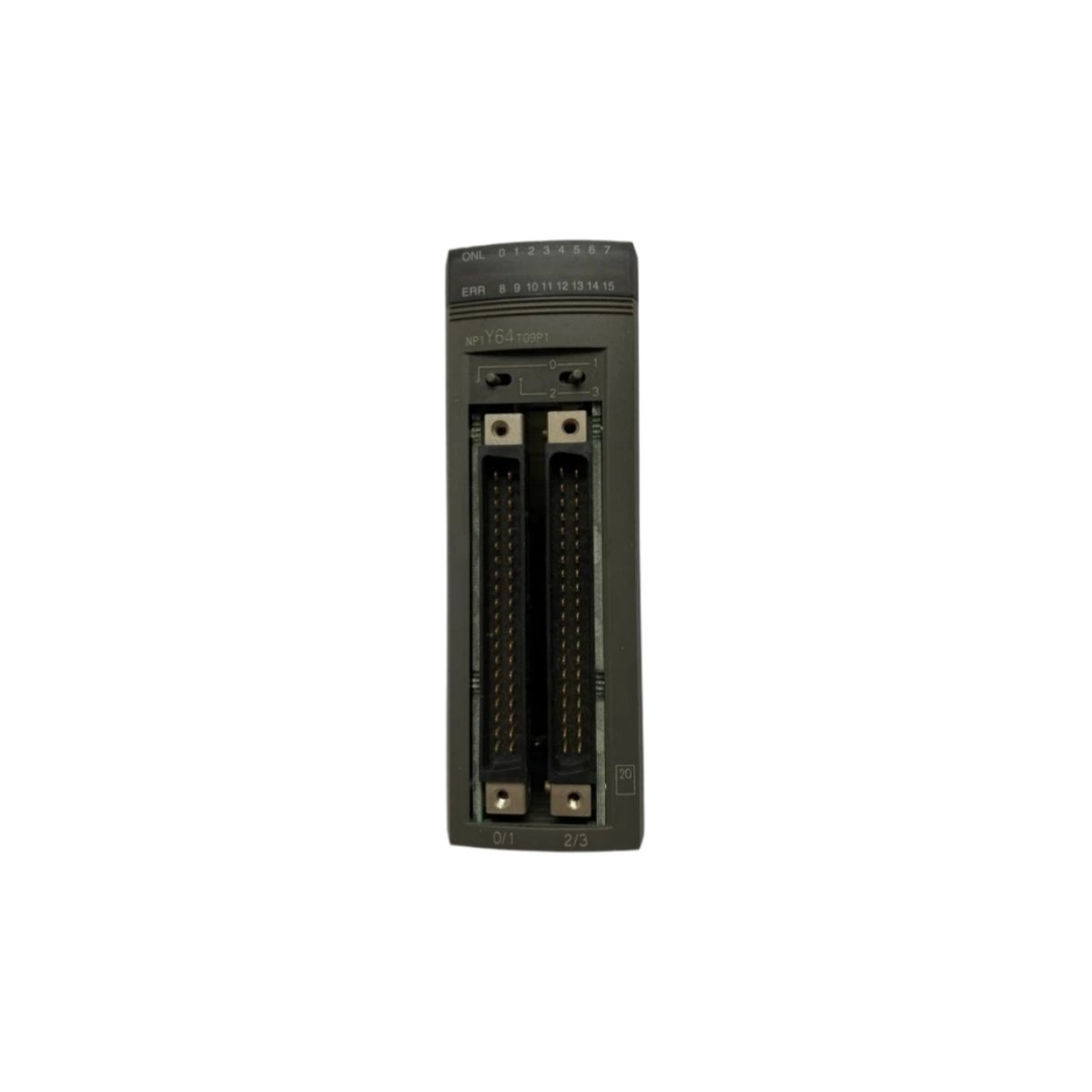

High-Density Output Control with the NP1Y64T09P1
The NP1Y64T09P1 delivers 64 transistor output points within a single MICREX-SX SPH module slot. This sink-type configuration suits applications demanding high channel counts in compact panels. Engineers deploy it for actuator control, indicator driving, and discrete signal routing tasks.
Output Specifications and Load Capacity
Each channel handles 0.12 A maximum continuous current, while each common group supports 3.2 A. The module organizes outputs into two groups of 32 points with separate common terminals. Consequently, the NP1Y64T09P1 balances channel density against thermal management requirements.
| Parameter | Specification |
|---|---|
| Output Points | 64 (32 points × 2 commons) |
| Output Type | Transistor sink |
| Rated Load Voltage | DC 12–24 V (10.2–30 V range) |
| Max Current per Point | 0.12 A |
| Max Current per Common | 3.2 A |
| Response Time | ≤1 ms (ON→OFF, OFF→ON) |
Physical Characteristics and Interface
The unit weighs approximately 180 g and occupies four words of I/O memory. Two 40-pin FCN connectors provide external wiring access. Additionally, photocoupler isolation separates outputs from internal logic circuits for noise immunity.
| Parameter | Specification |
|---|---|
| Weight | ~180 g |
| Occupied Words | 4 |
| External Connection | 40-pin connector × 2 |
| Isolation Method | Photocoupler |
| Internal Current Draw | ≤90 mA at 24 V DC |
Protection and Status Indication
Integrated zener diodes suppress surge voltages from inductive loads. Each channel includes LED status indication for rapid troubleshooting. Furthermore, the module houses two internal 5 A fuses protecting common circuits. The NP1Y64T09P1 operates reliably across 0°C to 55°C ambient conditions.
Details
| Weight | 0.42 kg |
|---|---|
| Dimensions | 120 × 100 × 75 mm |
