Technical Specifications and Hardware Overview

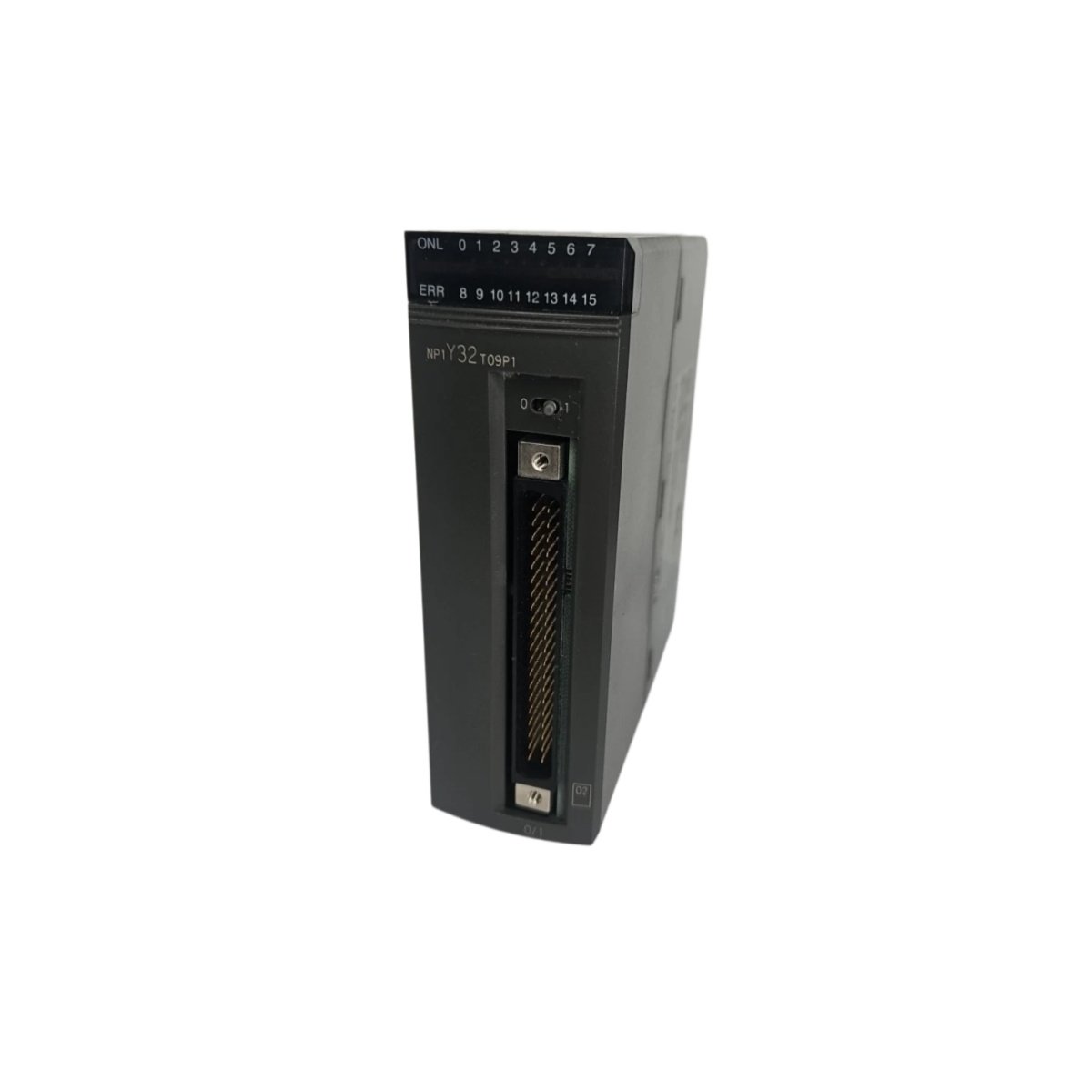

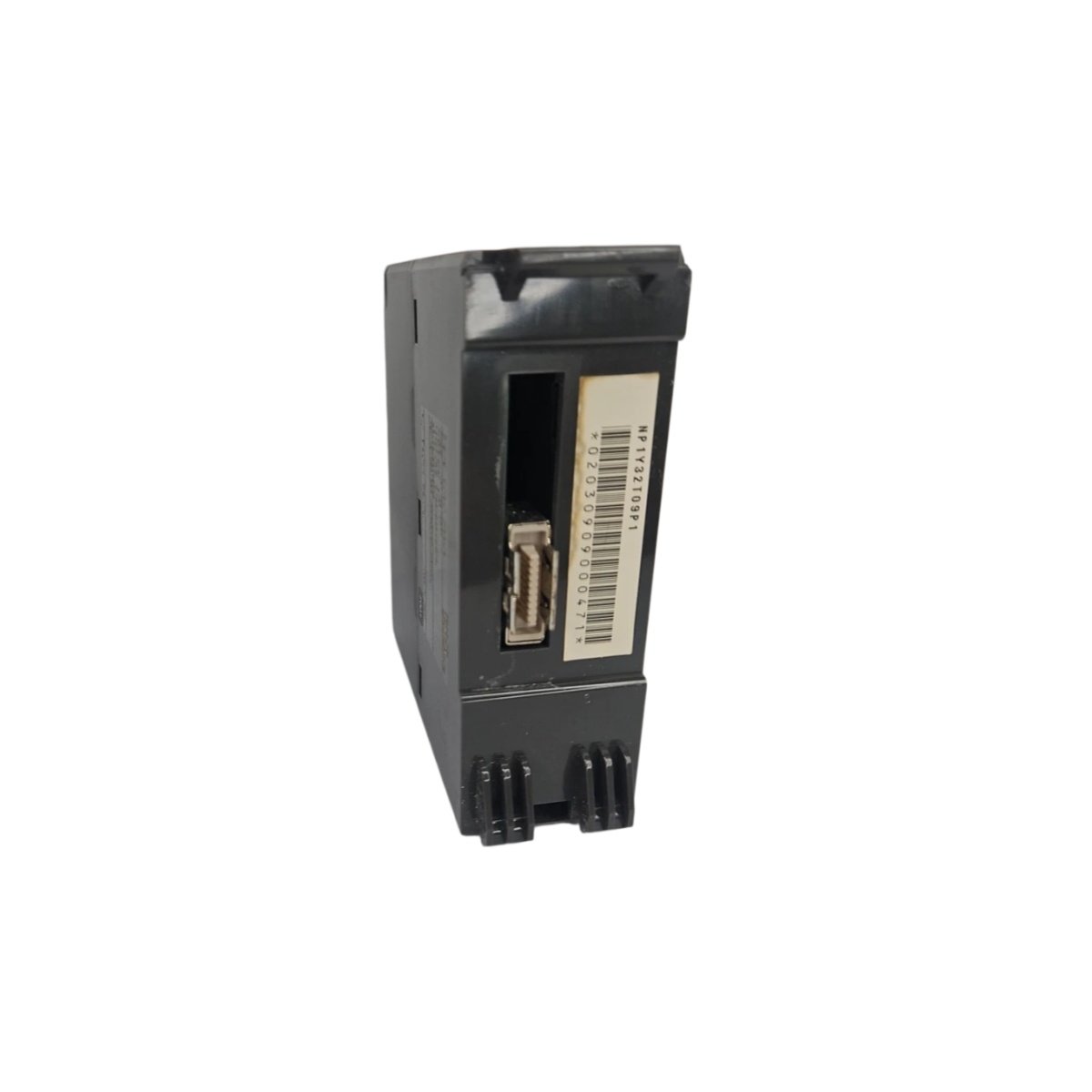

The Fuji NP1Y32T09P1 serves as a digital output module for the MICREX-F series programmable controller system. This module measures 128 mm in height, 38 mm in width, and 100 mm in depth for standard DIN rail mounting. It weighs approximately 0.40 kilograms, which facilitates straightforward handling during installation. The unit draws 0.1 A from a 5 V DC backplane supply for logic operation. It also requires an external 24 V DC supply for field output signal driving. The module provides 32 digital output channels for controlling actuators and indicators.

Each output channel operates with a transistor type configuration for switching loads. The unit delivers 0.5 A per channel with a total current capacity of 8 A per module. It includes built-in short-circuit protection for each individual output channel. The module features optical isolation between the logic circuits and field outputs. It offers a typical output turn-on and turn-off time of 0.5 ms. The unit contains no onboard memory for energy storage applications. The operating temperature range spans -10°C to 55°C for industrial environments. Storage temperatures extend from -20°C to 70°C without causing damage. Humidity tolerance covers 10% to 90% non-condensing conditions for consistent performance.

Output Control and Protection Features

This digital module controls solenoid valves, motor contactors, and indicator lamps. It drives 32 output channels with transistor switching for fast response. The Fuji NP1Y32T09P1 provides short-circuit protection on every output channel. It uses optocouplers to isolate field wiring from the logic circuitry. The unit features green LED indicators showing each channel’s active status. It handles inductive loads with integrated flyback diode suppression. The module requires external 24 V DC for output power and field devices.

Installation and System Integration

The NP1Y32T09P1 mounts on a standard DIN rail within the MICREX-F system. It occupies one slot width for straightforward panel integration. The module connects directly to 32 field devices through front terminals. It remains compatible with all MICREX-F CPUs and backplanes. The unit employs a passive output design with minimal backplane current draw. It requires no configuration or address switches for operation. The module provides reliable performance without routine recalibration or maintenance.
