Reliable Actuator Control for Micro-SX Systems

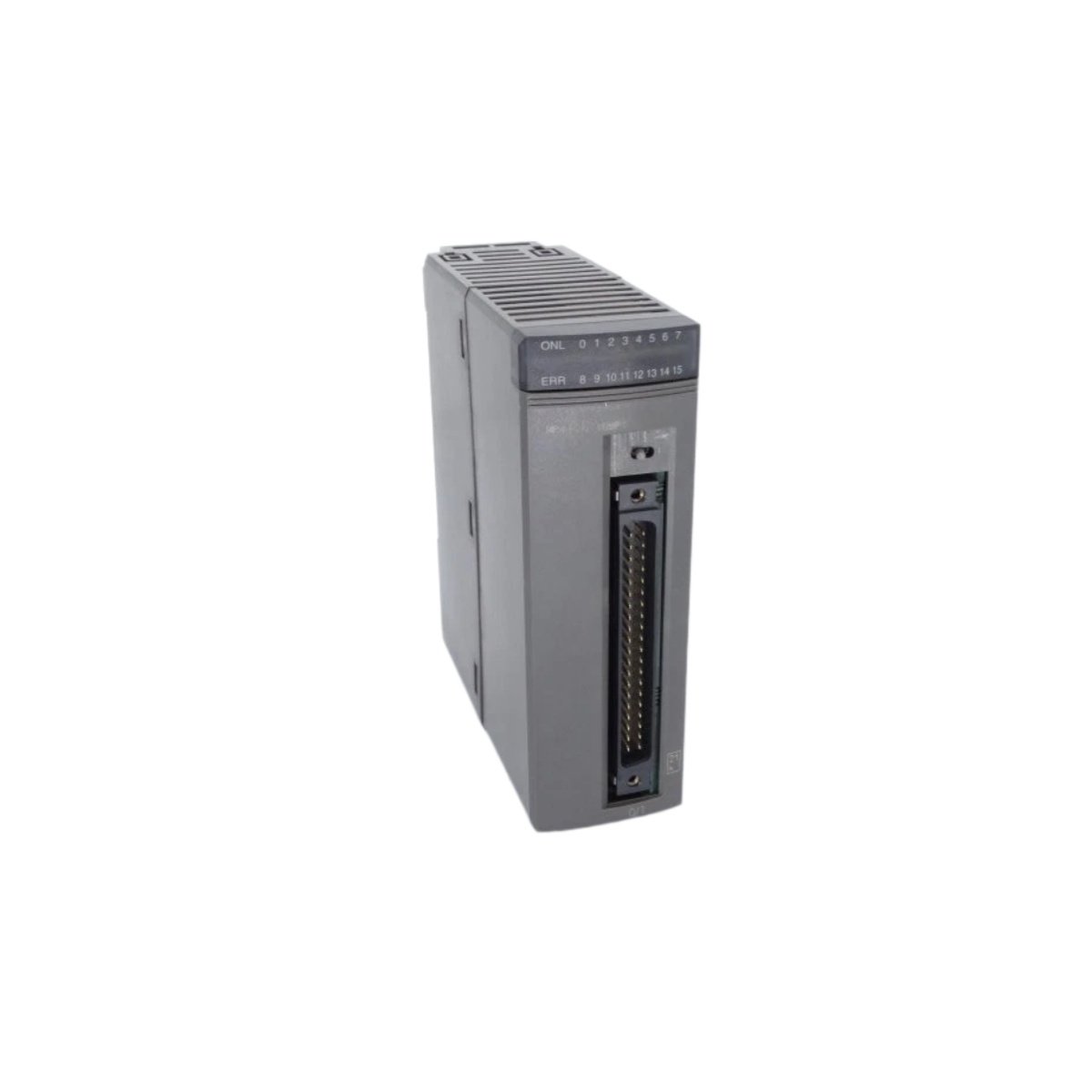

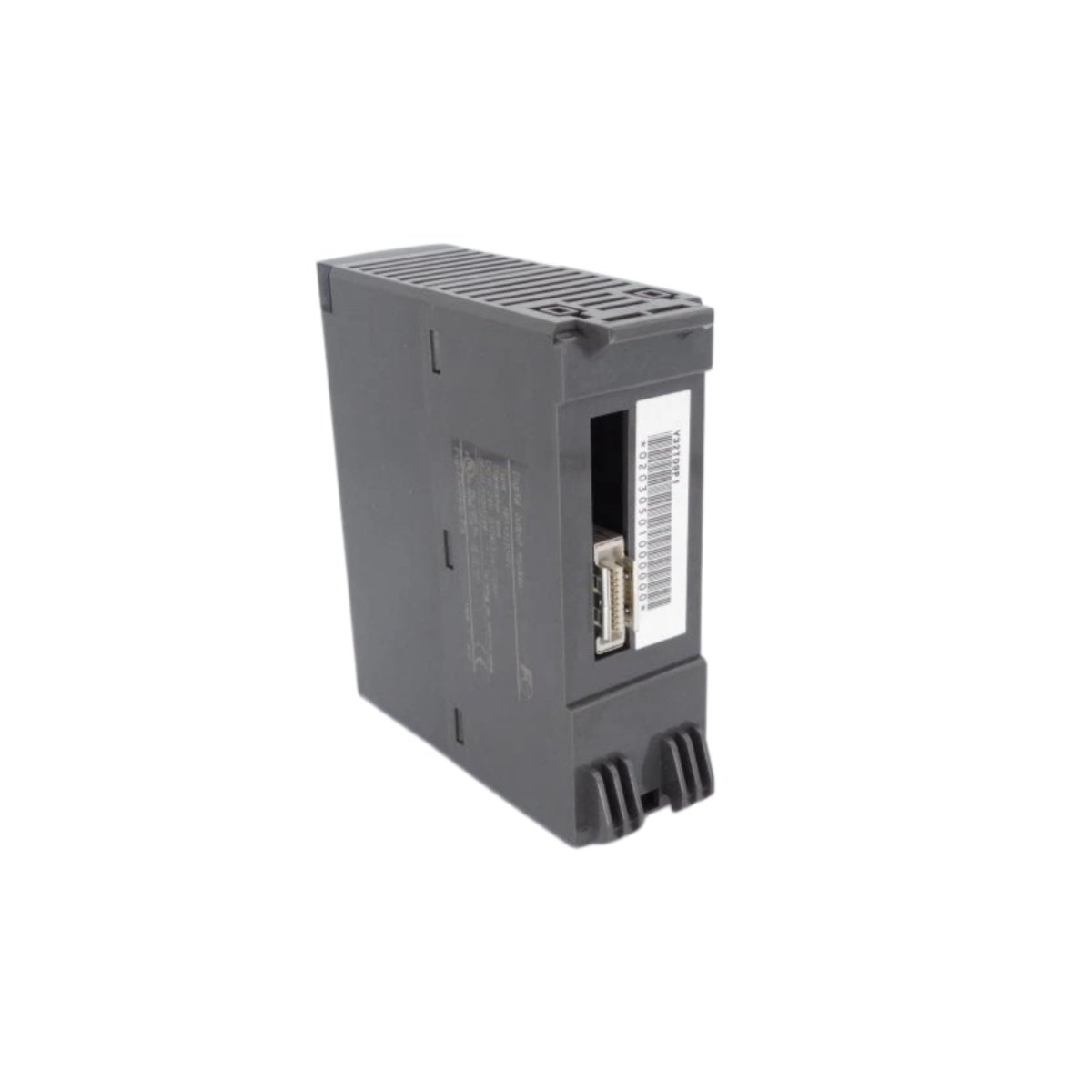

The FUJI NP1Y16T10P2 digital output module provides high-density actuator control for Micro-SX programmable controllers. This module translates logic commands into switching actions for valves, contactors, and indicator lamps. Compact automation systems benefit from this module’s space-efficient design and reliable performance.

Output Specifications and Electrical Ratings

This digital output module features 16 sourcing outputs with individual short-circuit and overcurrent protection. Each output switches 24 V DC loads up to 0.5 A, with a total module current of 8 A. The outputs incorporate integrated freewheeling diodes for inductive load suppression. Furthermore, the module includes a common power input terminal with reverse polarity protection.

Protection Features and Diagnostic Functions

The FUJI NP1Y16T10P2 incorporates comprehensive protection mechanisms for reliable operation. Each output includes thermal shutdown that activates at 85°C to prevent damage. An individual LED indicator displays the status of each output channel. The module also provides a collective fault signal to the CPU upon overcurrent events.

Physical Design and Connection Interface

This digital output module features a compact 40 mm housing that saves valuable panel space. The unit weighs approximately 0.20 kilograms, simplifying installation and replacement. A 20-pin connector provides access to all output terminals and the common supply. The module uses spring-clamp terminals that accept wires from 0.2 mm² to 1.5 mm².

System Integration and Addressing

You can install this output module in any slot of the Micro-SX central or expansion rack. The module automatically maps its 16 outputs to consecutive addresses in the I/O table. Users can configure output default states for fail-safe operation during CPU errors. The module supports hot-swapping for quick replacement without system shutdown.

Application Guidelines and Environmental Ratings

This output module operates reliably in ambient temperatures from 0°C to 55°C. The unit carries an IP20 protection rating, suitable for clean control cabinet environments. For inductive loads, connect external suppression diodes across the field devices. Always provide adequate clearance around the module for heat dissipation. The module meets UL and CE standards for industrial control equipment.
