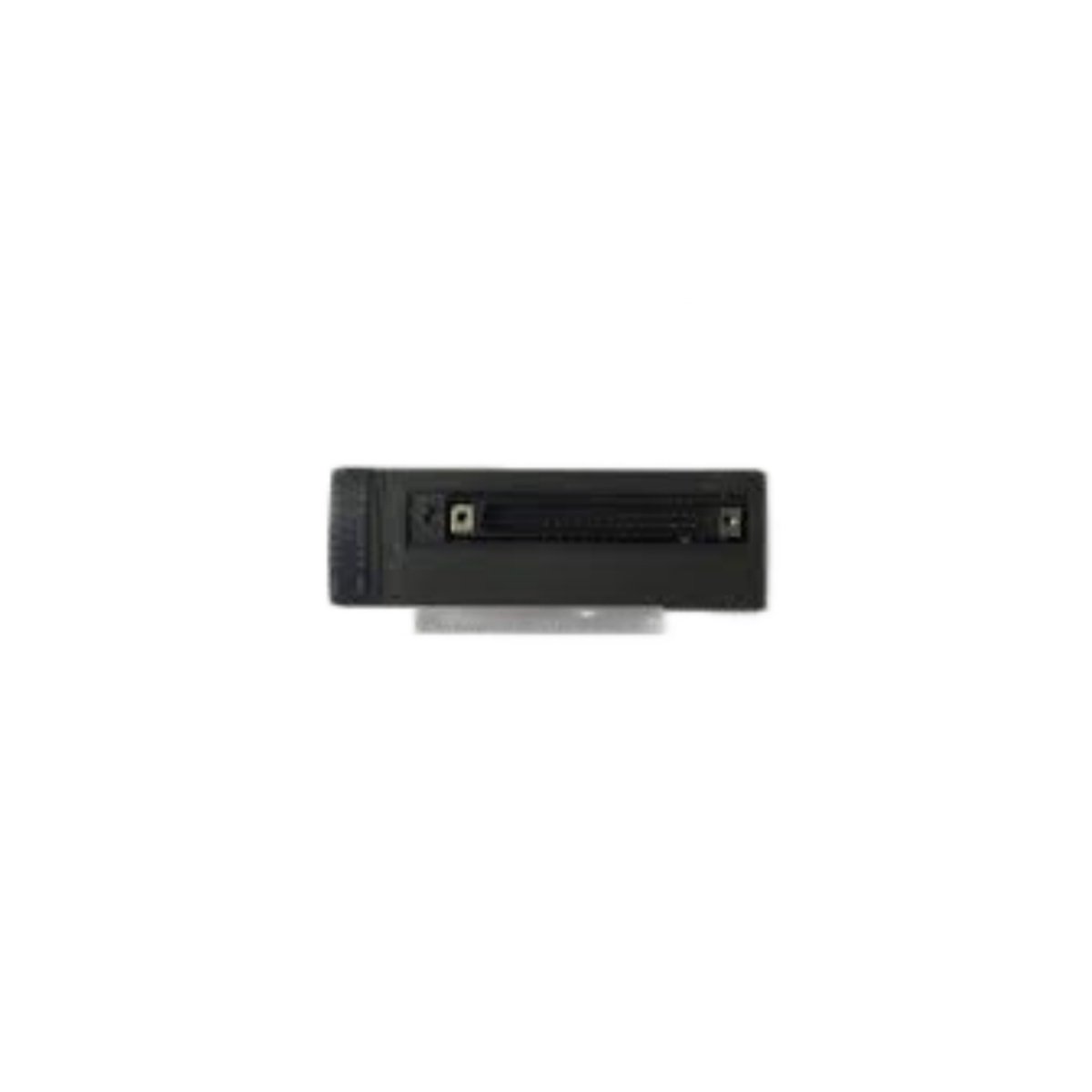

This digital output module drives solenoids, contactors, and indicator lamps in control systems. It translates logic commands into switching actions for field devices. The Fuji NP1Y08S provides eight independent output channels for versatile machine control. Each channel handles substantial loads while maintaining reliable switching performance.

Physical Dimensions and Mounting Information

This digital output module measures 120 millimeters in width, 70 millimeters in depth, and 95 millimeters in height. The unit weighs approximately 0.55 kilograms for straightforward DIN-rail installation. It mounts directly onto the NP1 series backplane using a high-density connector. The housing uses flame-retardant polyamide material for enhanced safety compliance. Additionally, the front panel includes module status and channel activity indicators.

Output Specifications and Switching Capabilities

The Fuji NP1Y08S delivers eight sourcing outputs with a rated current of 2 amperes per channel. Each output handles inductive loads up to 50 watts and lamp loads up to 30 watts. The module supports a switching voltage range from 12 to 24 volts DC. Output response time reaches 0.5 milliseconds for precise timing applications. Each channel includes short-circuit and overcurrent protection for robust operation.

Interface Design and Field Wiring

This module features a 40-pin connector for backplane communication and power. A removable 18-terminal screw block simplifies all field wiring connections. Each terminal accepts wire sizes from 0.2 to 2.5 square millimeters. Clear labeling on the terminal block speeds up the installation and troubleshooting processes. The module provides common terminals for grouping output returns.

Protection Features and Diagnostic Capabilities

The Fuji NP1Y08S incorporates individual channel diagnostic LEDs for status indication. An overload detection circuit trips the output during excessive current conditions. Thermal shutdown protects the module from overtemperature events. The module reports fault status to the controller for system-level response. Automatic recovery restores the output after clearing the fault condition.

Component Architecture and Build Quality

This digital output module contains 52 individual components on a four-layer PCB. Key parts include power MOSFETs, optoisolators, and current-sense resistors. The board uses thermal vias for efficient heat dissipation from the power devices. All critical components meet automotive-grade temperature specifications.

Energy Storage and Electrical Characteristics

The Fuji NP1Y08S includes a 470-microfarad capacitor bank for local power decoupling. This storage filters supply noise and maintains stable output voltage under load. The module draws 120 milliamperes from the 5 VDC logic supply for internal operation. It requires an external 24 VDC supply for the output power stage.

Technical Data Summary

System Integration and Application Scope

This digital output module interfaces directly with Fuji NP1 series programmable controllers. It handles machine sequencing, conveyor control, and valve actuation tasks. Consequently, the Fuji NP1Y08S provides reliable output switching for factory automation systems.
