Technical Specifications and Hardware Overview

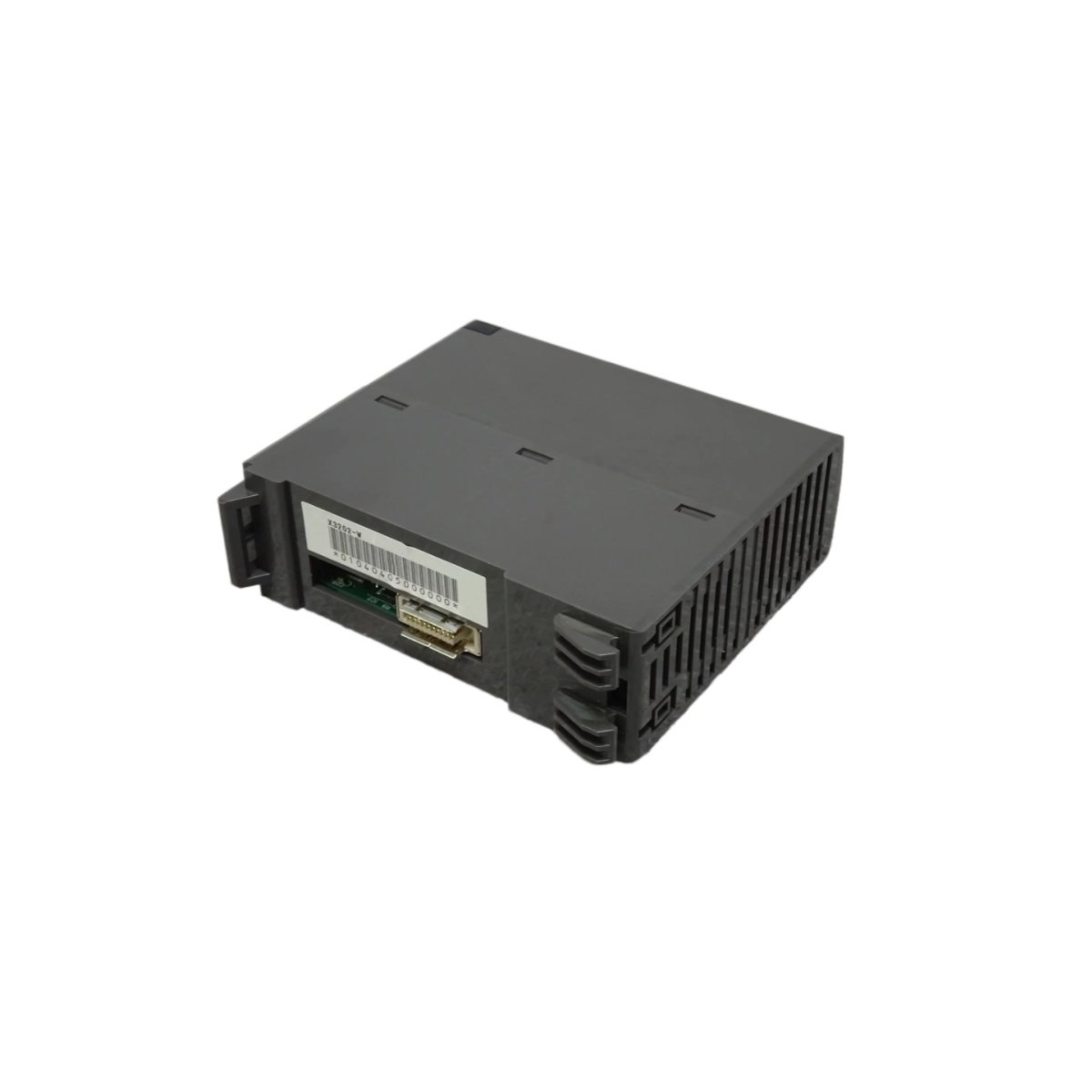

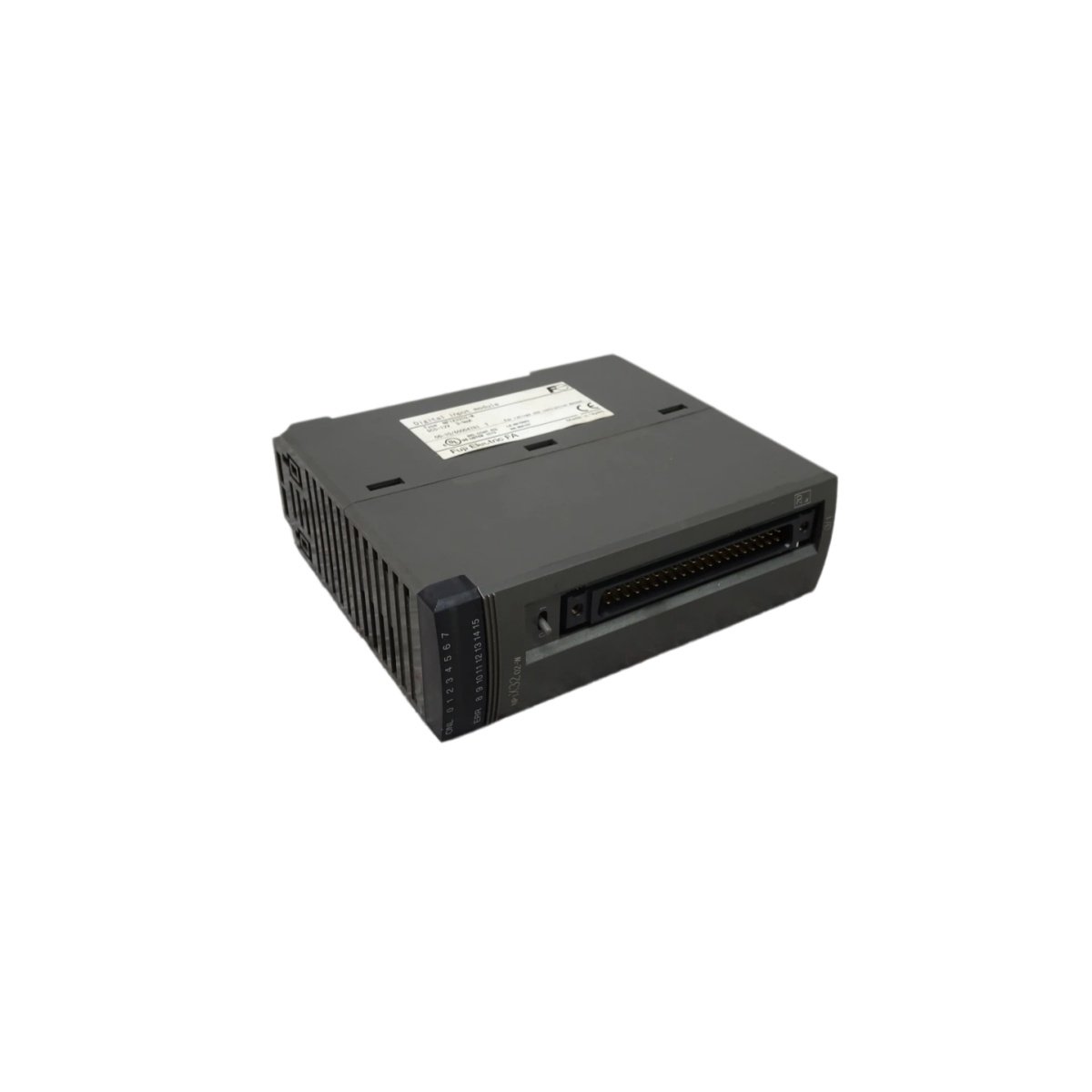

The Fuji NP1X3202-W serves as a digital input module for the MICREX-F series programmable controller system. This module measures 128 mm in height, 38 mm in width, and 100 mm in depth for standard DIN rail mounting. It weighs approximately 0.38 kilograms, which enables straightforward handling during installation. The unit draws 0.1 A from a 5 V DC backplane supply for logic operation. It also requires an external 24 V DC supply for field input signal processing. The module provides 32 digital input channels for binary signal acquisition.

Each input channel operates at 24 V DC nominal voltage with a typical current of 5 mA. The unit includes integrated filter circuits for noise suppression on each channel. It offers an input response time of 2 ms for reliable signal detection. The module features optical isolation between field inputs and internal logic. It contains no onboard memory for energy storage applications. The operating temperature range spans -10°C to 55°C for industrial environments. Storage temperatures extend from -20°C to 70°C without causing damage. Humidity tolerance covers 10% to 90% non-condensing conditions.

Signal Acquisition and Processing Features

This digital module acquires signals from pushbuttons, limit switches, and sensor contacts. It buffers the input states for the CPU through the system backplane. The Fuji NP1X3202-W supports both sink and source field wiring configurations. It uses optocouplers to provide isolation between inputs and the logic circuitry. The unit features green LEDs for visualizing the status of each active channel. It handles input voltages from -3 V to 30 V DC without sustaining damage.

Installation and System Integration

The NP1X3202-W mounts on a standard DIN rail within the MICREX-F system. It occupies a single slot width for easy panel integration. The module connects directly to 32 field devices via front terminals. It remains compatible with all MICREX-F CPUs and power supplies. The unit employs a passive input design with minimal power consumption. It requires no configuration or address setting for operation.
