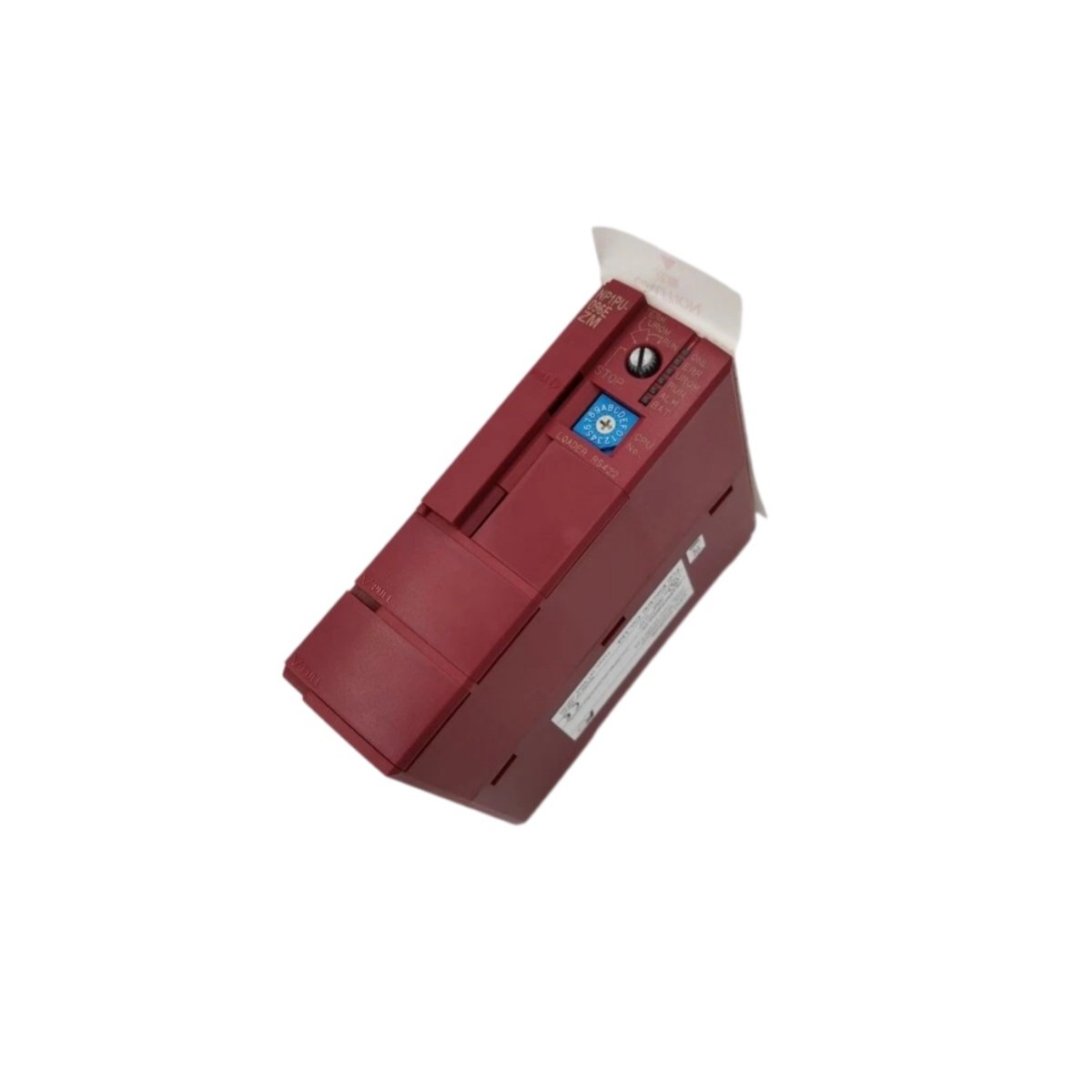

The Fuji NP1PU-096EZM CPU module controls logic execution for industrial automation systems. Engineers choose this unit for reliable program processing across manufacturing and process environments. Moreover, its compact housing supports straightforward integration into existing PLC racks.
Interface and Connectivity
The module connects through a dedicated backplane connector for fast data exchange. Additionally, it provides programming ports and communication interfaces for configuration tasks. These ports support tool connection, therefore simplifying commissioning and diagnostics considerably. Field wiring relies on standard terminal blocks that reduce installation time.
Physical Dimensions and Weight
The unit measures 28.6 mm in width, 100 mm in height, and 90 mm in depth. Furthermore, it weighs approximately 150 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.
Component Count and Energy Storage
The NP1PU-096EZM integrates a high-speed processor core for deterministic scan cycles. It also contains one backup capacitor rated at 220 µF for data retention. Therefore, this energy storage element preserves program memory during brief power interruptions. The board carries roughly 180 discrete components for dependable operation.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | NP1PU-096EZM |
| Category | CPU Module |
| Program Capacity | 96K Steps |
| Connector Type | Backplane / Programming Port |
| Dimensions (W×H×D) | 28.6 × 100 × 90 mm |
| Weight | ~150 g |
| Energy Storage | 220 µF Backup Capacitor |
| Operating Temperature | 0°C to 55°C |
Why This Module Suits Industrial Applications
System integrators value the NP1PU-096EZM for its stable scan performance and simple setup. Meanwhile, the backup capacitor protects program memory from data loss. As a result, system reliability improves while maintenance costs decrease.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 120 × 100 × 75 mm |
