Technical Specifications and Hardware Overview

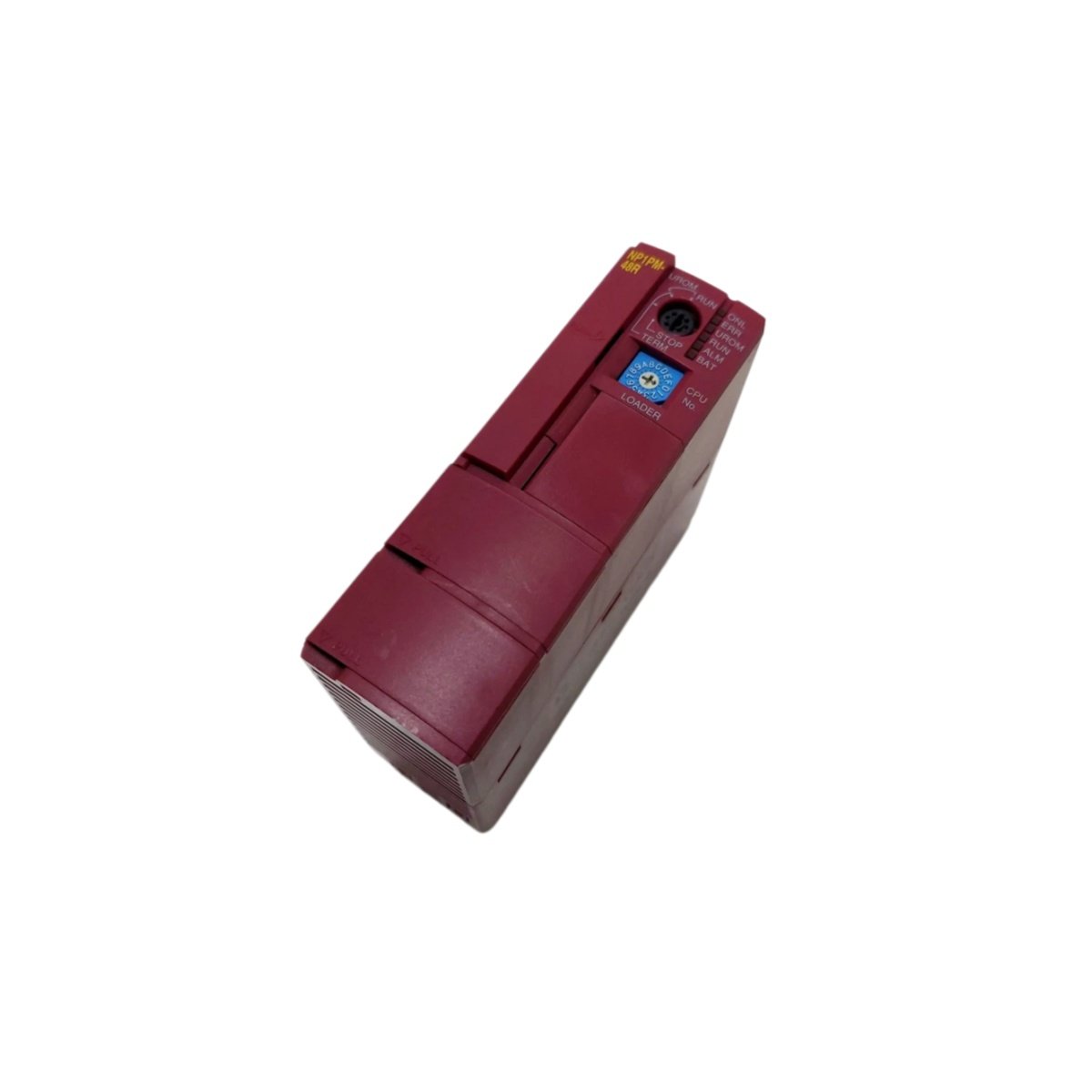

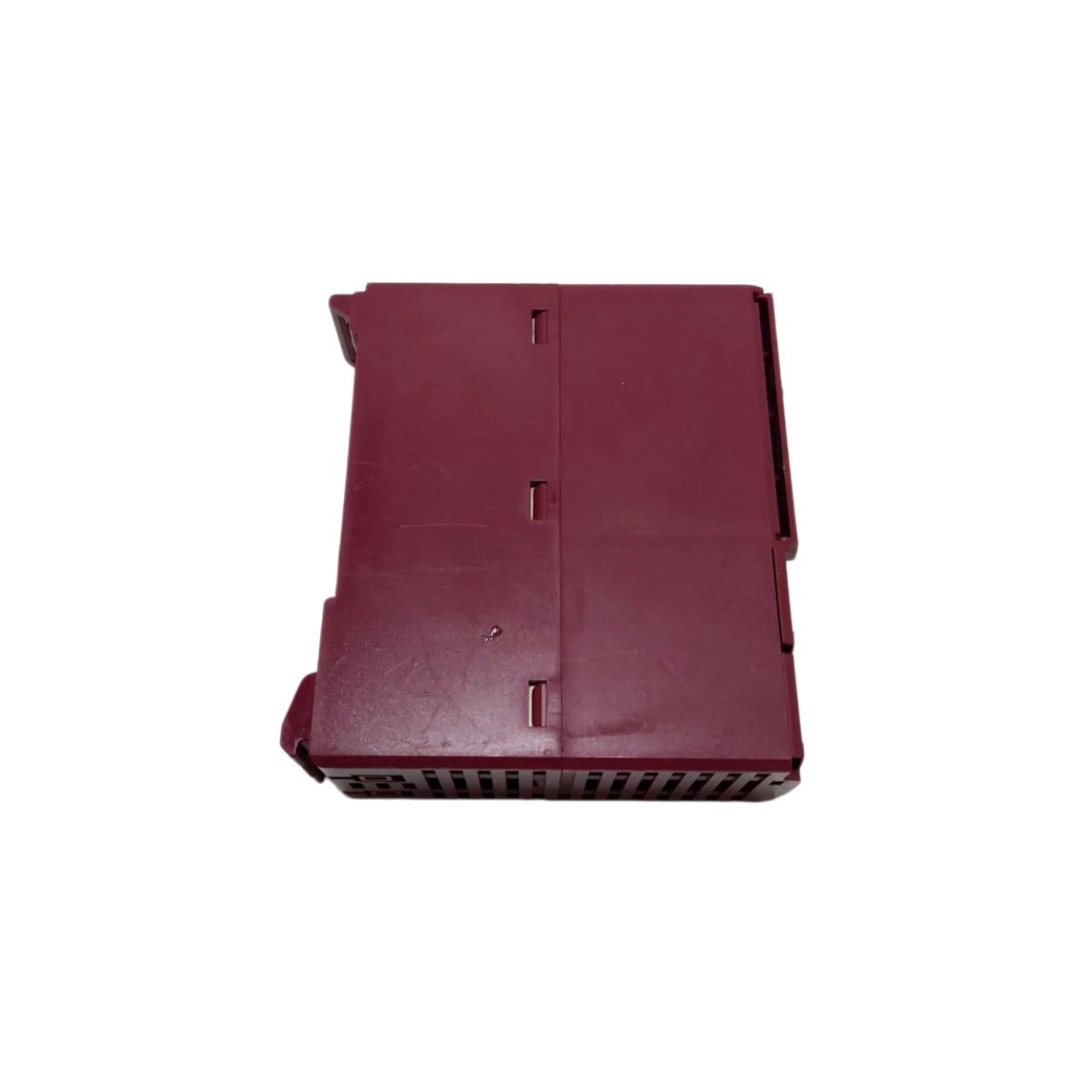

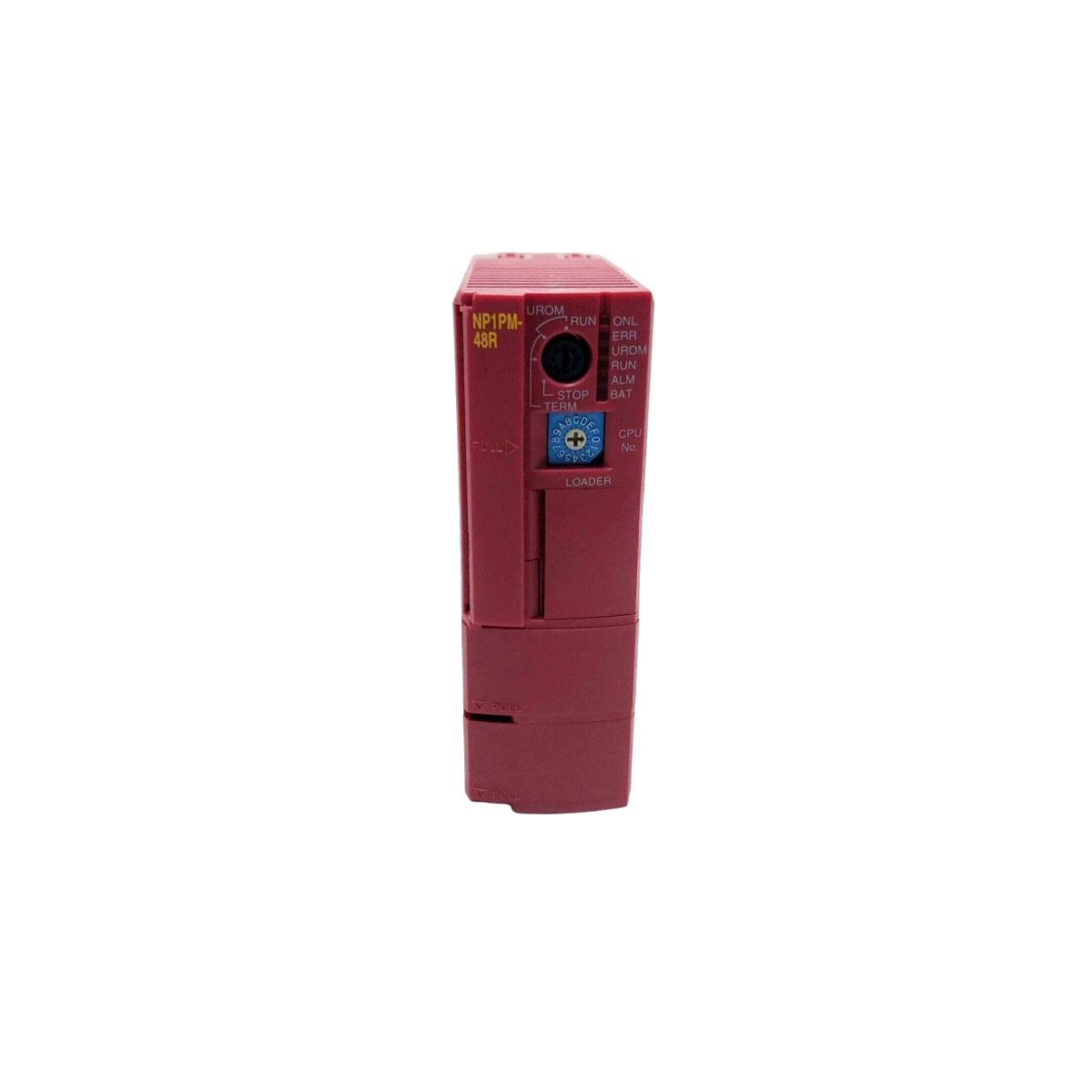

The Fuji NP1PM-48R functions as a programmable logic controller for the MICREX-F series automation platform. This controller measures 128 mm in height, 38 mm in width, and 100 mm in depth for standard DIN rail mounting. It weighs approximately 0.48 kilograms, which enables straightforward handling during installation. The unit draws 0.12 A from a 24 V DC supply, consuming roughly 2.9 W under normal operation. It provides 24 digital inputs and 24 relay outputs for comprehensive control applications. The controller includes one RS-232 serial port for programming and monitoring access.

It contains 16 KB of flash memory for user program and parameter storage. The unit offers 4 KB of RAM for real-time data and variable handling. It supports ladder logic programming with a typical scan time of 5 ms per 1K steps. The controller includes 8 KB of EEPROM for retaining critical configuration data. It features a built-in real-time clock with a lithium battery backup. The operating temperature range spans -10°C to 55°C for industrial environments. Storage temperatures extend from -20°C to 70°C without causing damage. Humidity tolerance covers 10% to 90% non-condensing conditions for reliable performance.

Control Capabilities and System Integration

This controller executes user-written ladder logic programs for automation tasks. It scans inputs, executes logic, and updates outputs in deterministic cycles. The Fuji NP1PM-48R supports up to 512 internal relays and 64 timers. It includes 64 counters for process monitoring and event tracking applications. The unit provides 16 data registers for analog value manipulation and storage. It communicates with programming software via the RS-232 serial interface. The controller stores retentive data in EEPROM for power-loss protection. It supports online editing for program modifications without stopping operation.

Installation and Reliability Metrics

The NP1PM-48R mounts securely onto a standard 35 mm DIN rail. It requires 30 mm clearance above and below for adequate ventilation. The controller delivers a mean time between failures of 200,000 hours. It carries CE and UL certifications for global deployment. The unit passes vibration testing at 5 to 500 Hz with 0.5 g amplitude. It withstands shock loads up to 10 g for 11 ms duration. The controller contains approximately 120 components on a double-sided PCB.
