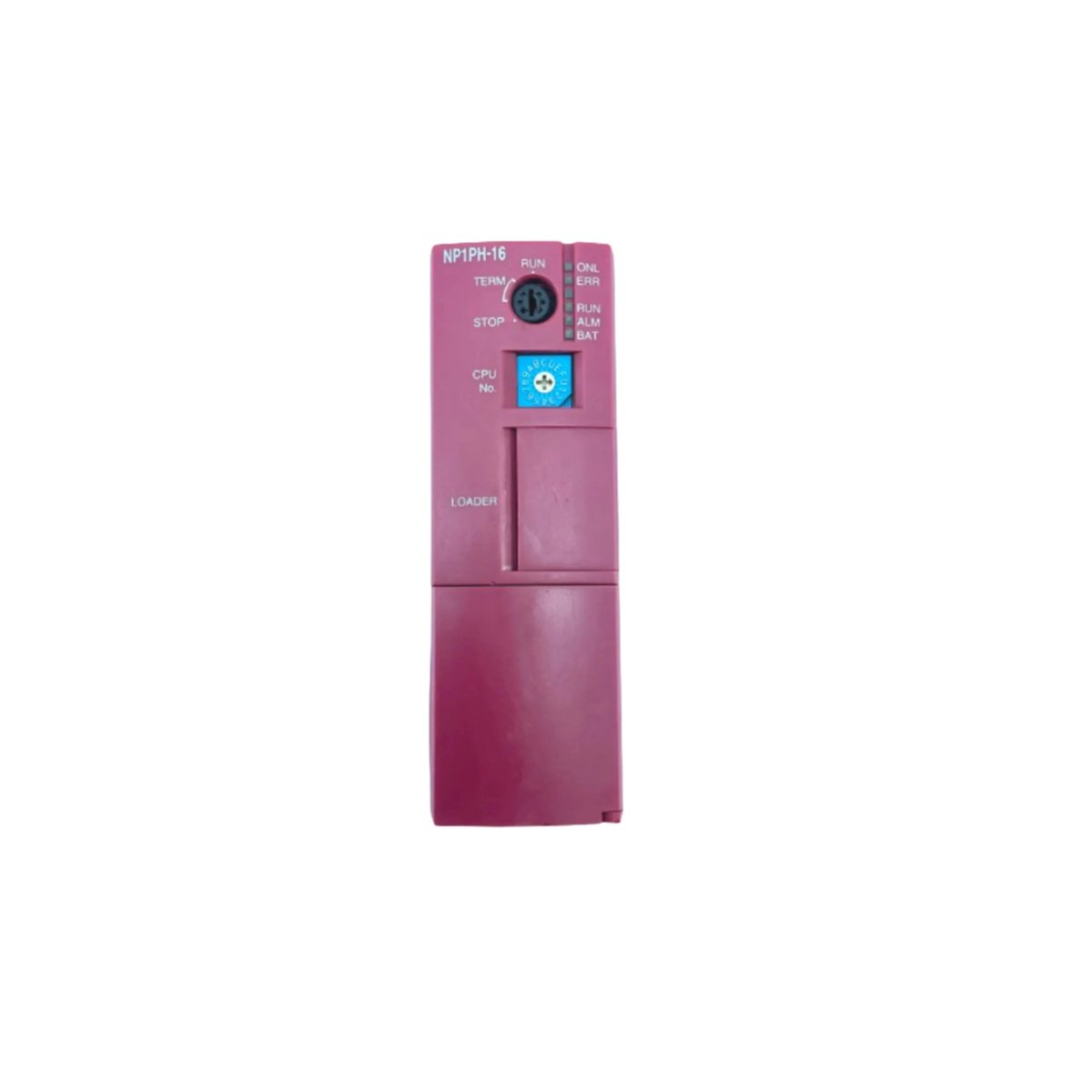

This central processing unit delivers robust computational power for complex automation tasks. It integrates seamlessly into the Fuji Electric SPH series programmable controller platform. The module executes user programs with exceptional speed and deterministic precision. Users can implement advanced control strategies for demanding industrial processes.

Processing Architecture and Execution Performance

This CPU module features a high-speed RISC processor architecture for efficient program execution. It executes ladder logic and structured text instructions with minimal scan times. The unit processes 5,000 instructions per millisecond for responsive control loops. This performance suits high-speed packaging, motion control, and synchronized production lines. Consequently, the module maintains precise timing for critical machine operations.

Memory Resources and Data Preservation

The NP1PH-16 stores user programs in 128 KB of flash memory for permanent retention. Data memory reaches 64 KB for variables, timers, and counter values. The unit includes a supercapacitor for data backup during power interruptions. This energy storage maintains data integrity for up to 72 hours without external power. Upon power restoration, the CPU retrieves the last saved state automatically. This feature prevents data loss and eliminates manual re-initialization after outages.

Communication Interfaces and Network Integration

This CPU module includes integrated serial ports for flexible device connectivity. An RS-232 port supports programming and HMI communication via dedicated cables. An RS-485 port enables multi-drop networking with Modbus RTU devices. Users can also add an optional Ethernet module for TCP/IP connectivity. The unit supports T-Link remote I/O for distributed control applications. Consequently, engineers can build scalable architectures with diverse field devices.

Built-in Diagnostics and Fault Management

The module performs comprehensive self-diagnostics during every power-up cycle. It monitors memory integrity, communication status, and program execution continuously. The CPU generates diagnostic codes for any detected anomalies or errors. A front-panel LED provides visual confirmation of normal operation. A red “Error” LED illuminates when the unit detects critical faults. These diagnostics simplify troubleshooting and reduce system downtime significantly.

Energy Consumption and Thermal Performance

The module draws 250 mA at 5 V DC from the backplane power supply. Power dissipation remains below 3.5 W under full operational load. The unit operates reliably between 0 °C and 55 °C ambient temperature. Natural convection cooling maintains safe operating temperatures without fans. Humidity tolerance spans 10% to 90% without condensation issues. This efficient thermal design ensures long-term reliability in standard factory environments.

Installation and Expansion Capabilities

This CPU module fits into any standard SPH rack slot for straightforward installation. It supports up to 1,024 digital or analog I/O points across multiple racks. The unit accommodates various special function modules for system expansion. A locking mechanism secures the module against vibration and physical shock. Furthermore, the housing carries an IP20 rating for protection against solid objects. This robust design suits automotive assembly, food processing, and material handling applications.
