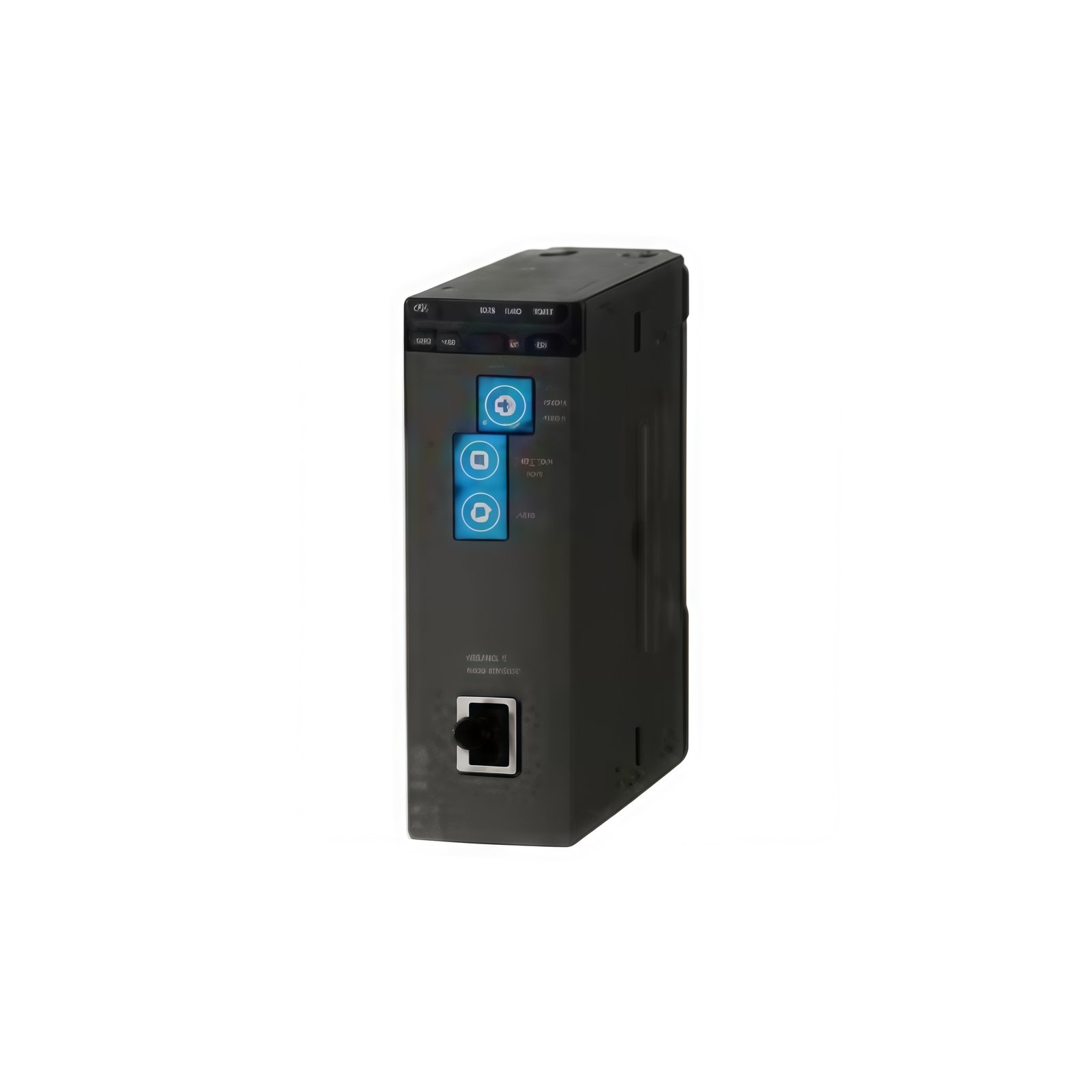

The FUJI NP1L-FL3 is a high-speed communication module for the FUJI Electric MICREX-SX series programmable logic controllers. This module provides a robust interface for connecting controllers to plant-wide data networks. It supports both Ethernet and FL-net protocols for flexible system integration . Furthermore, the module enables seamless data exchange between multiple controllers and supervisory systems . The FUJI NP1L-FL3 ensures reliable and deterministic communication for time-critical automation applications .
High-Speed Network Connectivity
This communication module delivers fast data transfer rates up to 100 Mbps for efficient network performance. The FUJI NP1L-FL3 supports the FL-net protocol, which complies with the OPC FA standard for factory automation . It also provides TCP/IP and UDP/IP communication services for versatile connectivity options . Moreover, the module includes a built-in web server for easy configuration and status monitoring . This feature simplifies network setup and reduces deployment time significantly .
Robust Data Exchange and Diagnostics
The FUJI NP1L-FL3 supports cyclic and event-driven data exchange for various application requirements . Its built-in diagnostics continuously monitor network status and communication integrity . The module detects communication errors and network disconnections immediately . Additionally, it logs error events for later analysis and troubleshooting . This diagnostic intelligence minimizes downtime and accelerates problem resolution .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | FUJI Electric |
| Model | FUJI NP1L-FL3 |
| Product Type | Communication Module |
| Series | MICREX-SX |
| Network Protocols | FL-net, Ethernet (TCP/IP, UDP/IP) |
| Transfer Speed | 10/100 Mbps (auto-negotiation) |
| Network Interface | RJ-45 Ethernet port |
| Communication Mode | Cyclic and event-driven |
| Web Server | Built-in for configuration and monitoring |
| Diagnostic Functions | Network status monitoring, error detection |
| Max. Nodes | 256 stations |
| Power Consumption | 5 W |
| Dimensions (W x H x D) | 90 x 70 x 50 mm |
| Weight | Approximately 0.3 kg |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –25 °C to +70 °C |
| Mounting | DIN Rail |
System Integration and Topology Support
This communication module integrates seamlessly with the MICREX-SX series and compatible devices . The FUJI NP1L-FL3 supports star, daisy-chain, and ring network topologies for flexible deployment . Users can connect up to 256 stations in a single FL-net network segment . The module’s address configuration uses simple DIP switch settings for fast setup .
Applications and Industries
The FUJI NP1L-FL3 serves industrial applications requiring reliable plant-wide data communication . It commonly appears in automotive manufacturing, food processing, and chemical plants . The module also supports building automation and water treatment facilities . Its robust design ensures stable operation in electrically noisy industrial environments .
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
