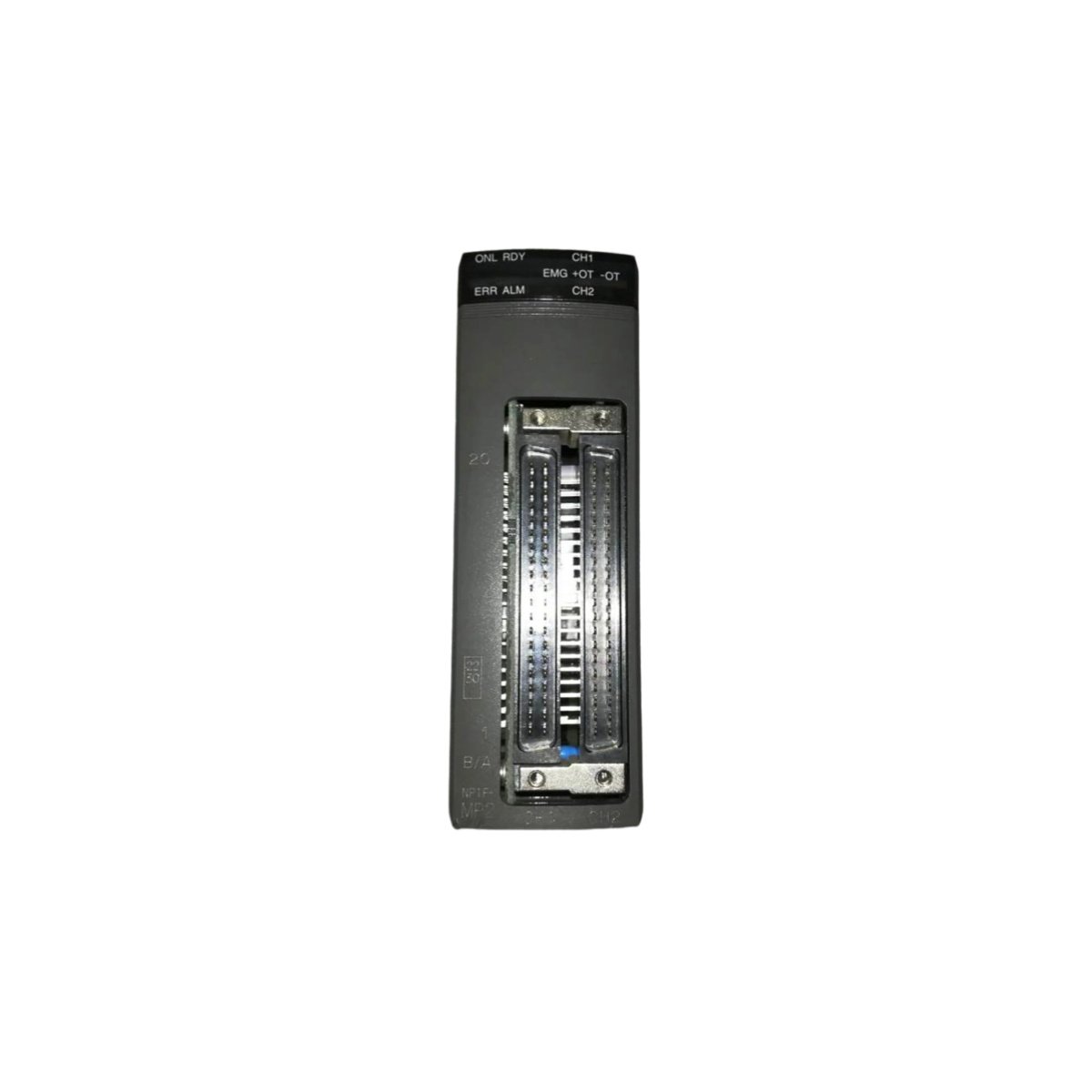

This PC module card integrates personal computer functionality into industrial control systems. It runs Windows-based applications directly within the programmable controller chassis. The Fuji NP1F-MP2 provides a versatile platform for data processing and visualization tasks. This design eliminates the need for separate industrial PCs in control cabinets.
Physical Dimensions and Installation Profile
This PC module card measures 140 millimeters in width, 120 millimeters in depth, and 45 millimeters in height. The unit weighs approximately 0.75 kilograms for stable backplane mounting. It inserts directly into a dedicated slot on the Fuji NP1 series base board. The front panel includes ejector levers for convenient module removal.
Processor and Memory Specifications
The Fuji NP1F-MP2 features an Intel Atom processor running at 1.6 gigahertz. It provides 2 gigabytes of DDR3 system memory for responsive application performance. The module includes 32 gigabytes of solid-state storage for operating system and application files. A separate 512-megabyte CompactFlash slot accepts removable memory cards for data transfer. This memory architecture supports data logging and recipe management functions.
Display Interfaces and Video Output
This PC module card incorporates one VGA port for external monitor connectivity. A DVI-D output supports high-resolution displays up to 1920 by 1080 pixels. The integrated graphics controller shares up to 256 megabytes of system memory. Dual independent display outputs enable operator interface and maintenance screen configurations.
Communication Ports and Network Capabilities
The Fuji NP1F-MP2 provides two 10/100/1000 Mbps Ethernet ports for network redundancy. Six USB 2.0 ports support keyboards, mice, and external storage devices. One RS-232C serial port connects legacy serial instruments to the system. The module also offers one RS-422/485 port for multi-drop field device networks. All interfaces include ESD protection for reliable field operation.
Storage Expansion and Operating System
This PC module card runs Windows Embedded Standard 7 as the default operating system. The solid-state drive provides ample space for custom applications and databases. Users can add external storage via the USB ports or CompactFlash slot. The module supports remote desktop connections for headless operation.
Component Architecture and Energy Storage
The Fuji NP1F-MP2 contains 210 individual components on a high-density ten-layer PCB. Key parts include the CPU, chipset, power regulation ICs, and high-speed memory modules. The board implements thermal management with a heat sink and forced-air channels. The module includes a 4,700-microfarad capacitor bank for temporary power hold-up.
Technical Data Summary
| Parameter | Specification |
|---|---|
| Brand | Fuji |
| Model | NP1F-MP2 |
| Product Type | PC Module Card |
| Dimensions (W x D x H) | 140 mm x 120 mm x 45 mm |
| Weight | 0.75 kg |
| Processor | Intel Atom @ 1.6 GHz |
| System Memory | 2 GB DDR3 |
| Storage | 32 GB solid-state drive |
| Removable Storage | CompactFlash slot (512 MB max) |
| Video Outputs | VGA and DVI-D (dual independent) |
| Max Resolution | 1920 x 1080 pixels |
| Ethernet Ports | 2 x Gigabit RJ-45 |
| USB Ports | 6 x USB 2.0 |
| Serial Ports | 1 x RS-232C, 1 x RS-422/485 |
| Operating System | Windows Embedded Standard 7 |
| Energy Storage | 4,700 µF (hold-up) |
| Component Count | 210 parts |
| PCB Layers | 10 |
System Integration and Application Scope
This PC module card connects directly to the controller backplane for seamless data exchange. It runs HMI applications alongside real-time control tasks without additional hardware. Consequently, the Fuji NP1F-MP2 provides a compact solution for integrated automation and information systems.
Details
| Weight | 0.75 kg |
|---|---|
| Dimensions | 140 × 120 × 45 mm |
