Technical Overview of the Memory Card Interface Module

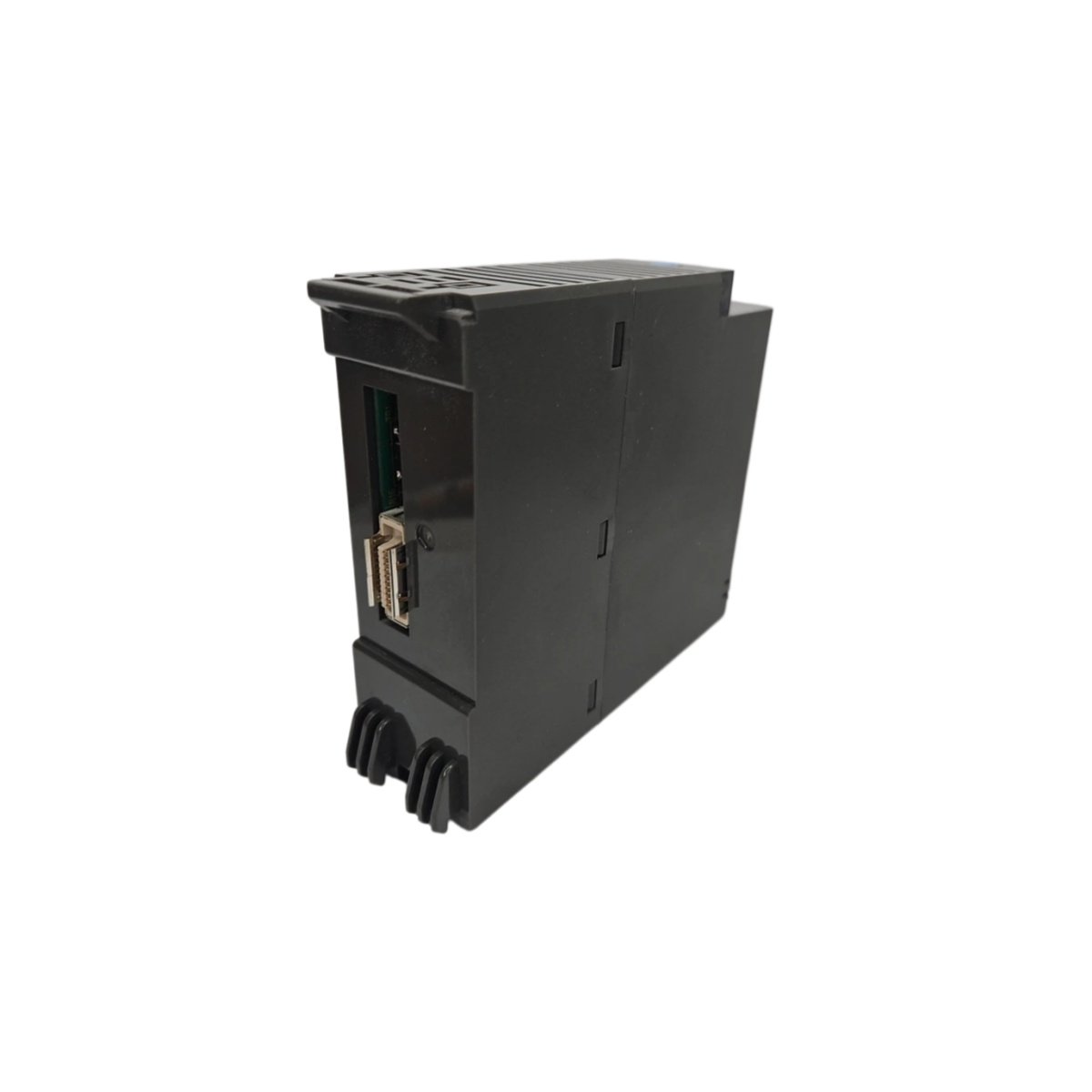

The Fuji NP1F-MM1 serves as a memory card interface module for the MICREX-F programmable controller series. This module provides a convenient interface for external memory cards. It enables program storage, data logging, and firmware updates. The design simplifies system maintenance and program transfer operations.
Key Technical Specifications
This section details the exact parameters for the Fuji NP1F-MM1 memory card interface module. Use these figures to confirm compatibility with your MICREX-F system.
| Parameter | Specification |
|---|---|
| Part Number | NP1F-MM1 |
| Type | Memory Card Interface Module |
| Product Family | MICREX-F |
| Supported Memory Cards | CompactFlash / SRAM (depending on version) |
| Interface | Dedicated module slot |
| Data Transfer Rate | Dependent on memory card type |
| Operating Voltage | 5V DC (from backplane) |
| Dimensions (W x H x D) | Approx. 35 x 90 x 60 mm |
| Weight | Approx. 0.15 kg |
| Compatibility | MICREX-F series CPUs and expansion racks |
Application and System Integration

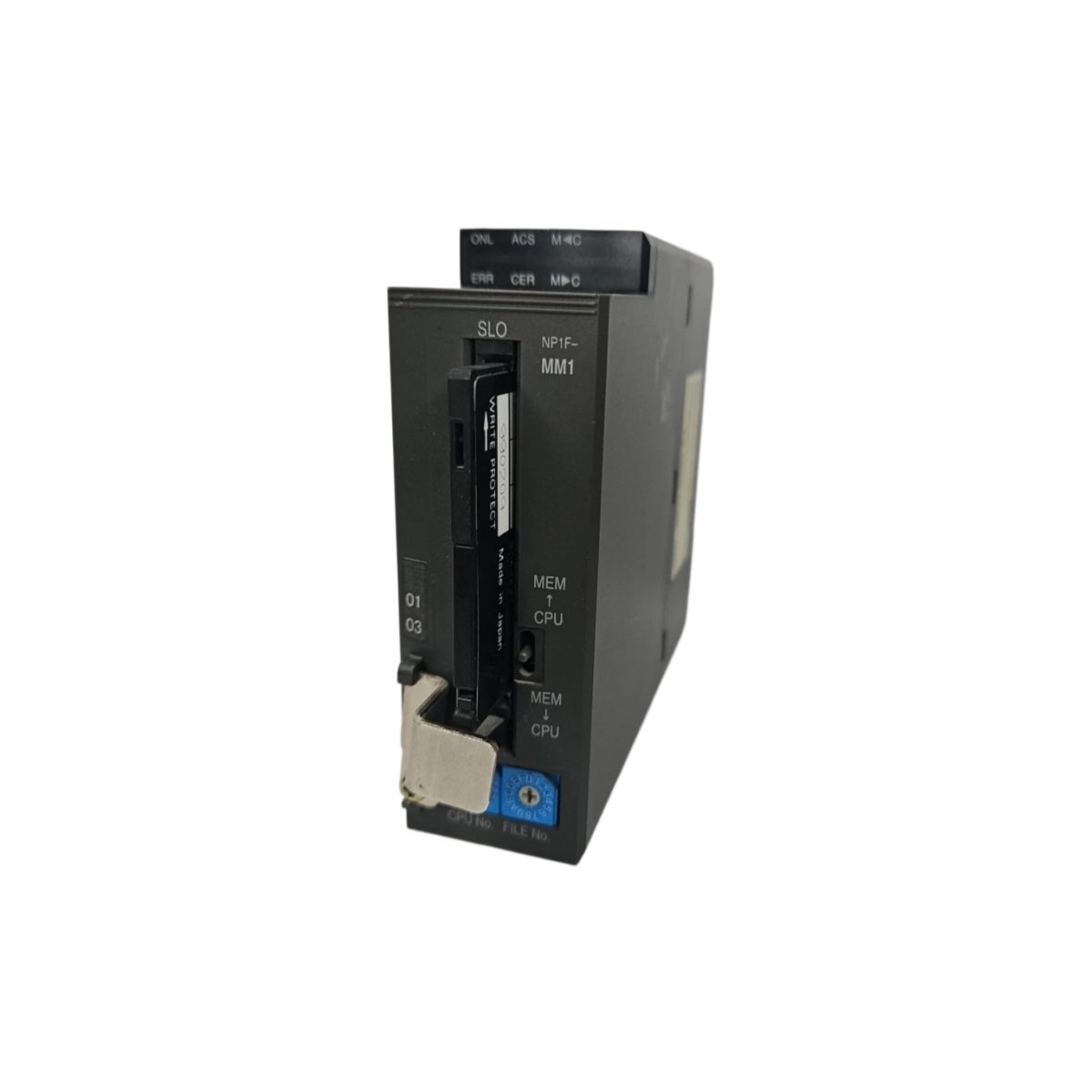

This interface module mounts directly into the MICREX-F rack. It allows users to store and retrieve programs using removable memory cards. The Fuji NP1F-MM1 simplifies program backups and system updates. Its card slot provides easy access for operators. Consequently, maintenance teams can quickly transfer programs between systems.
Reliability and Performance Features
The module offers a reliable interface for external memory storage. Its compact design fits neatly into existing system racks. The robust connector ensures consistent card contact. Engineers choose the Fuji NP1F-MM1 for convenient program management in MICREX-F systems.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
