Product Overview

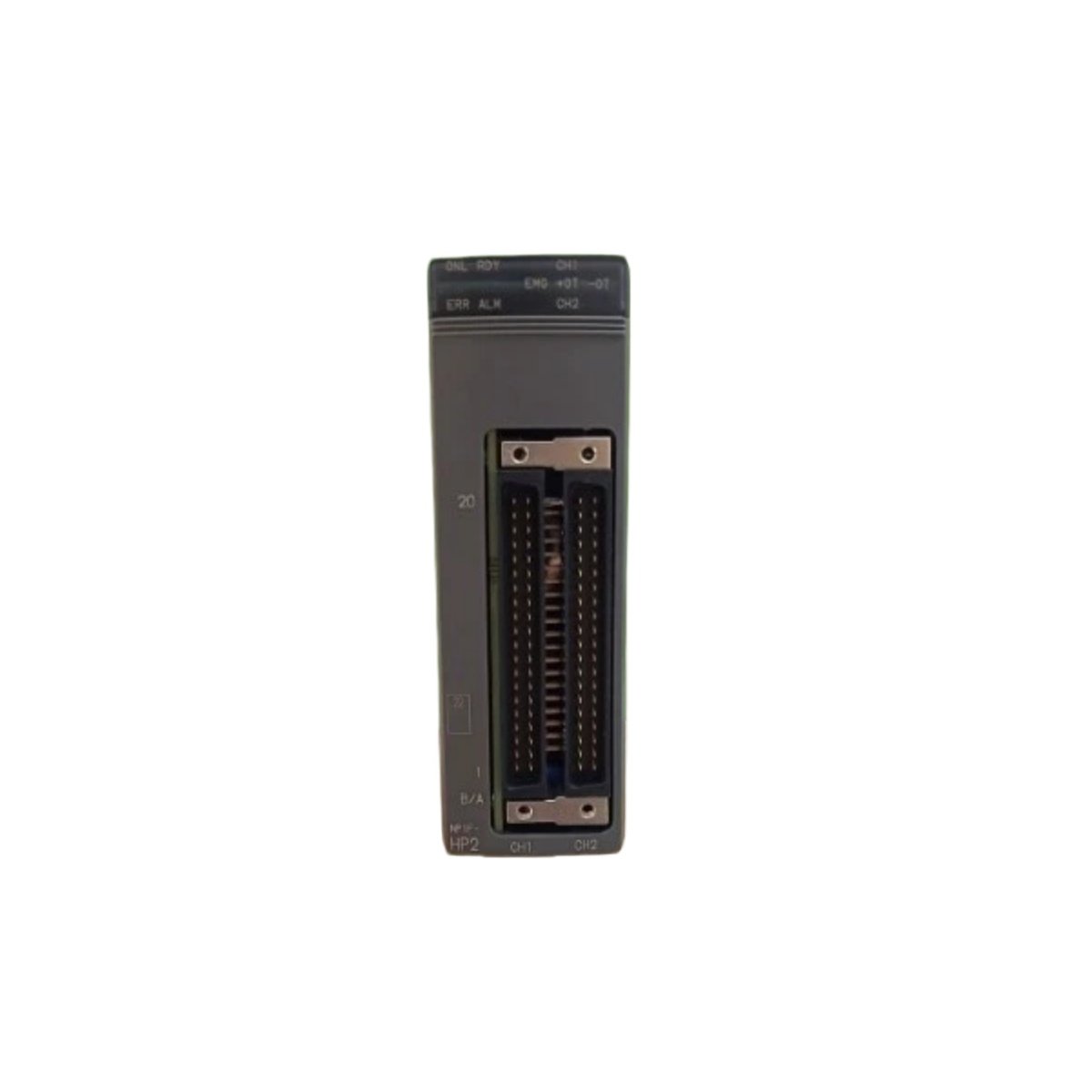

The Fuji NP1F-HP2/MP2 provides precise positioning control for servo and stepper motor applications. This module generates pulse train outputs for accurate motion control in automated machinery. It supports point-to-point positioning and linear interpolation operations effectively. The unit integrates seamlessly into Fuji Electric NP1 series programmable controller systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | NP1F-HP2/MP2 |
| Product Type | Positioning Control Module |
| Number of Axes | 2 independent axes |
| Control Method | Pulse train output (Pulse/Direction) |
| Maximum Output Frequency | 200 kpps (kilo pulses per second) |
| Positioning Data | 200 points per axis |
| Positioning Modes | Point-to-point, linear interpolation |
| Speed Control | 1 to 200,000 pps |
| Acceleration/Deceleration | Linear acceleration/deceleration |
| Output Type | Differential line driver (RS-422) |
| Power Supply | 5 VDC from backplane |
| Power Dissipation | 4.0 W typical |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | –25°C to 70°C |
| Humidity Range | 10% to 90% non-condensing |
Physical Dimensions and Mounting
This positioning module measures 250 mm in width, 30 mm in height, and 140 mm in depth. The unit weighs approximately 0.48 kg. It plugs directly into a standard NP1 series rack backplane. The front panel includes LED indicators for power, axis activity, and fault status. These LEDs provide immediate visual feedback on positioning operation.
Motion Control and Positioning Capabilities
The NP1F-HP2/MP2 controls two independent axes for coordinated motion applications. It generates pulse train outputs up to 200 kpps for high-speed positioning. The module stores up to 200 positioning points per axis for complex sequences. It supports linear acceleration and deceleration for smooth motion profiles. The unit handles both point-to-point positioning and linear interpolation modes. The line driver outputs ensure reliable signal transmission over longer distances.
Electrical Interface and Connectivity
A front-access terminal block provides the primary interface for motor driver connections. The module uses differential line driver outputs (RS-422) for pulse and direction signals. This interface ensures noise immunity in electrically noisy industrial environments. Each axis includes signals for pulse output, direction, and positioning complete feedback. The terminal block accepts wires up to 1.5 mm² for secure connections.
Installation and System Integration
You can install this module into any available slot in the NP1 series rack. Insert the module carefully until it locks securely into the backplane. Connect the pulse and direction outputs to your servo or stepper drives. Configure the positioning parameters using the programming software. Always set the acceleration rates and positioning data for each application.
Environmental Compliance
This module carries CE marking for industrial use. It also complies with RoHS environmental directives. The conformal coating protects the PCB against moisture and dust.
Details
| Weight | 1.4 kg |
|---|---|
| Dimensions | 127 × 254 × 203 mm |
