This module executes precise point-to-point positioning for multi-axis motion systems. It generates high-speed pulse trains for stepper and servo motor drivers. Engineers use this unit for pick-and-place machines, cut-to-length applications, and CNC positioning. The design incorporates trapezoidal and S-curve acceleration profiles for smooth motion transitions. Its compact rack-mountable format suits standard industrial control chassis installations.

Axis Control Architecture

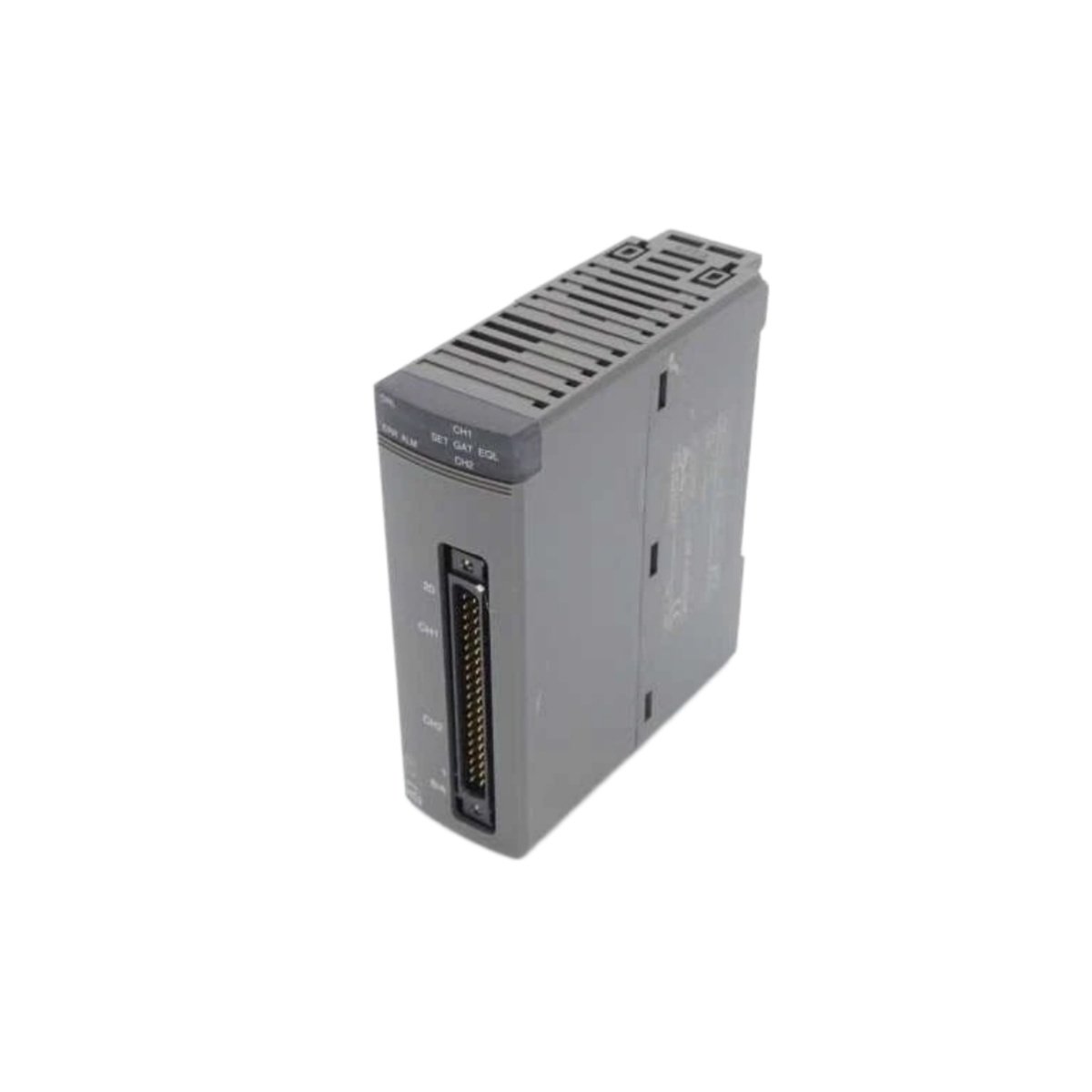

The NP1F-HC2MR1 provides two independent positioning axes with simultaneous coordinated operation. Each axis generates differential line driver outputs for noise-immune pulse transmission. The module supports absolute and incremental positioning modes for versatile applications. Users can program separate acceleration, deceleration, and target speeds per axis. This flexibility accommodates diverse motion requirements without additional hardware.

Pulse Output Specifications

Each axis delivers pulse frequencies from 1 Hz up to 200 kHz for high-speed positioning. The module outputs both pulse and direction signals or CW/CCW pulse pairs. Output voltage levels comply with RS-422 differential standards for long cable runs. Each channel provides 20 mA of output current for driving standard line receivers. Furthermore, the module includes programmable pulse output filters for noise reduction.

Physical Dimensions and Rack Mounting

The NP1F-HC2MR1 measures 12.7 cm in width, 25.4 cm in height, and 20.3 cm in depth. It weighs approximately 1.1 kg, which ensures stable seating in the rack assembly. A steel housing with vented panels facilitates heat dissipation during intensive motion operations. The unit mounts directly into standard 19-inch racks or compatible PLC backplanes. Its front panel contains all connectors and status indicators for convenient access.

Connector Interfaces and Field Wiring

Two 9-pin D-sub connectors handle the output signals for both positioning axes. Each connector provides differential pulse outputs, direction signals, and external input terminations. The module also includes a 5-position terminal block for limit switch and home sensor connections. These terminals accept wire gauges from 0.2 mm² to 1.5 mm². Additionally, built-in transient suppression protects the outputs from electrical noise.

Internal Components and Memory Resources

The printed circuit board contains one DSP, two line driver chips, and six optocouplers. A 256 kB flash memory stores motion profiles and positioning parameters permanently. The module includes 64 kB of RAM for real-time position data buffering. A 0.1 F supercapacitor maintains position registers for approximately 30 minutes. These memory resources enable seamless operation during brief power interruptions.

Position Feedback and Encoder Inputs

The NP1F-HC2MR1 accepts incremental encoder feedback for closed-loop positioning verification. Each axis includes a dedicated 5 VDC encoder input with A, B, and Z channels. The encoder interface handles frequencies up to 200 kHz for high-resolution position tracking. A built-in 5 VDC supply provides 100 mA for powering external encoders. Consequently, the module confirms actual position against commanded values.

Power Requirements and Isolation

This module draws 300 mA from the 5 VDC backplane under full operational load. It also requires 200 mA from an external 24 VDC supply for output excitation. Optical isolation provides 1500 VAC separation between motion outputs and backplane logic. This isolation protects the processor from motor drive electrical noise and transients. The module also includes reverse polarity protection on the 24 VDC input.

Status Indication and Diagnostic Features

Six front-panel LEDs display power, axis activity, and fault conditions clearly. Green LEDs indicate normal pulse output while red LEDs signal overtravel or driver alarm events. The module logs positioning errors with time-stamped entries in non-volatile memory. It also provides a software-accessible status register for each axis. Maintenance personnel can monitor motion performance without external measurement equipment.

Environmental Specifications and Compliance

The NP1F-HC2MR1 operates reliably across temperatures from 0°C to 55°C. It withstands humidity levels up to 95% non-condensing without performance degradation. The module complies with IEC 61000-4-2 for electrostatic discharge immunity. Vibration tolerance meets IEC 60068-2-6 requirements for industrial installations. This robust design suits packaging machinery, assembly lines, and automated welding systems.
