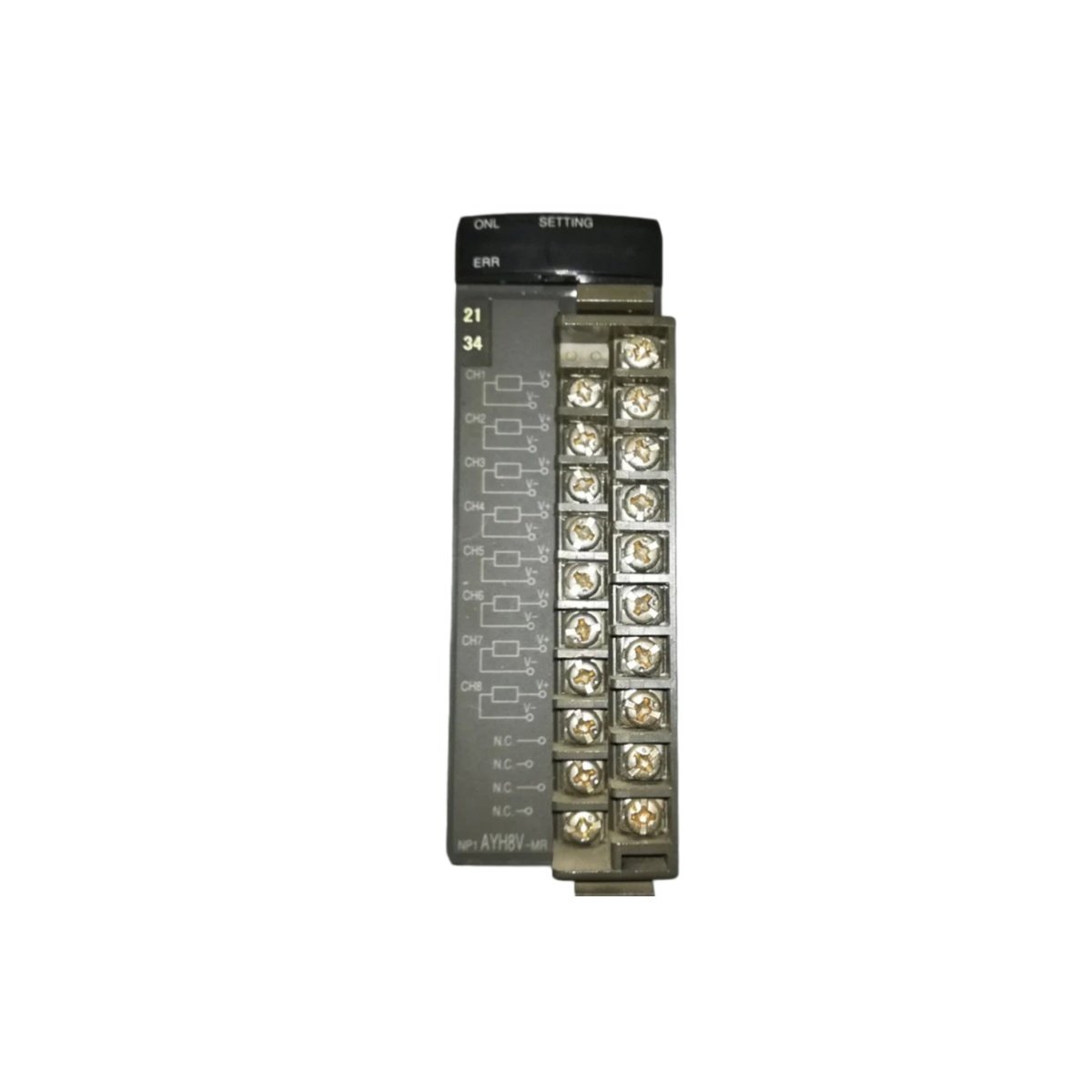

This analog output module converts digital commands into precise analog signals for field devices. It integrates seamlessly into the Fuji Electric SPH series programmable controller platform. The unit drives up to eight independent output channels from a single rack slot. Users can control valves, actuators, and variable-speed drives with exceptional accuracy.

Output Channel Configuration and Signal Ranges

This module features eight isolated analog output channels for flexible system integration. Each channel provides configurable voltage output from 0 V to 10 V or -10 V to +10 V. The resolution reaches 16 bits for fine-grained control signals. Each channel includes short-circuit protection and overcurrent limiting for reliable operation. This high resolution suits demanding process control and precision motion applications.

Signal Conversion and Accuracy Performance

The NP1AYH8VHR-MR achieves exceptional accuracy of ±0.1% at nominal operating temperature. Temperature drift remains below ±25 ppm/°C for stable industrial performance. The module updates all output channels simultaneously within 1 ms for synchronized control. Each channel includes an independent digital-to-analog converter for consistent performance. This individual conversion ensures accurate signal generation across all channels. Furthermore, the unit applies ramping functions to prevent sudden output changes.

Output Protection and Diagnostic Capabilities

This output module integrates comprehensive protection features for each channel. Short-circuit protection limits output current to safe levels during wiring faults. Overcurrent protection automatically reduces voltage during overload conditions. The module also reports diagnostic status back to the PLC for monitoring. Consequently, operators receive immediate alerts for any output-related issues. This visibility enables rapid fault identification and system recovery.

Backplane Communication and Configuration

This module communicates with the SPH CPU through the dedicated backplane bus. It supports both local and remote rack installations for flexible architecture. Users configure output ranges and scaling through the standard programming software. The unit stores configuration parameters in non-volatile memory for automatic reloading. Additionally, each channel allows independent scaling for different actuator requirements. This flexibility accommodates various field devices within a single module.

Energy Consumption and Thermal Management

The module draws 80 mA at 5 V DC from the backplane for internal logic. The unit consumes approximately 100 mA at 24 V DC from the field supply. Total power dissipation remains below 4 W under full operational load. Natural convection cooling maintains safe temperatures across all output channels. Consequently, the operating range spans 0 °C to 55 °C for standard factory environments. Humidity tolerance reaches 10% to 90% without condensation concerns.

Installation and Wiring Simplicity

This module features a removable terminal block for convenient field wiring connections. Installers can pre-wire the connector before inserting it into the rack slot. The unit accepts wire gauges from 0.2 mm² to 1.5 mm² for flexible installation. A locking mechanism secures the module against vibration and shock. Furthermore, the housing carries an IP20 rating for protection against solid objects. This robust design suits chemical processing, water treatment, and material handling applications.
