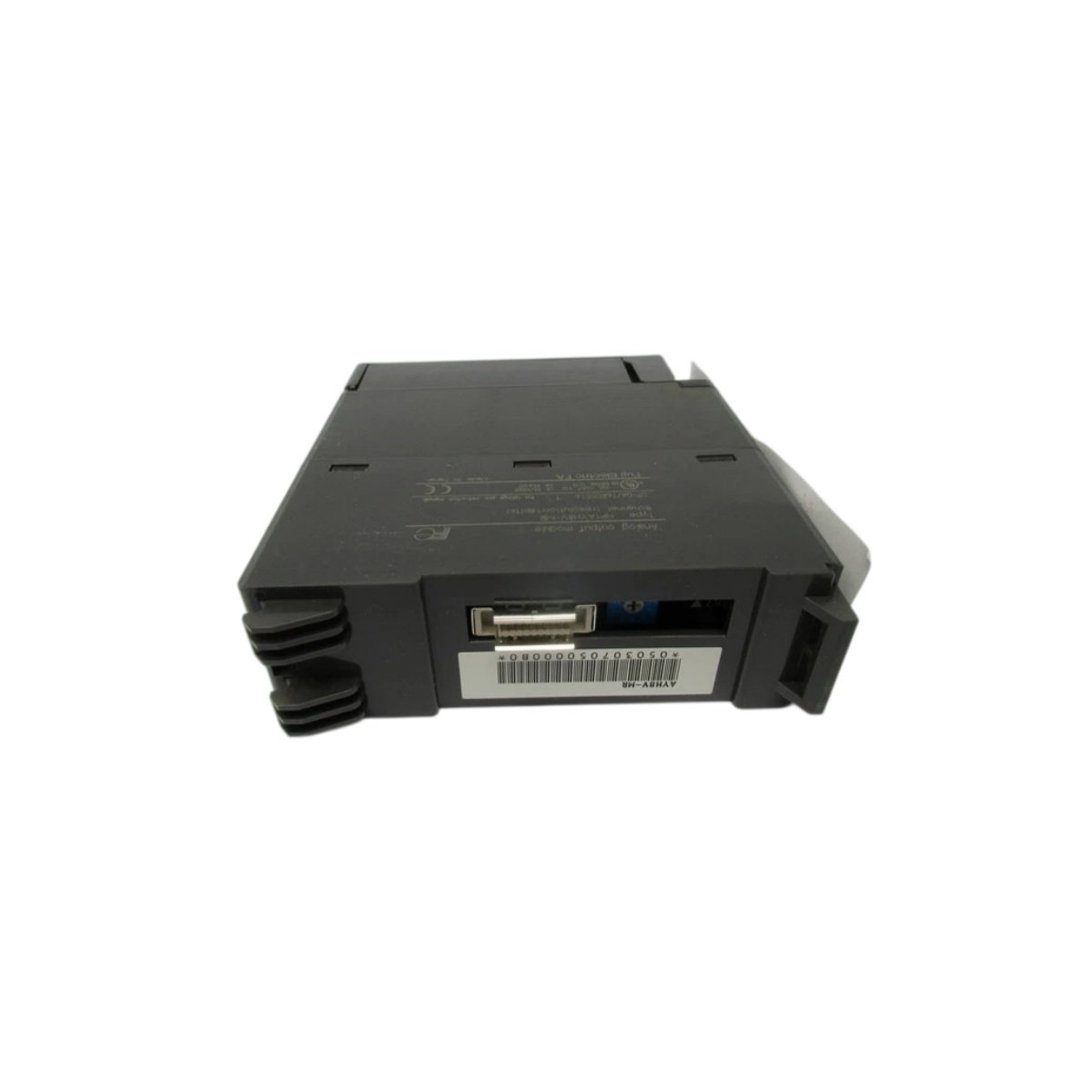

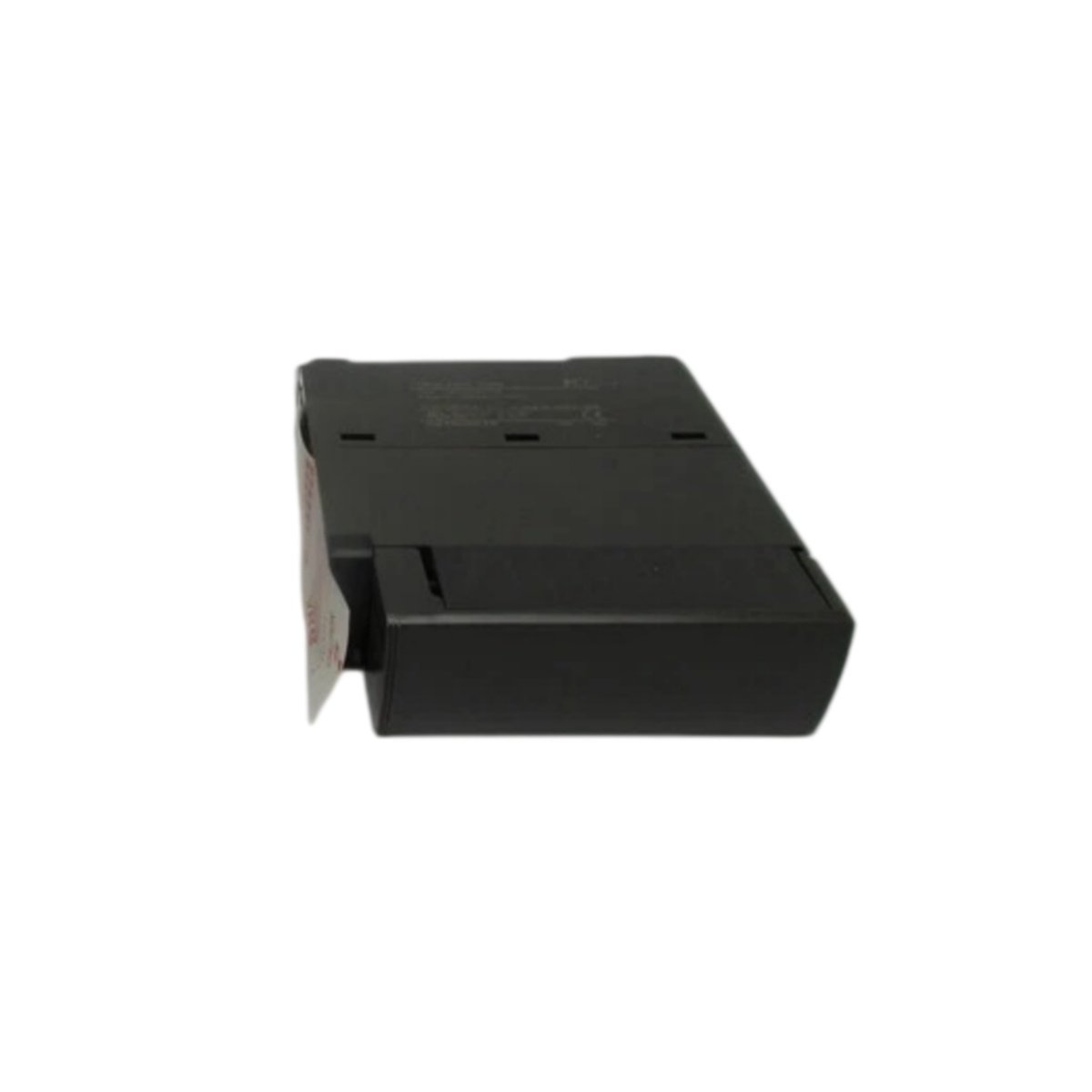

The Fuji NP1AYH8V-MR analog output module generates precise control signals for industrial automation systems. Engineers select this unit for accurate actuator driving across process control environments. Moreover, its compact housing supports straightforward integration into existing PLC racks.
Interface and Connectivity
The module links to the backplane connector for high-speed data exchange. Additionally, it offers eight independent output channels with 12-bit resolution. Each channel delivers voltage signals, therefore covering diverse actuator requirements. Field wiring uses screw-terminal blocks that simplify installation considerably.
Physical Dimensions and Weight
The unit measures 28.6 mm in width, 100 mm in height, and 90 mm in depth. Furthermore, it weighs approximately 150 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.
Component Count and Energy Storage
The NP1AYH8V-MR integrates eight digital-to-analog converter circuits for signal precision. It also contains one filtering capacitor rated at 220 µF for stable output. Therefore, this energy storage element minimizes ripple during rapid load changes. The board carries roughly 140 discrete components for dependable operation.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | NP1AYH8V-MR |
| Category | Analog Output Module |
| Output Channels | 8 |
| Resolution | 12-bit |
| Output Signal | Voltage |
| Dimensions (W×H×D) | 28.6 × 100 × 90 mm |
| Weight | ~150 g |
| Connector Type | Backplane / Screw Terminal |
| Energy Storage | 220 µF Capacitor |
| Operating Temperature | 0°C to 55°C |
Why This Module Suits Industrial Applications
System integrators value the NP1AYH8V-MR for its stable output and simple wiring. Meanwhile, the filtering capacitor protects sensitive actuators from signal noise. As a result, process accuracy improves while maintenance costs decrease.
