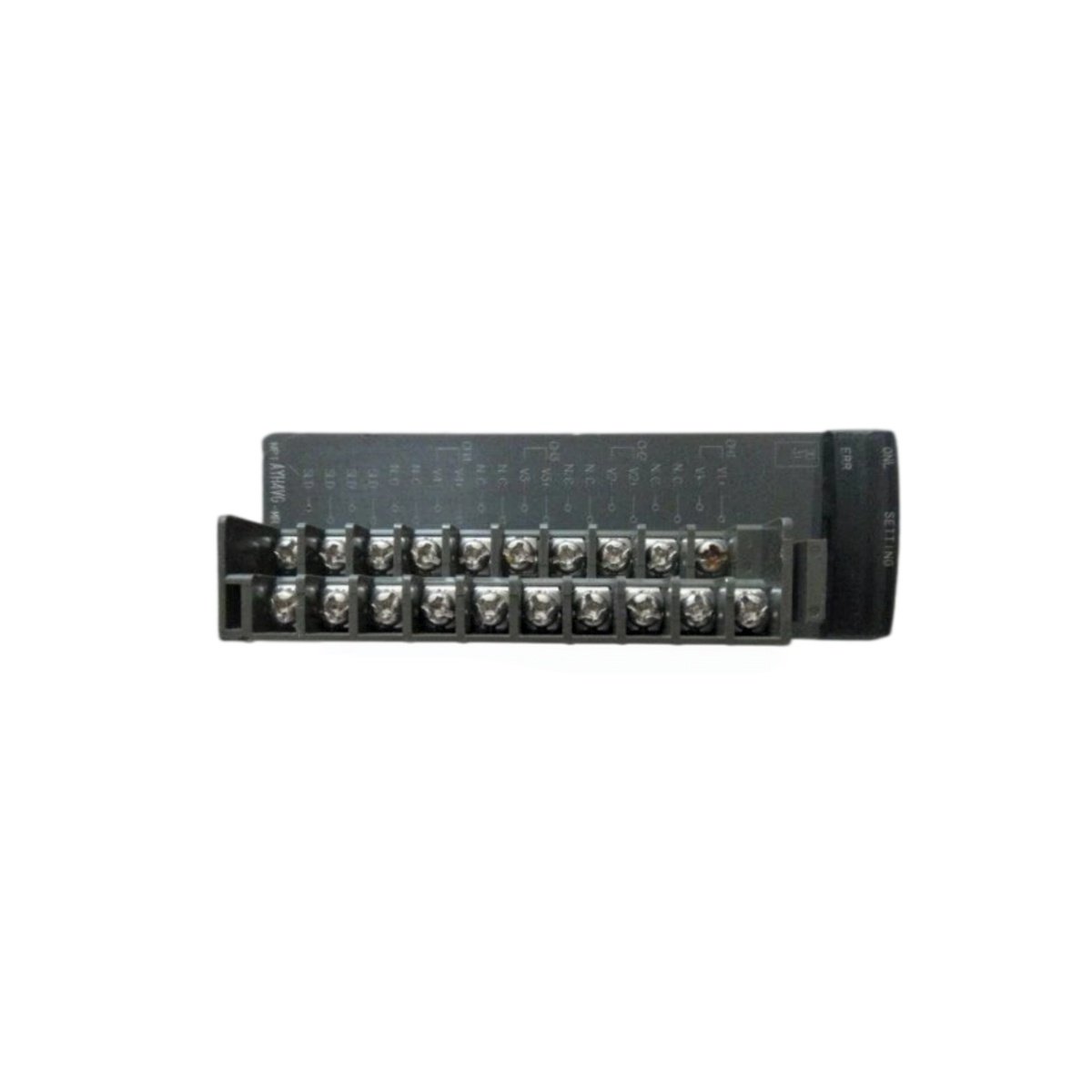

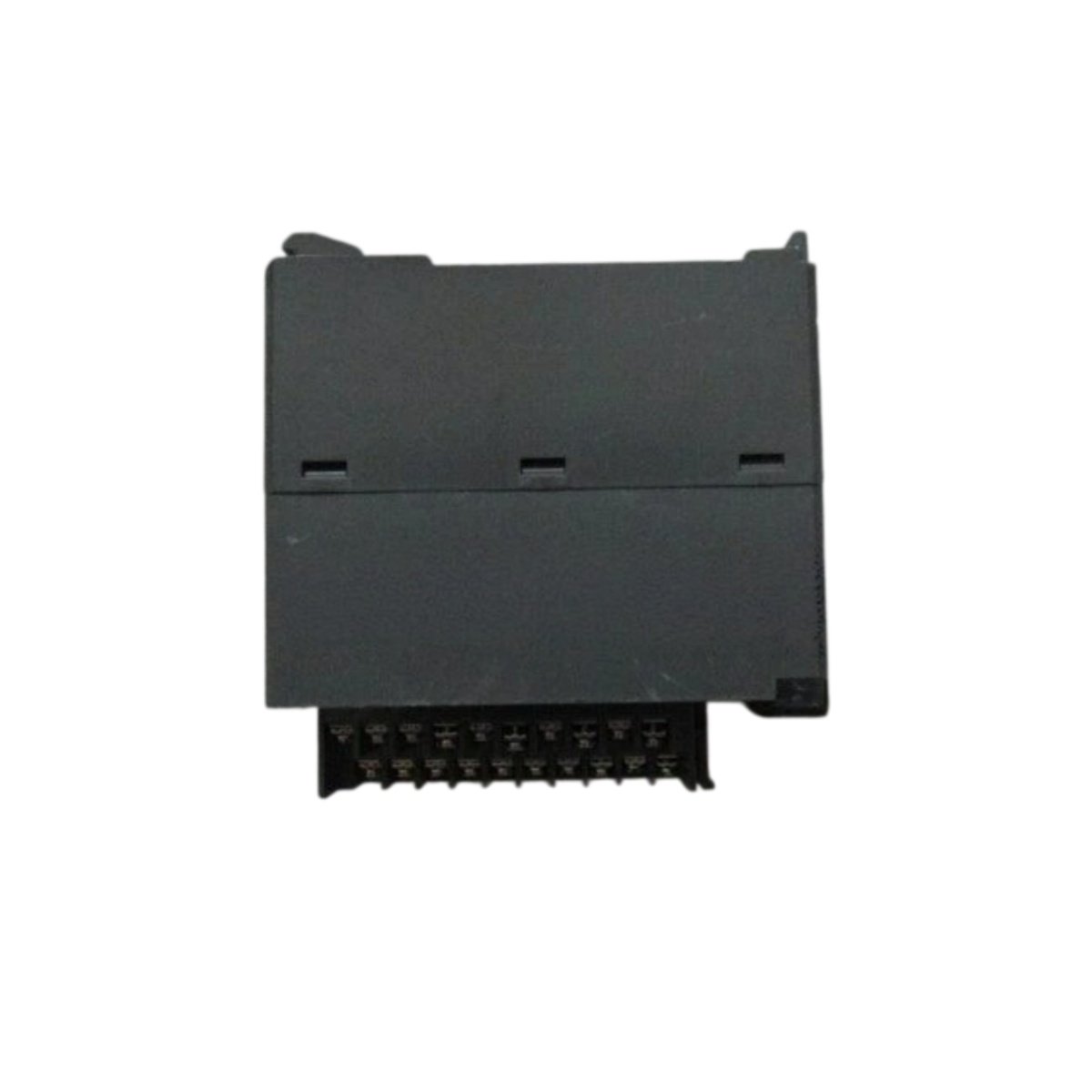

The Fuji NP1AYH4VG-MR analog output module provides precise signal generation for industrial control systems. Engineers rely on this unit for accurate process control across manufacturing environments. Moreover, its compact design supports seamless integration into existing PLC architectures.

Interface and Connectivity

The module communicates through a dedicated backplane connector for fast data transfer. Additionally, it provides four independent output channels with 12-bit resolution. Each channel delivers voltage or current signals, therefore covering diverse actuator requirements. Wiring uses screw-terminal blocks that simplify field installation significantly.

Physical Dimensions and Weight

The unit measures 28.6 mm in width, 100 mm in height, and 90 mm in depth. Furthermore, it weighs approximately 150 grams, which reduces cabinet load. Consequently, technicians mount it easily on standard DIN rails.

Component Count and Energy Storage

The NP1AYH4VG-MR integrates four digital-to-analog converter circuits for signal precision. It also contains one filtering capacitor rated at 220 µF for stable output. Therefore, this energy storage element minimizes ripple during rapid load changes. The board carries roughly 120 discrete components for reliable operation.

Technical Specifications Table

Why This Module Suits Industrial Applications

System integrators value the NP1AYH4VG-MR for its stable output and simple wiring. Meanwhile, the filtering capacitor protects sensitive actuators from signal noise. As a result, process accuracy improves while maintenance costs decrease.
