High-Performance Analog Input for MICREX-SX Systems

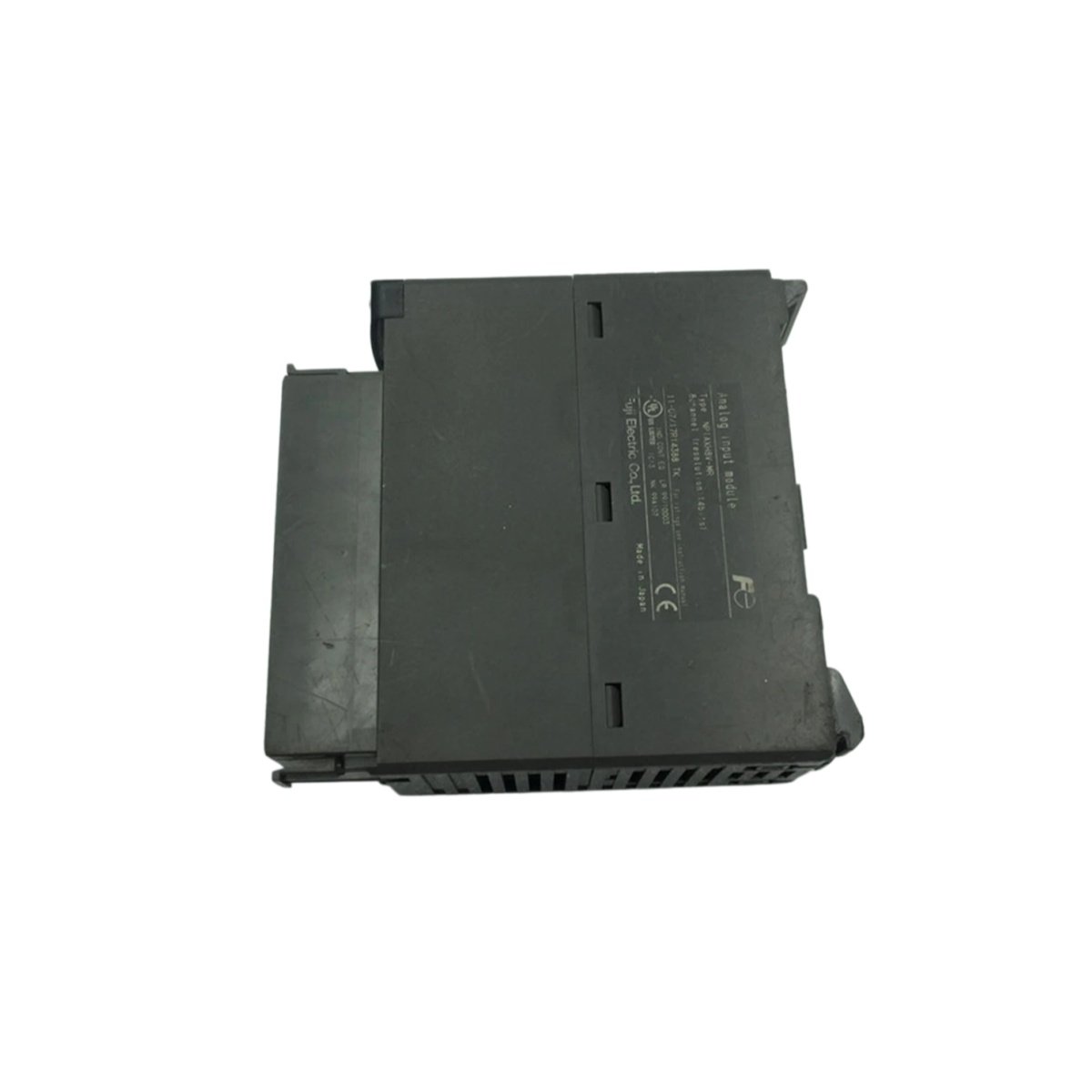

The Fuji NP1AXH8VG-MR functions as a high-performance analog input module for the MICREX-SX SPH series . This module converts analog signals into precise digital data for accurate process monitoring . It features 8 channels with channel-to-channel isolation, ensuring reliable signal integrity in demanding industrial environments . A high-speed A/D converter achieves a conversion speed of just 30 ms for all 8 channels .
Technical Specifications
| Specification | Value |
|---|---|
| Model | NP1AXH8VG-MR |
| Product Type | Channel-to-Channel Isolated Analog Input Module |
| Number of Input Channels | 8 channels |
| Input Types Supported | Voltage, Current, Thermocouple, RTD |
| Input Range | -10 to 10 V, 1 to 5 V, 0 to 5 V, 0 to 10 V |
| Input Impedance | 1 MΩ |
| Resolution | 16 bits |
| Conversion Speed | 30 ms / 8 channels |
| Reference Accuracy | ±0.05% or less (at 18 to 28°C) |
| Isolation | Between channels and between external terminal and internal logic |
| Dielectric Strength | 1000 V AC for 1 minute |
| Insulation Resistance | 10 MΩ or more (500 V DC megger) |
| Internal Current Consumption | 24 V DC 150 mA or less |
| Mass | Approx. 280 g |
| Standards | CE, UL, cUL |
Connectivity and Configuration

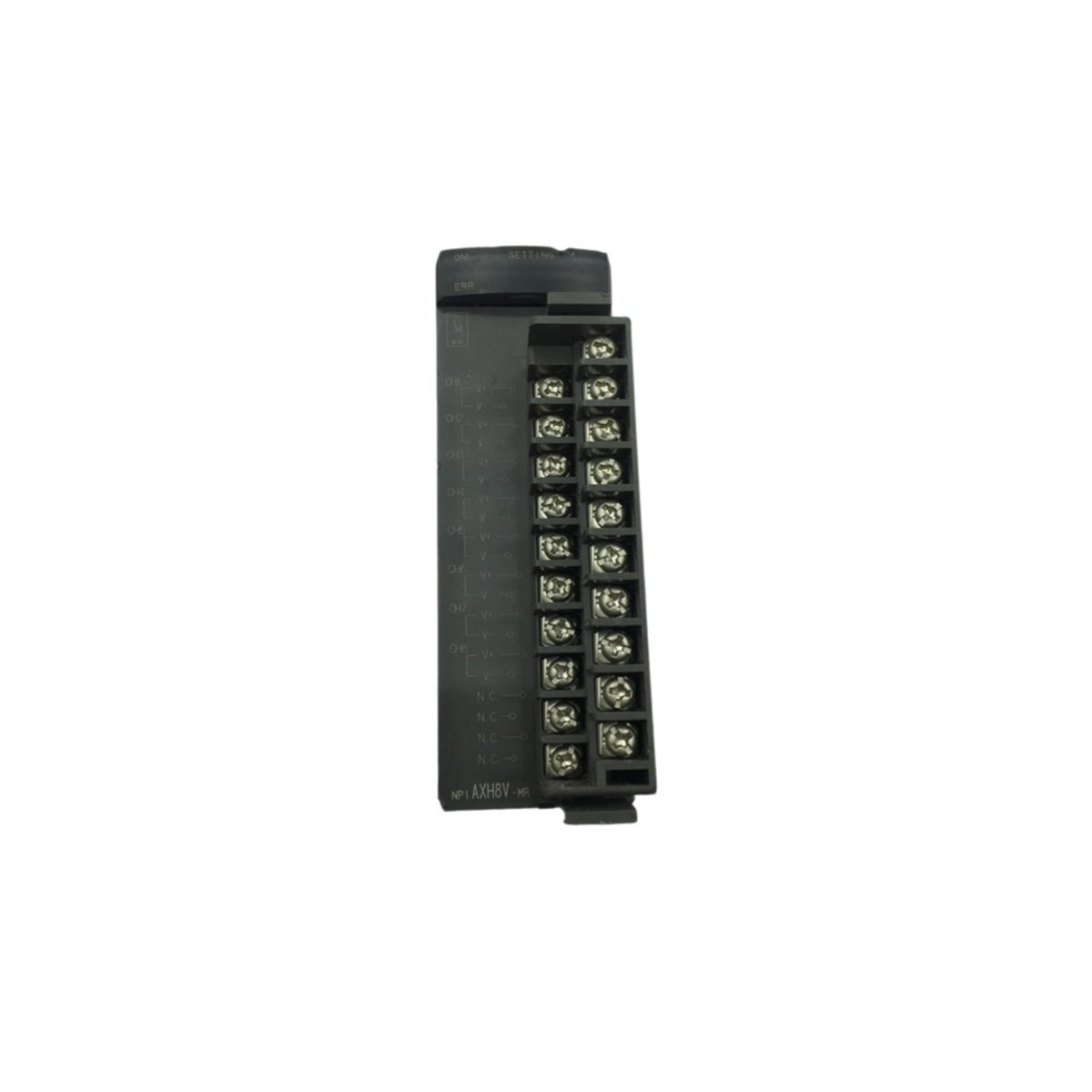

The module connects via a detachable screw terminal block with 20 poles (M3) . It supports AWG#22-18 shielded twisted-pair wiring for optimal noise immunity . LED indicators provide clear visual status: ONL (green), ERR (red), and SETTING (green) . The module also supports a moving average function, configurable via software and switch settings .
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
