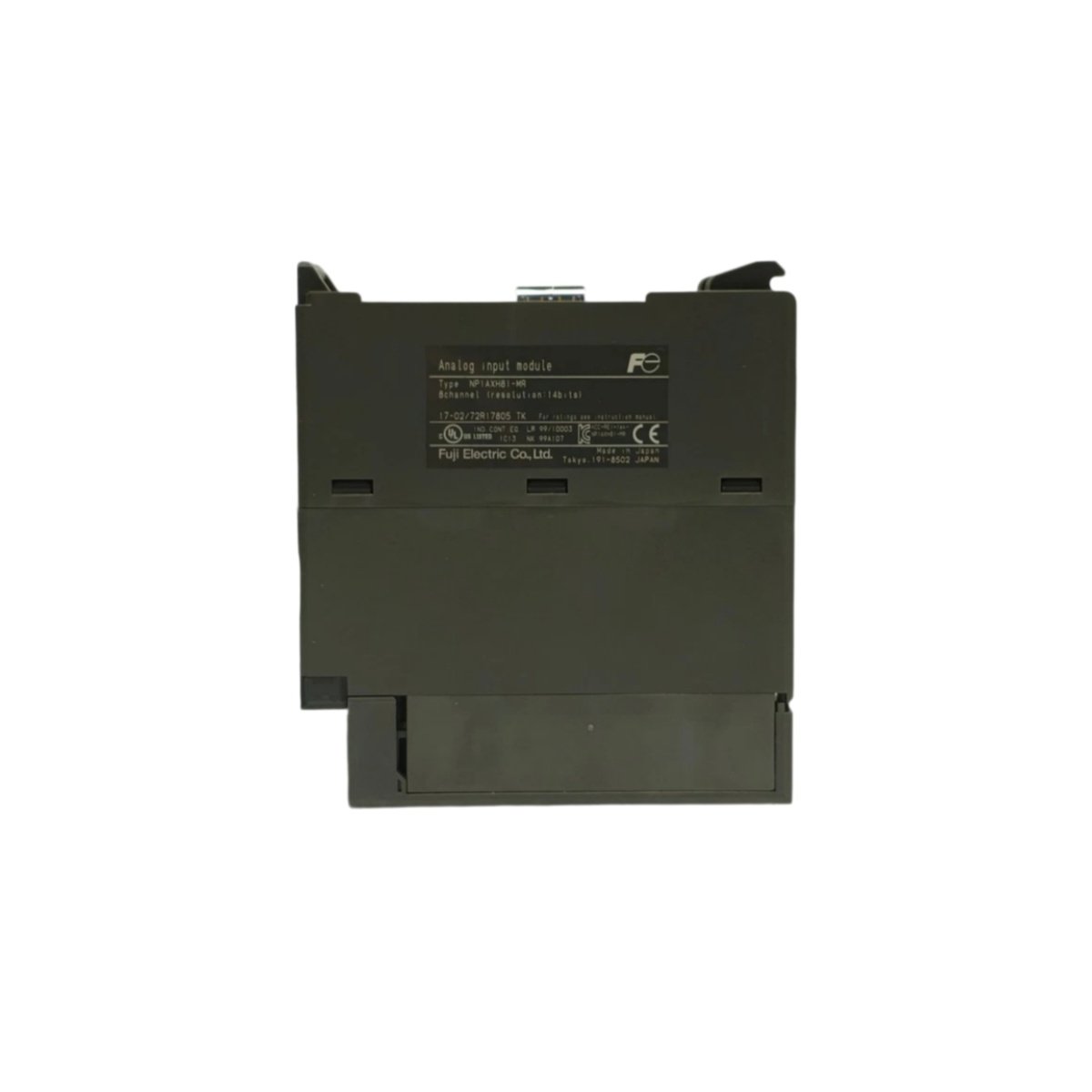

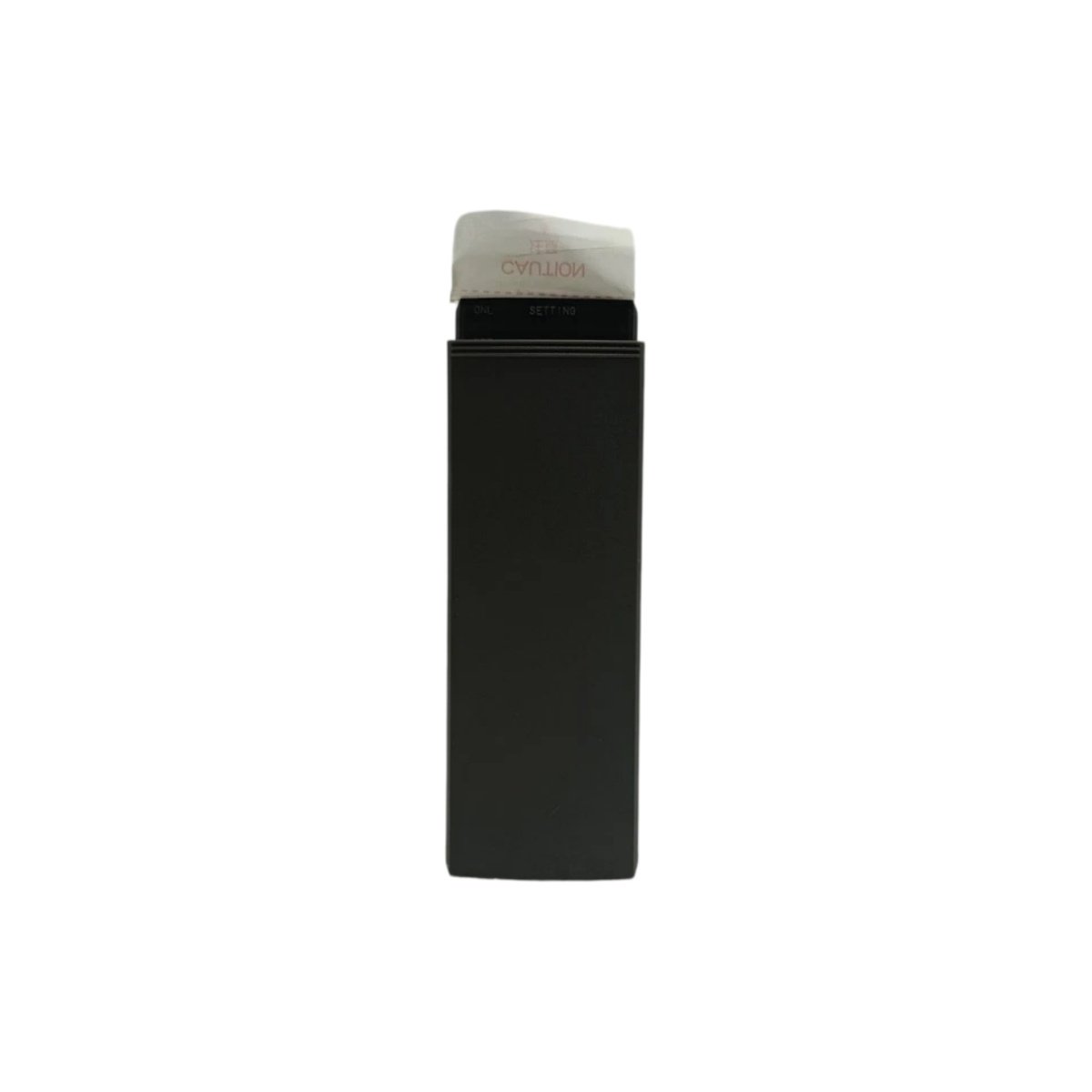

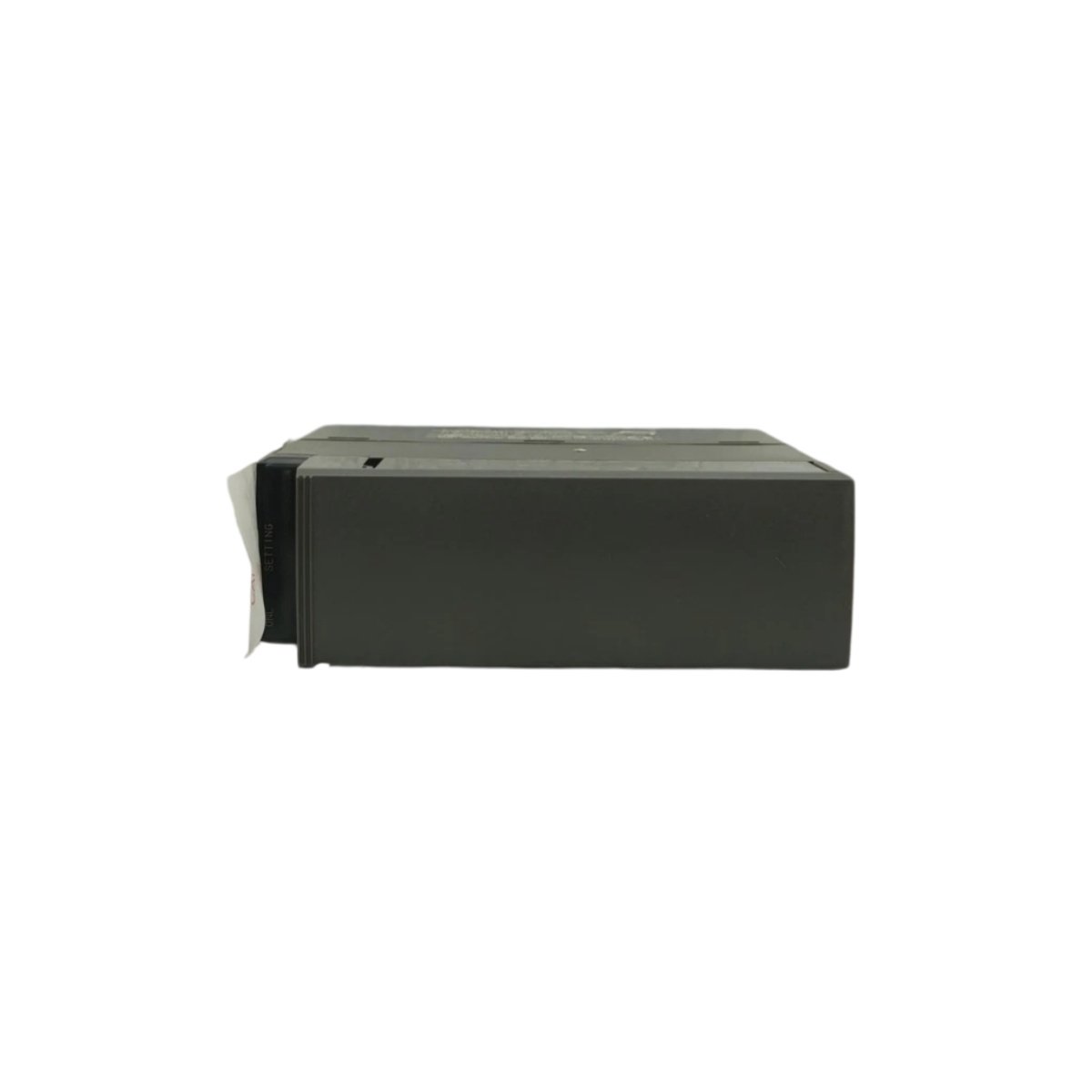

The Fuji NP1AXH8IG-MR captures analog field signals inside Fuji MICREX-SX automation systems. Engineers specify this module when precise measurement must drive process control decisions. Consequently, the unit delivers reliable signal conversion across continuous plant operations.

Physical Dimensions and Weight Data

Cabinet space often limits how technicians arrange analog hardware along the backplane. Therefore, this module keeps a compact profile while preserving full channel density. It weighs roughly 0.3 kg and measures 100 mm in height. Additionally, its width spans 30 mm with a depth of 90 mm.

Interfaces and Connectivity Features

Reliable signal acquisition depends on secure terminations at every input point. The unit provides screw terminals that accept wires up to 1.5 mm². Furthermore, front-panel LEDs let technicians verify channel and fault status instantly. The module mates directly with MICREX-SX backplane connectors without additional adapters.

Component Count and Construction Details

Internal construction shapes both measurement stability and service life. This module carries more than 120 discrete components across its input stages. Moreover, isolation barriers separate field circuits from internal logic. The housing material meets flame-retardant standards for industrial panels.

Key Technical Specifications

Measurement Performance and Compliance

Stable analog sampling directly influences overall control loop precision. The module holds accuracy within ±0.1% across the full signal range. Meanwhile, isolation voltage reaches 1500 VDC between field wiring and internal logic. Diagnostic coverage exceeds 99%, which strengthens fault detection.

Industrial sites also demand strict safety certifications before deployment. The module complies with IEC and UL standards for industrial control equipment. In addition, it meets CE requirements for electromagnetic compatibility. These credentials support dependable operation in harsh plant environments.
