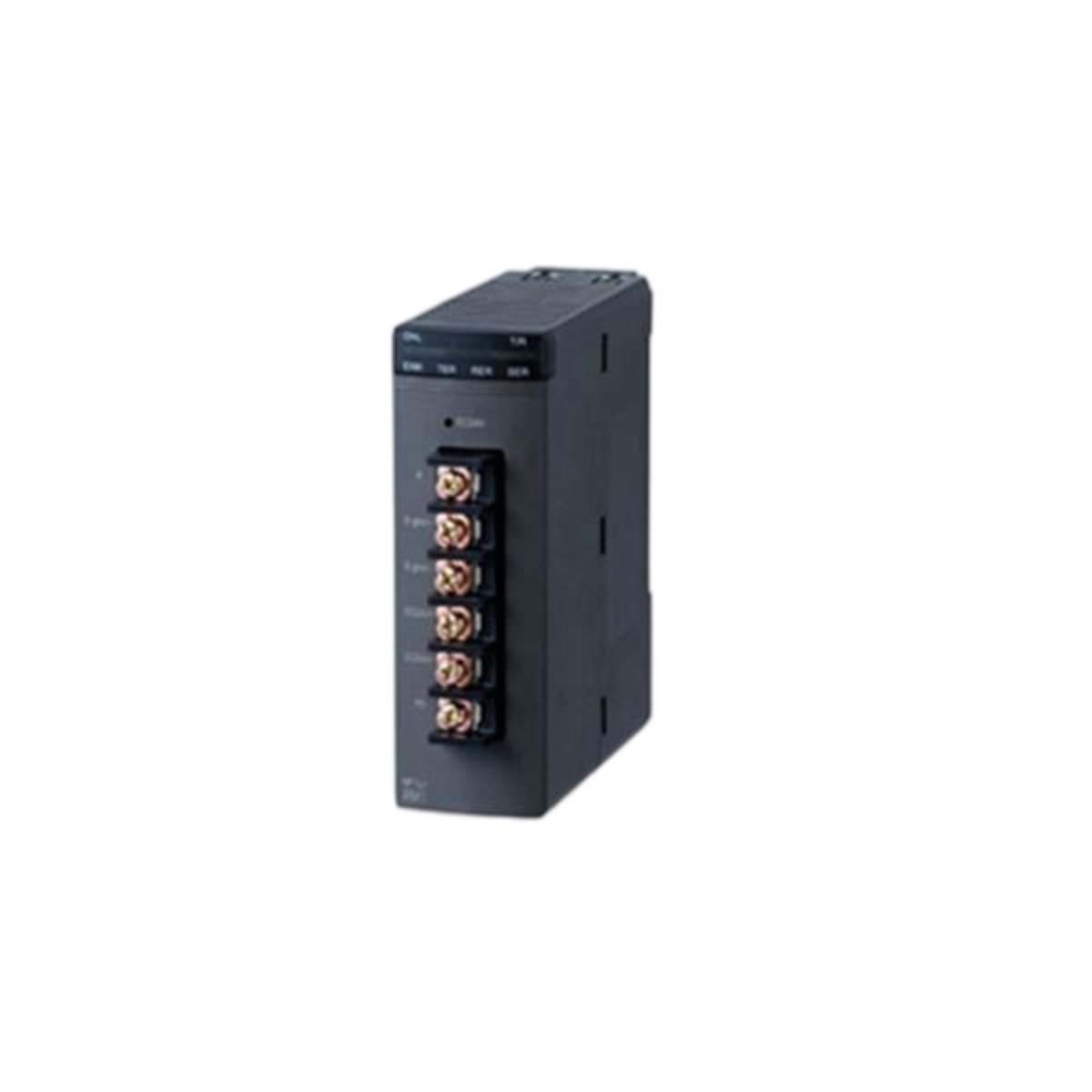

The Fuji NP1AX08I-MR analog input module captures precise field signals for industrial control systems. Engineers select this unit for accurate data acquisition across process automation environments. Moreover, its compact footprint supports straightforward integration into existing PLC racks.

Interface and Connectivity

The module links to the backplane connector for high-speed data exchange. Additionally, it offers eight independent input channels with 12-bit resolution. Each channel accepts voltage or current signals, therefore covering diverse sensor requirements. Field wiring uses screw-terminal blocks that simplify installation considerably.

Physical Dimensions and Weight

The unit measures 28.6 mm in width, 100 mm in height, and 90 mm in depth. Furthermore, it weighs approximately 150 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.

Component Count and Energy Storage

The NP1AX08I-MR integrates eight analog-to-digital converter circuits for signal accuracy. It also contains one filtering capacitor rated at 220 µF for stable readings. Therefore, this energy storage element suppresses ripple during rapid signal changes. The board carries roughly 130 discrete components for dependable operation.

Technical Specifications Table

Why This Module Suits Industrial Applications

System integrators value the NP1AX08I-MR for its stable readings and simple wiring. Meanwhile, the filtering capacitor protects sensitive circuits from signal noise. As a result, measurement accuracy improves while maintenance costs decrease.
