Technical Specifications and Hardware Overview

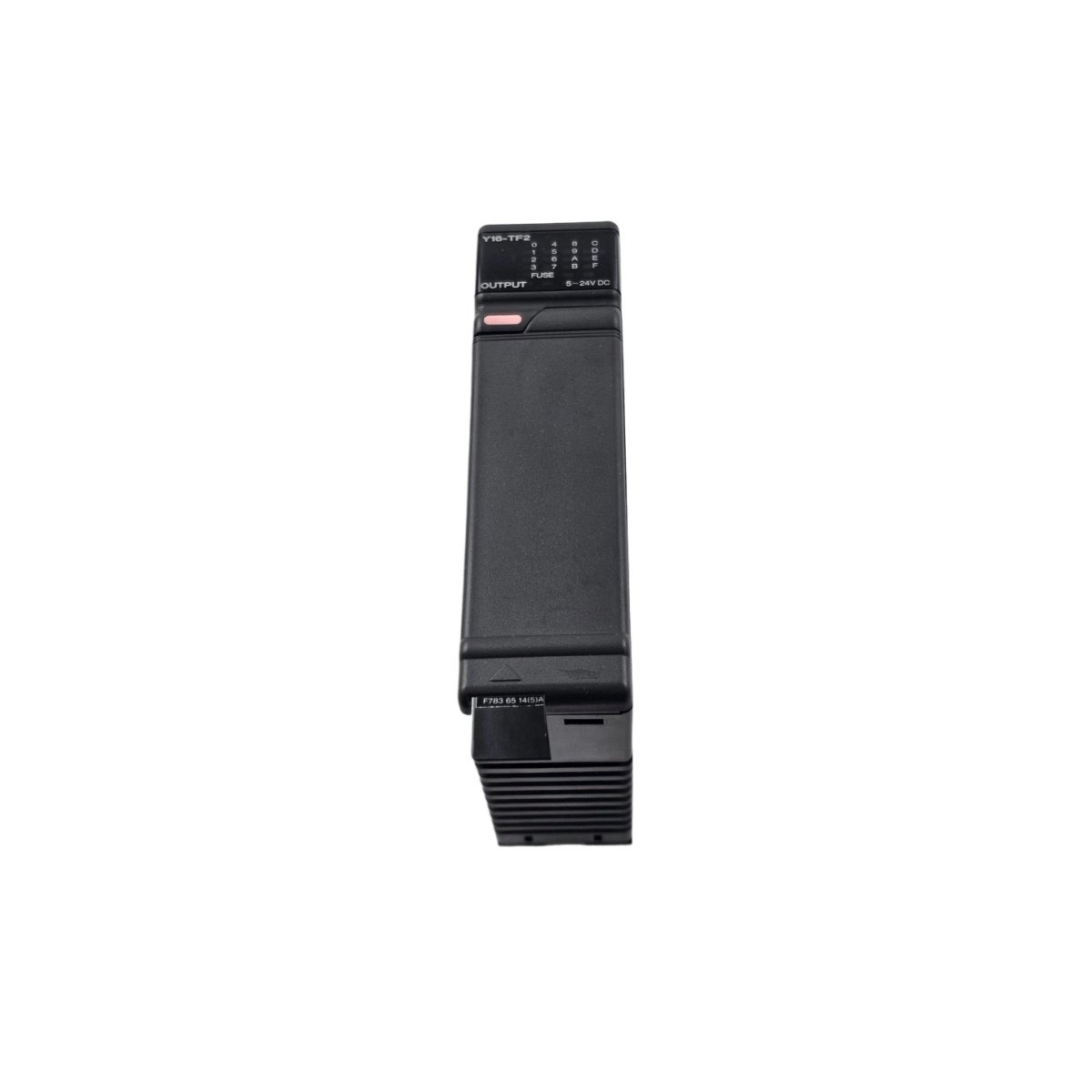

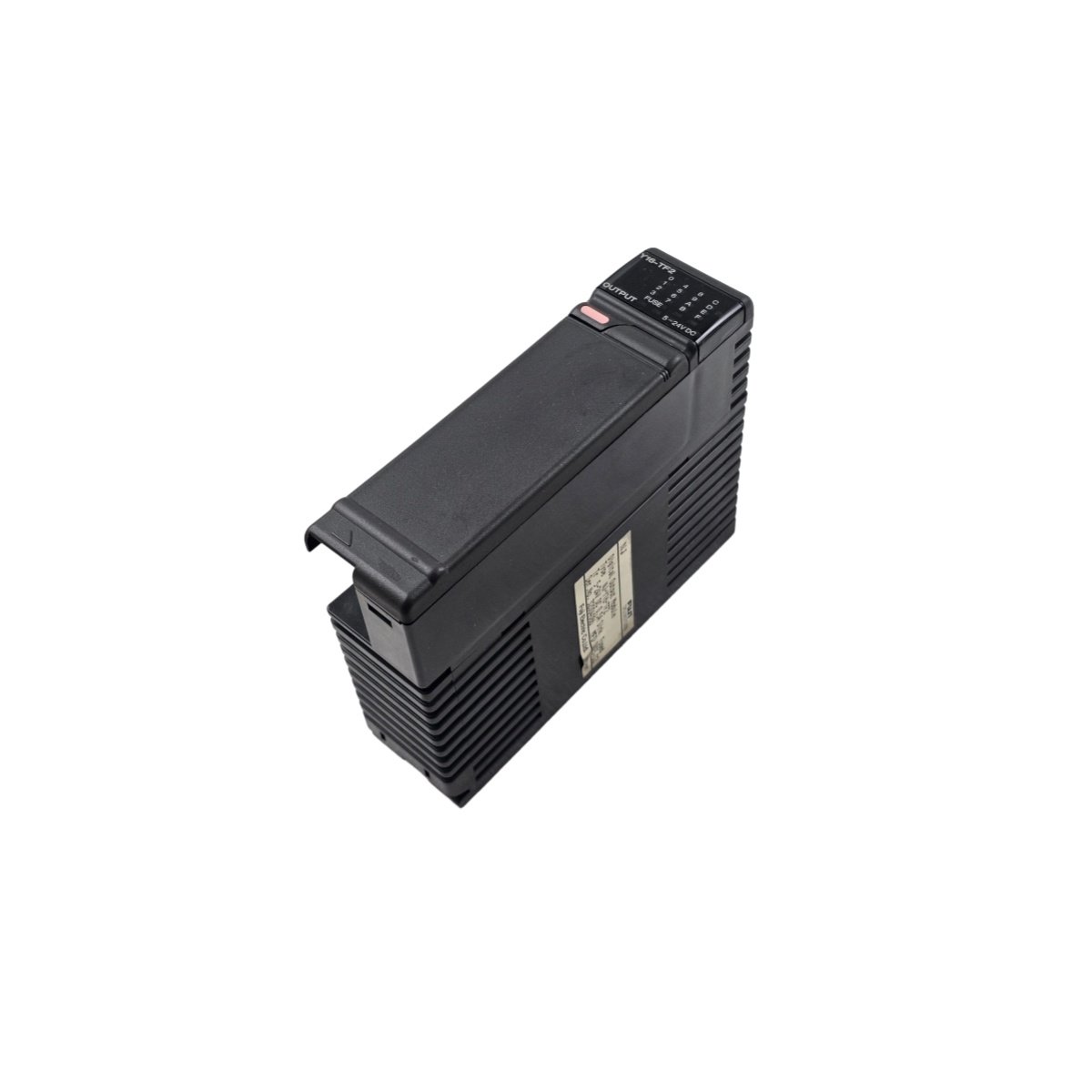

The Fuji NJ-Y16-TF2C8 serves as a digital output module for the MICREX-S series control system. This module measures 130 mm in height, 45 mm in width, and 105 mm in depth for standard DIN rail mounting. It weighs approximately 0.42 kilograms, which enables straightforward handling during installation. The unit draws 0.08 A from a 5 V DC backplane supply for logic operation. It also requires an external 24 V DC supply for field output driving. The module provides 16 digital output channels with transistor switching capabilities.
Each output channel delivers 0.8 A with a total current capacity of 6.4 A per module. The unit includes built-in overcurrent and thermal protection for reliable operation. It provides a typical output response time of 0.2 ms for fast switching applications. The module features optical isolation between internal logic and field outputs. It contains no onboard memory for energy storage applications. The operating temperature range spans -10°C to 55°C for industrial environments. Storage temperatures extend from -20°C to 70°C without causing damage. Humidity tolerance covers 10% to 90% non-condensing conditions for consistent performance.
| Parameter | Specification |
|---|---|
| Brand | Fuji Electric |
| Model | NJ-Y16-TF2C8 |
| Category | Digital Output Module |
| Dimensions (H×W×D) | 130 × 45 × 105 mm |
| Weight | 0.42 kg |
| Backplane Supply | 5 V DC, 0.08 A |
| External Supply | 24 V DC |
| Output Channels | 16 transistor outputs |
| Output Type | NPN transistor |
| Per-channel Current | 0.8 A |
| Total Current Capacity | 6.4 A per module |
| Output Response | 0.2 ms typical |
| Protection | Overcurrent, thermal |
| Isolation | Optical (logic to field) |
| Memory Storage | None (combinational) |
| Operating Temp | -10°C to 55°C |
| Storage Temp | -20°C to 70°C |
| Humidity | 10–90% RH (non-condensing) |
| Certifications | CE, UL, CSA |
Output Driving and Protection Features
This digital module drives solenoid valves, contactors, and pilot lamps directly. It switches 16 output channels with NPN transistor technology for rapid response. The Fuji NJ-Y16-TF2C8 includes overcurrent protection on every output channel. It also incorporates thermal shutdown to prevent overheating in fault conditions. The unit uses optocouplers to provide complete isolation from the control logic. It features LED indicators for real-time monitoring of each active channel. The module handles inductive loads with internal flyback diode suppression.
Installation and Compatibility Details

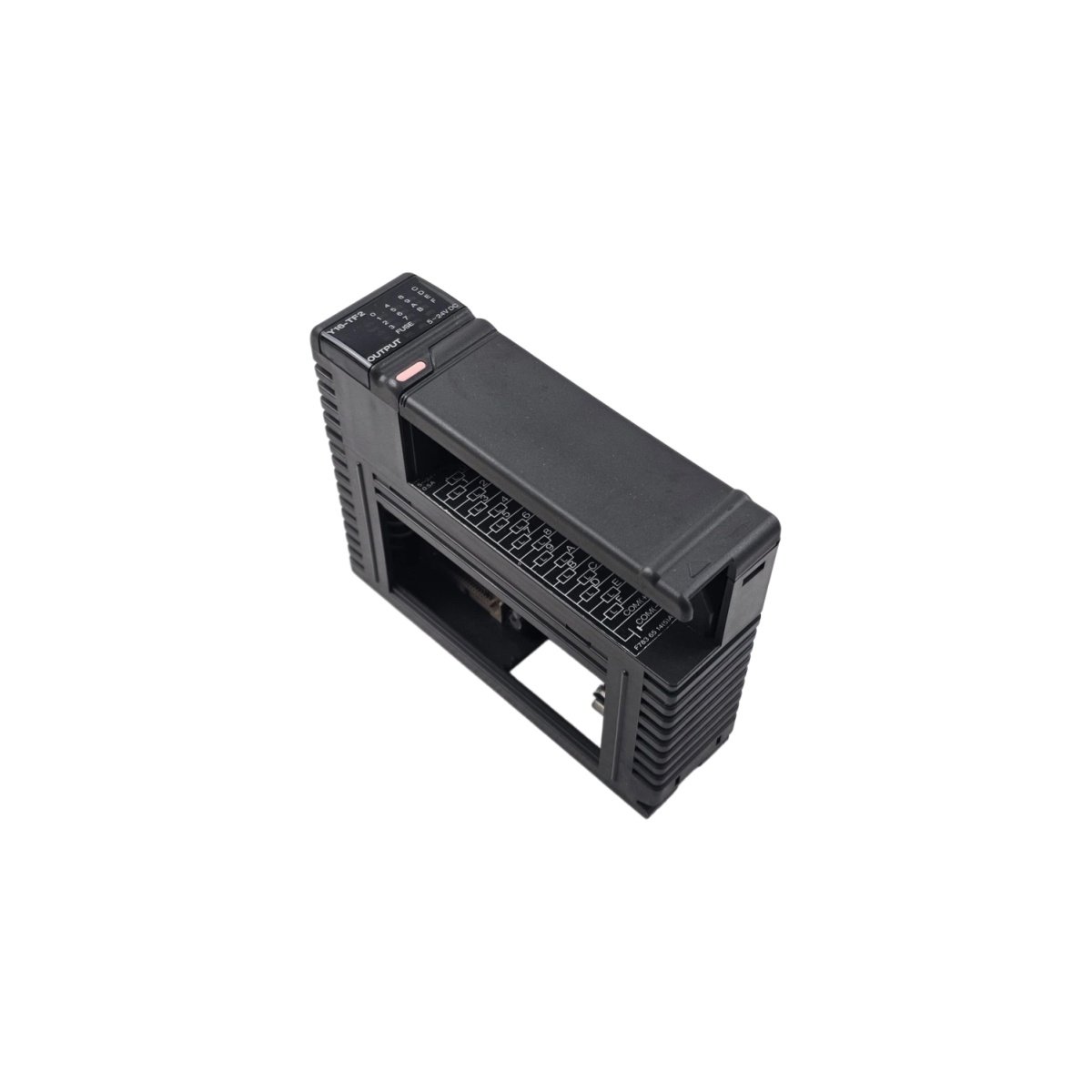

The NJ-Y16-TF2C8 mounts on a standard DIN rail within the MICREX-S system. It occupies a single slot width for straightforward panel integration. The module connects to 16 field devices via a removable terminal block. It maintains compatibility with all MICREX-S CPUs and power supplies. The unit requires no configuration DIP switches or address settings. It delivers reliable performance without periodic recalibration needs.
Details
| Weight | 0.42 kg |
|---|---|
| Dimensions | 130 × 45 × 105 mm |
