Technical Overview of the Output Module

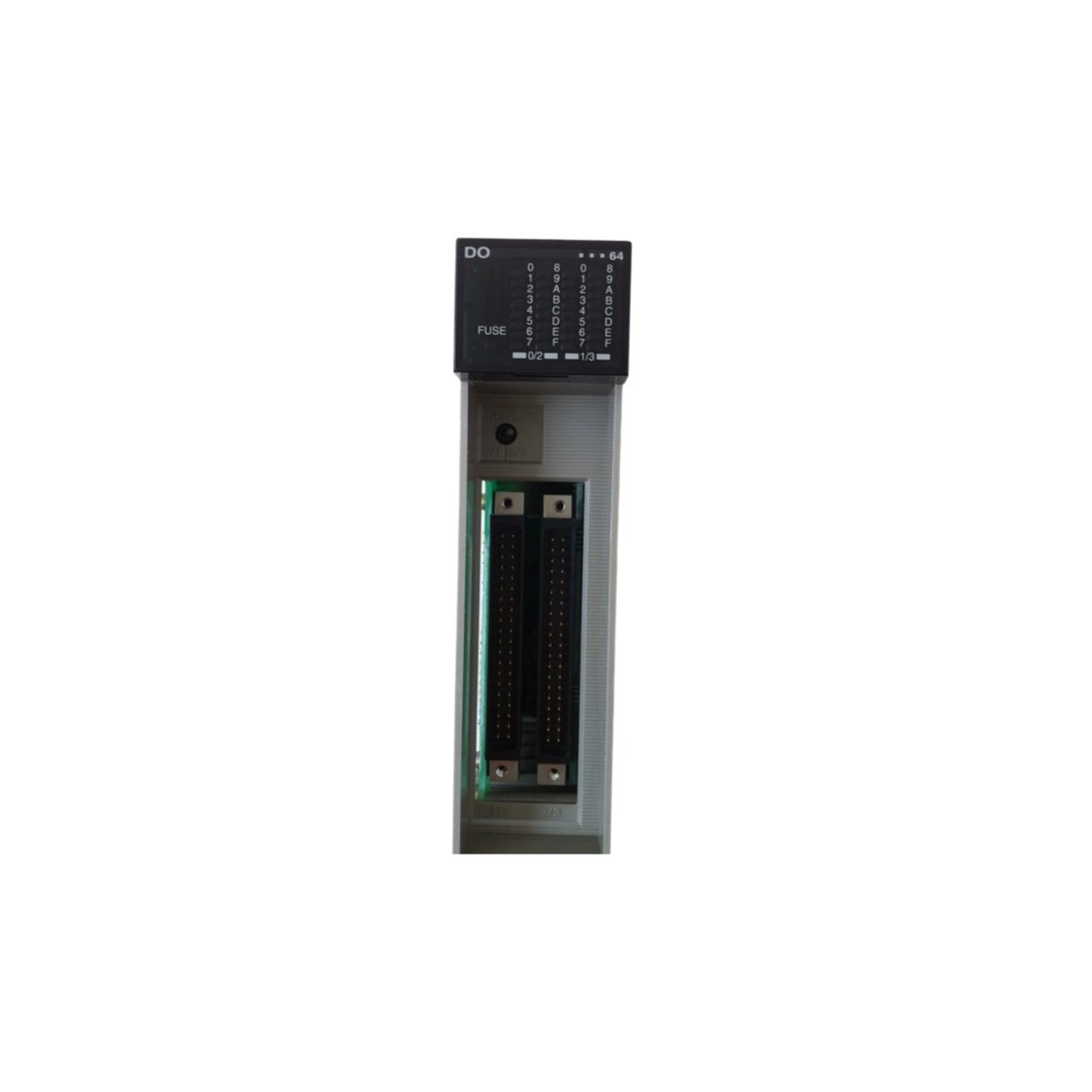

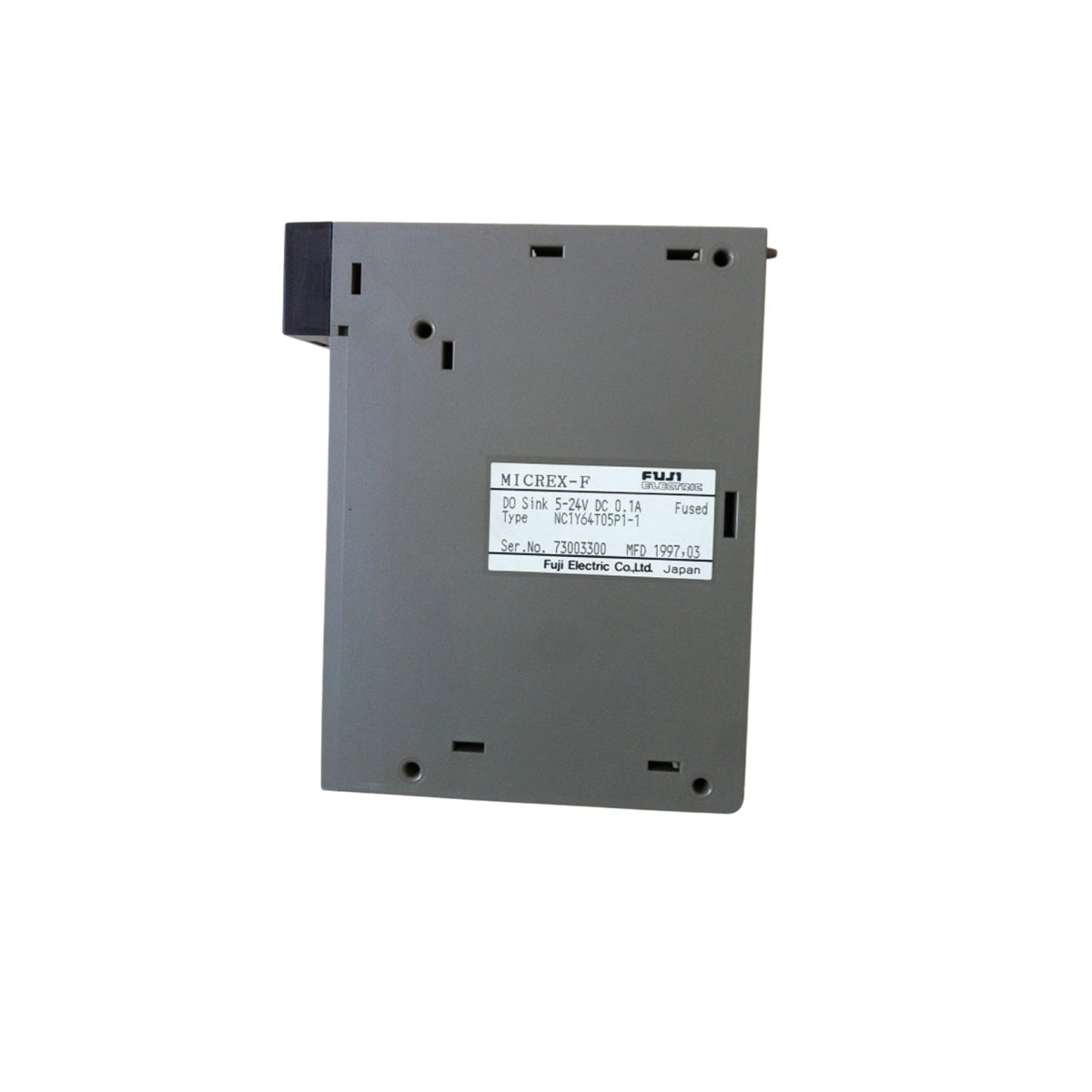

The FUJI NC1Y64T05P1-1 serves as a high-density digital output module for programmable logic controller systems. This component provides 64 independent output channels in a compact form factor for industrial control applications. The module translates control signals from the PLC processor into reliable actuator commands for field devices. Its transistor-based outputs deliver fast switching performance for demanding automation processes.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | FUJI NC1Y64T05P1-1 |
| Category | PLC Digital Output Module |
| Number of Outputs | 64 points (32 points per common terminal) |
| Output Type | Transistor (NPN open collector) |
| Rated Load Voltage | 24 VDC (20.4 – 28.8 VDC range) |
| Maximum Load Current | 0.5 A per point |
| Maximum Inrush Current | 1.0 A (10 ms max) |
| Output Voltage Drop | ≤ 1.5 VDC at rated current |
| OFF-State Leakage Current | ≤ 0.1 mA |
| Switching Response Time | ON: ≤ 1 ms; OFF: ≤ 2 ms |
| Protection Function | Short-circuit protection with auto-restart |
| External Power Supply | 24 VDC (for output drive) |
| Internal Current Consumption | ≤ 120 mA (from PLC backplane) |
| Insulation Method | Photocoupler isolation (between I/O and internal) |
| Number of Common Terminals | 2 (one per 32 output points) |
| Connection Type | 40-pin connector (optional cable assembly) |
| Indicator LEDs | 64 green LEDs for output status |
| Dimensions (W x H x D) | 60 mm x 100 mm x 87 mm (approx.) |
| Weight | Approximately 0.35 kg |
| Protection Rating | IP20 (IEC standard) |
| Ambient Temperature Range | 0 to 55°C (operating); -25 to 75°C (storage) |
| Ambient Humidity Range | 30 to 85% RH (non-condensing) |
Output Performance and Switching Characteristics
This output module supports a rated load voltage of 24 VDC with a maximum current capacity of 0.5 A per channel. The transistor-based outputs respond within 1 ms for turning on and within 2 ms for turning off. Each output channel includes built-in short-circuit protection that automatically restores after fault removal. The module’s low OFF-state leakage current of 0.1 mA ensures minimal power dissipation when outputs remain inactive.
Physical Design and Installation Considerations
The FUJI NC1Y64T05P1-1 features a compact housing with dimensions of 60 mm in width, 100 mm in height, and 87 mm in depth. This slim profile saves valuable space in crowded control cabinets. The module weighs approximately 0.35 kg, making it lightweight for easy handling during installation. Sixty-four green indicator LEDs provide instant visual feedback for each output point’s operational status. The unit connects to field wiring via a 40-pin connector, which simplifies cable management and reduces installation time.
System Integration and Configuration
This output module connects directly to the Fuji PLC backplane for seamless system integration. The module consumes only 120 mA from the backplane power supply, plus the external 24 VDC for output drives. Two common terminals organize the 64 points into two isolated groups of 32 channels each. This grouping allows flexible voltage allocation for different actuator types within the same module. The photocoupler isolation effectively protects the PLC logic side from electrical disturbances on field wiring.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
