Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Digital Output Module |
| Compatibility | Fuji MICREX-F Series PLC |
| Number of Outputs | 16 channels |
| Output Type | Transistor (PNP sourcing) |
| Output Voltage | 24 VDC nominal (20.4 VDC to 28.8 VDC) |
| Output Current per Channel | 0.5 A continuous |
| Total Output Current | 4.0 A maximum per module |
| Output Voltage Drop | 1.5 V maximum at 0.5 A |
| Response Time (ON) | 1 ms typical |
| Response Time (OFF) | 1.5 ms typical |
| Protection | Short-circuit and over-temperature |
| Isolation | Photocoupler (between outputs and logic) |
| Connection Type | 18-point screw terminal block |
| Wire Size | 0.5 mm² to 1.5 mm² |
| Dimensions (H x W x D) | 90 mm x 70 mm x 75 mm |
| Weight | 0.30 kg |
| Power Consumption | 3.5 W typical |
| Current Draw (5 VDC) | 200 mA |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –25 °C to +70 °C |
| Protection Class | IP20 |
| Certifications | CE, UL |
High-Density Output Configuration

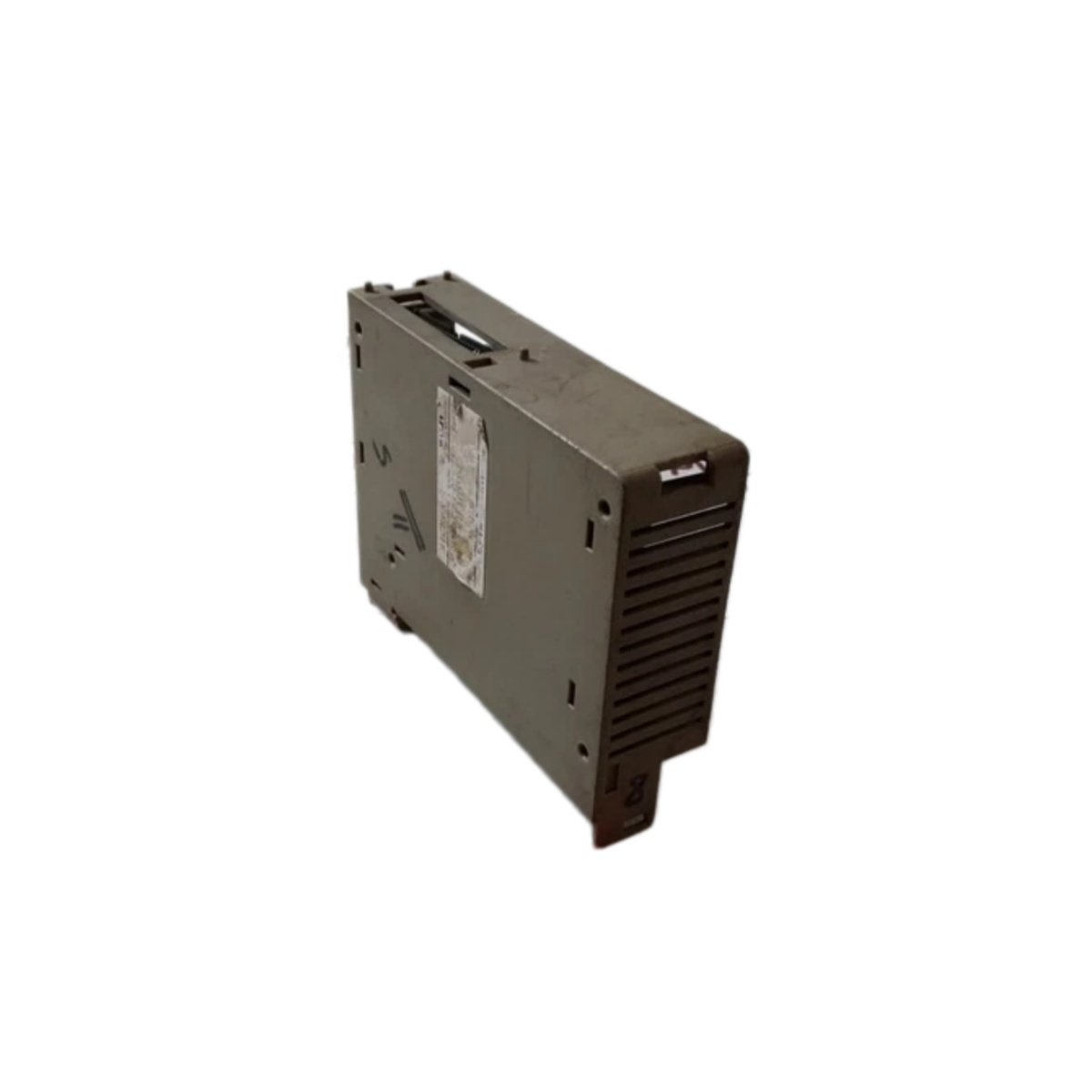

The NC1Y16T05P5-1 digital output module provides 16 high-density transistor outputs for controlling field devices in MICREX-F systems. Each channel sources 0.5 A at 24 VDC, suitable for driving solenoids, contactors, pilot lamps, and small actuators. The module offers a total output current capacity of 4.0 A, allowing simultaneous activation of multiple loads. Furthermore, each output incorporates built-in short-circuit and over-temperature protection, preventing damage from wiring faults or excessive loads.
Fast Switching Performance
This output module delivers rapid switching with typical ON response times of 1 ms and OFF times of 1.5 ms. Such fast performance makes the NC1Y16T05P5-1 ideal for high-speed sequencing, indexing, and pulse control applications. The module maintains consistent switching characteristics across the entire temperature range, ensuring reliable operation in varying ambient conditions.
Isolation and Noise Immunity
Optocoupler isolation separates the output circuits from the internal logic, providing 1500 VAC isolation voltage. This feature effectively prevents electrical noise and transient surges from reaching the PLC backplane. Additionally, the module includes reverse polarity protection on the external power supply input, simplifying installation and reducing wiring errors.
Physical and Wiring Details
Weighing 0.30 kg and measuring 90 mm x 70 mm x 75 mm, the NC1Y16T05P5-1 mounts easily on DIN rails or panel surfaces. The 18-point screw terminal block accepts wire sizes from 0.5 mm² to 1.5 mm², accommodating standard industrial cabling. LED indicators on the front panel display the status of each output channel, enabling rapid visual diagnostics.
Details
| Weight | 0.30 kg |
|---|---|
| Dimensions | 90 × 70 × 75 mm |
