Technical Overview

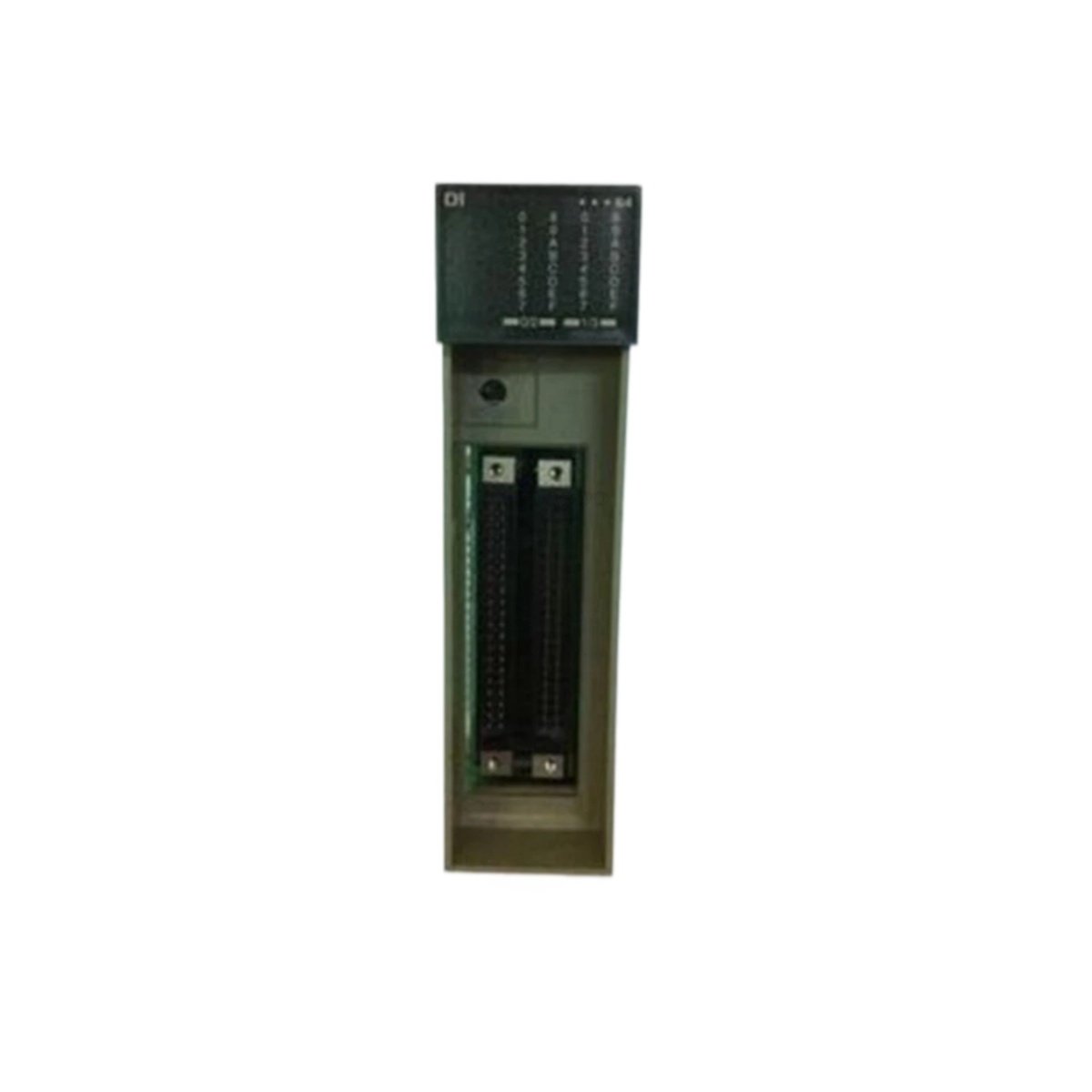

The NC1X6406 digital input module from Fuji Electric provides 16 input channels for industrial control systems. This module accepts DC 24V signals from sensors, pushbuttons, and limit switches. It features a compact design for efficient use of panel space. The module delivers reliable performance in demanding industrial environments.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Fuji Electric |
| Model Number | NC1X6406 |
| Product Type | Digital Input Module |
| Number of Inputs | 16 channels |
| Input Voltage | DC 24V |
| Input Type | Sink input |
| Input Delay | 10ms |
| Signal Type | (two-way) |
| Power Supply | 24V DC ±10% |
| Current Consumption | 100 mA max |
| Dimensions (W x H x D) | 120mm x 80mm x 60mm |
| Approx. Weight | 300g |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to 60°C |
Input Processing and Signal Handling
The NC1X6406 processes signals from 16 independent input channels simultaneously. Each channel accepts standard DC 24V signals from a wide range of field devices. The 10ms input delay ensures reliable signal detection in most industrial applications
System Integration and Connectivity
This input module connects to Fuji Electric PLC systems via the backplane bus. The modular design allows for easy installation in control cabinets. The IP20 rating protects the module’s internal circuitry from solid objects larger than 12mm .
Industrial Applications
The NC1X6406 suits a wide range of digital input applications. It accepts signals from proximity sensors, limit switches, and pushbuttons. Typical applications include conveyor systems, packaging machines, and material handling equipment.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
