Technical Overview of the NC1X3204 Module
The NC1X3204 functions as a digital input module within the Fuji MICREX-F series. This unit captures field signals and transmits them to the PLC processor. Engineers frequently deploy it in legacy installations requiring reliable signal acquisition.

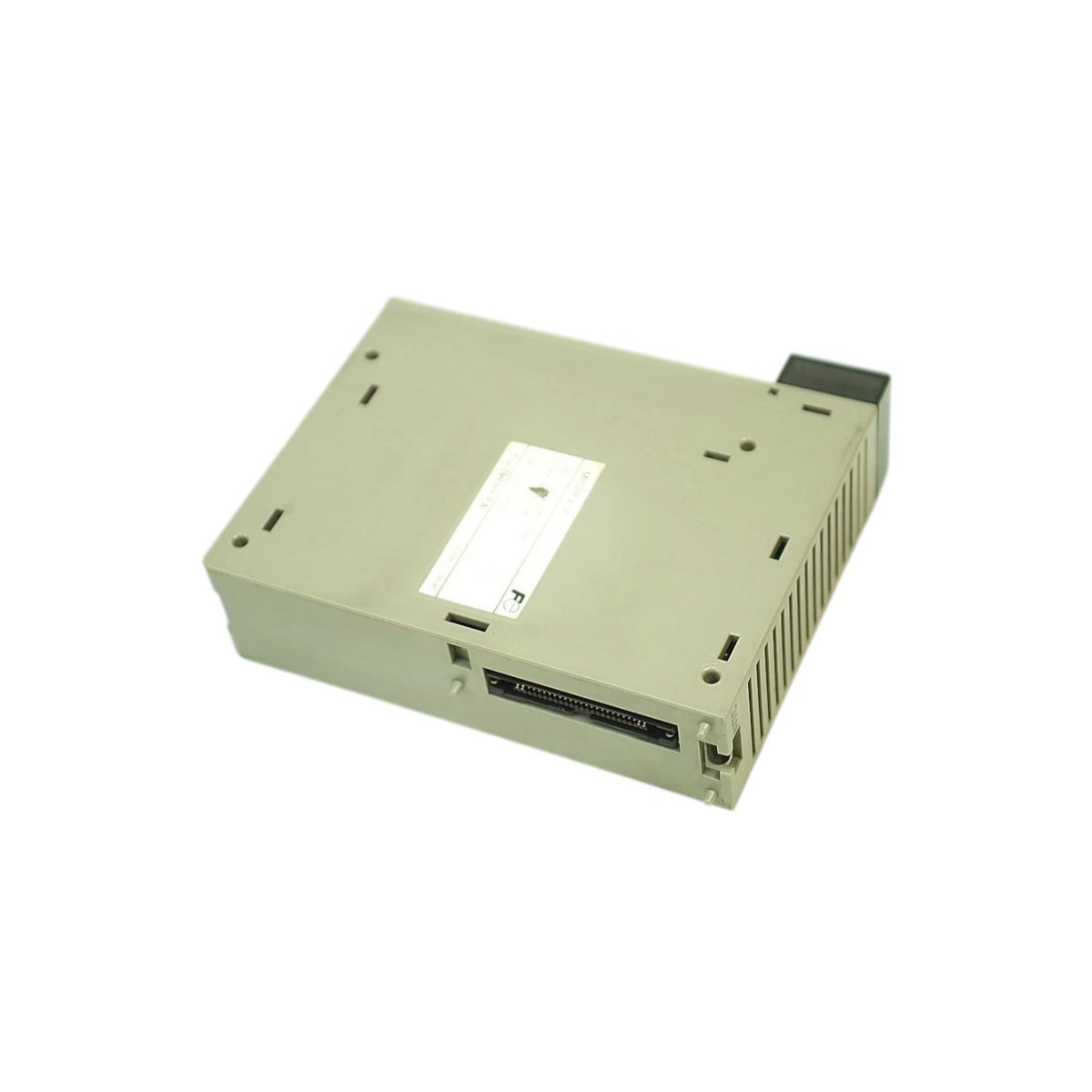

Dimensional and Physical Characteristics
The module occupies a compact footprint suitable for dense panel layouts. Consequently, technicians can install multiple units within limited enclosure space.
| Parameter | Specification |
|---|---|
| Width | 90 mm |
| Height | 70 mm |
| Depth | 55 mm |
| Weight | Approximately 180 g |
Electrical and Interface Specifications
The NC1X3204 accepts DC 12/24V input signals across 32 points. Therefore, it handles moderate I/O density without requiring expansion racks. The sourcing input configuration suits positive logic applications.
| Parameter | Specification |
|---|---|
| Input Points | 32 |
| Rated Voltage | DC 12/24V (Sourcing) |
| Input Current | 2/4 mA |
| Response Time | 10 ms |
| External Connection | Connector type |
Component Architecture and Energy Storage

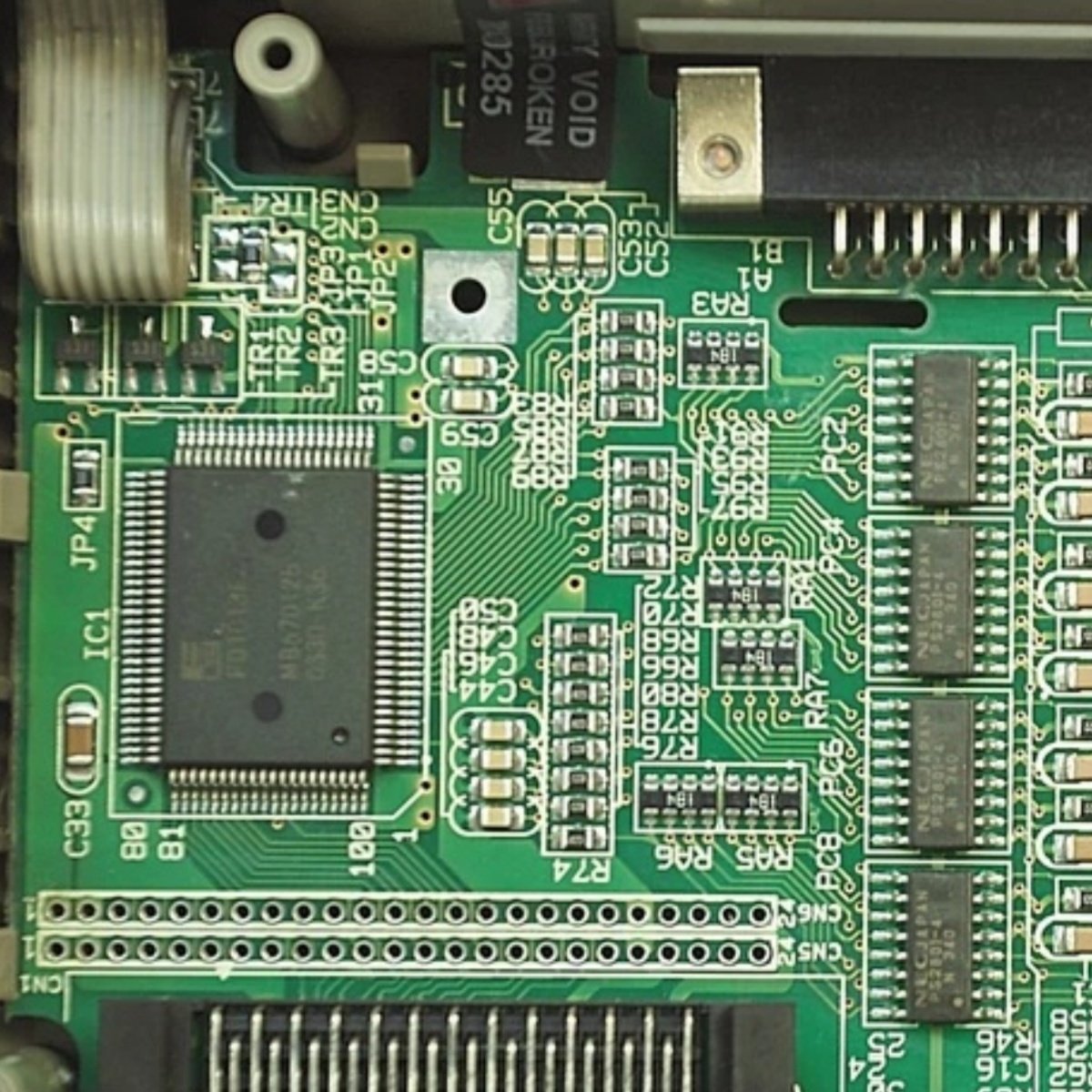

A single main PCB carries the input circuitry and signal conditioning components. The NC1X3204 incorporates small capacitors for input filtering and noise suppression. This design maintains signal integrity in electrically noisy environments.
Practical Integration Notes

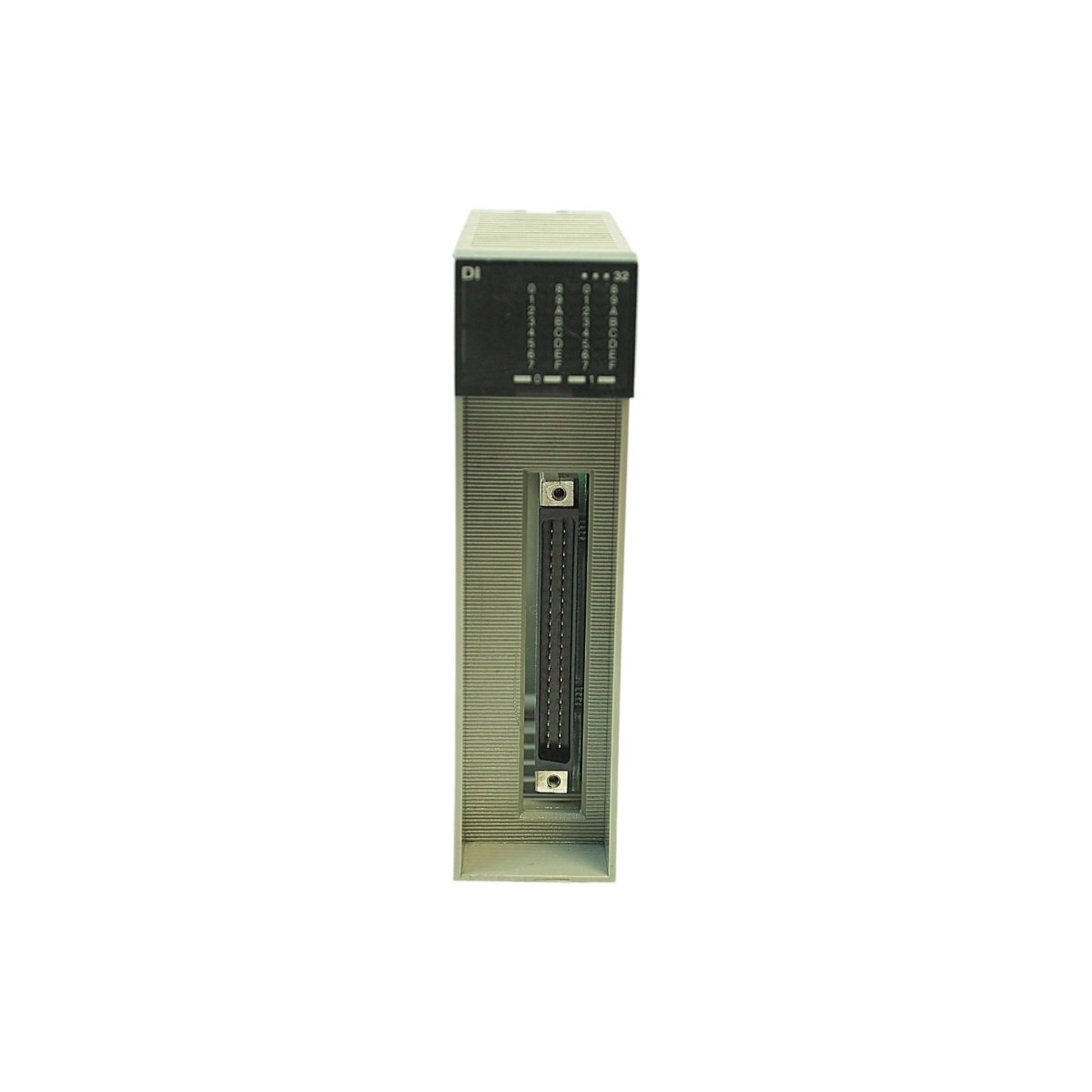

The connector interface allows straightforward wiring and replacement. Additionally, the module belongs to the MICREX-F family, which Fuji Electric has transitioned toward MICREX-SX alternatives. For modernization projects, the NP1X3206-W serves as a potential replacement path.
Details
| Weight | 0.26 kg |
|---|---|
| Dimensions | 110 × 52 × 37 mm |
