Technical Specifications

Reliable Power Delivery

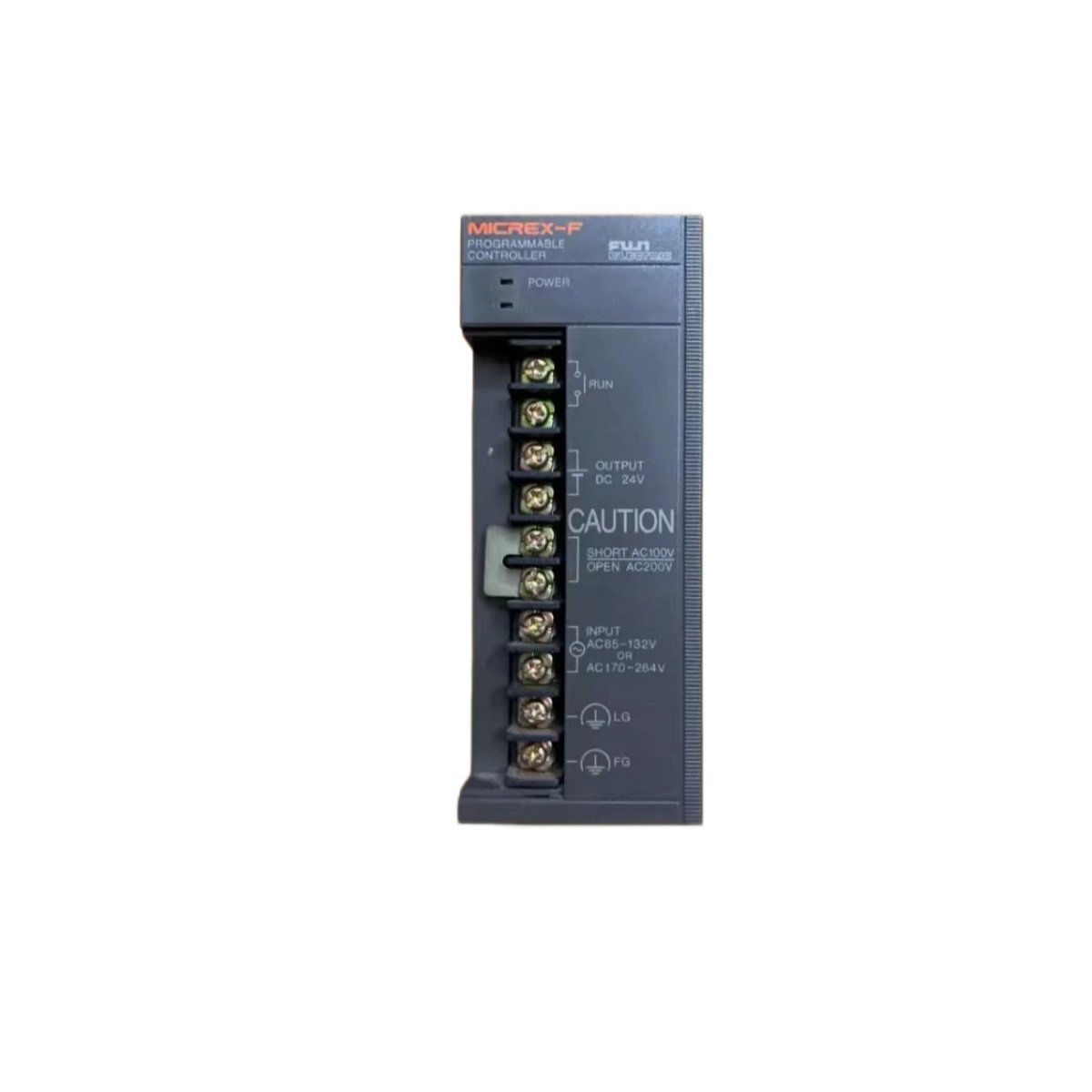

The NC1S-1 power supply module provides stable DC power to MICREX-F PLC racks and connected I/O modules. This unit accepts a wide input range from 100 VAC to 240 VAC, making it suitable for global installations. It delivers 5 VDC at 3 A for logic circuits and 24 VDC at 0.5 A for field devices, totaling 18 W of output power. The module includes comprehensive protection features, including overcurrent, overvoltage, and short-circuit protection.

Energy Storage and Ride-Through

This power supply incorporates internal capacitance that ensures a minimum 20 ms hold-up time during momentary input voltage dips. This energy storage allows the PLC system to ride through short power interruptions without resetting or losing operational states. Consequently, this feature is essential for processes where brief outages could cause production disruptions.

Physical and Environmental Attributes

Weighing 0.35 kg and measuring 90 mm x 50 mm x 75 mm, the NC1S-1 has a compact form factor for space-constrained panels. Its robust IP20 housing protects internal power components from accidental contact and solid contaminants. The module operates efficiently across a temperature range from 0 °C to 55 °C, while its 82 % efficiency rating minimizes wasted energy and reduces cabinet heat buildup.

Installation and Configuration

Mount this power supply in the dedicated slot of any MICREX-F rack to ensure proper backplane power distribution. Connect the AC input wires to the removable terminal block, observing correct polarity for safe operation. The module automatically regulates output voltages upon power application, requiring no manual adjustments or configuration settings. Users should verify total system current draw does not exceed the 5 VDC, 3 A capacity, as overloading may trigger built-in overcurrent protection.
