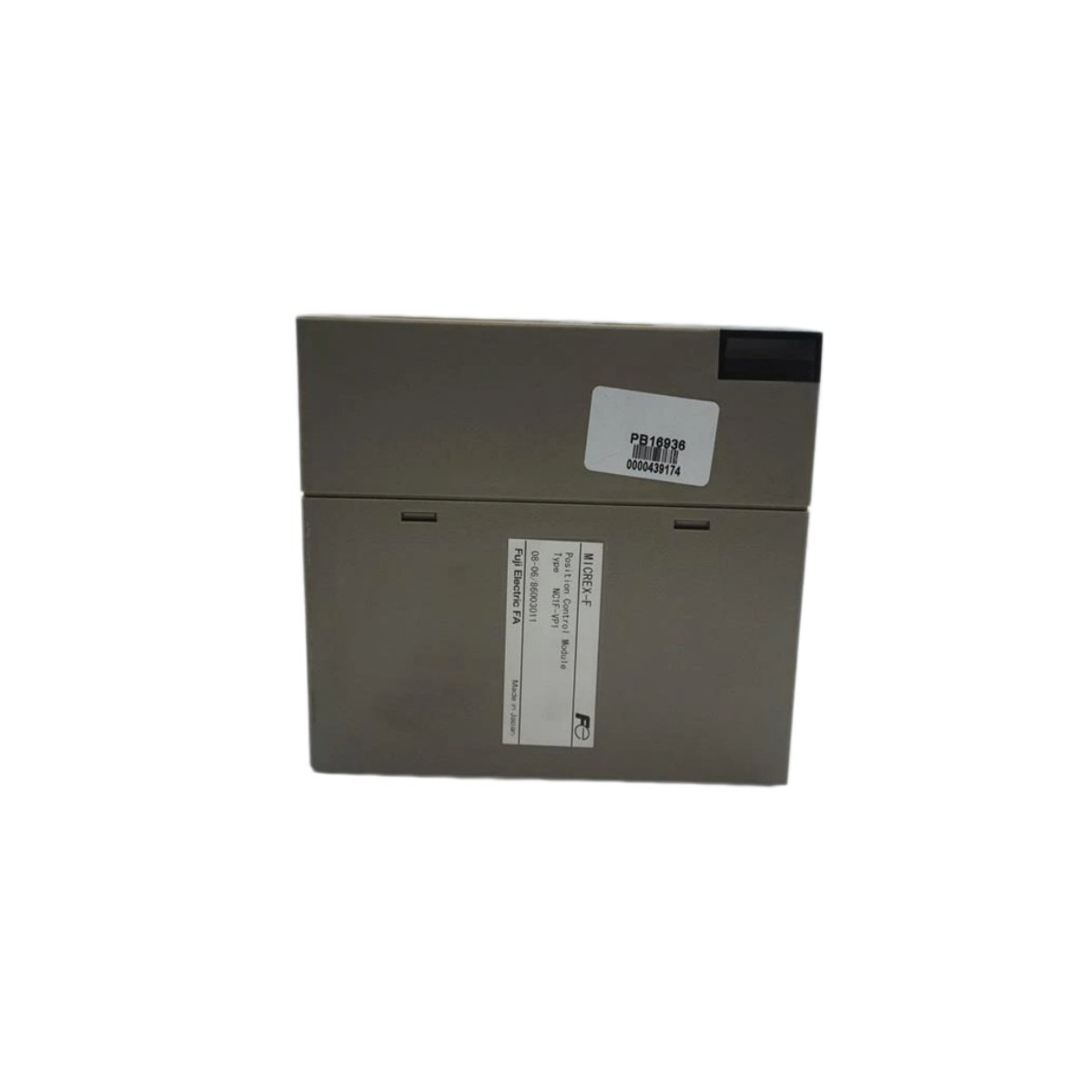

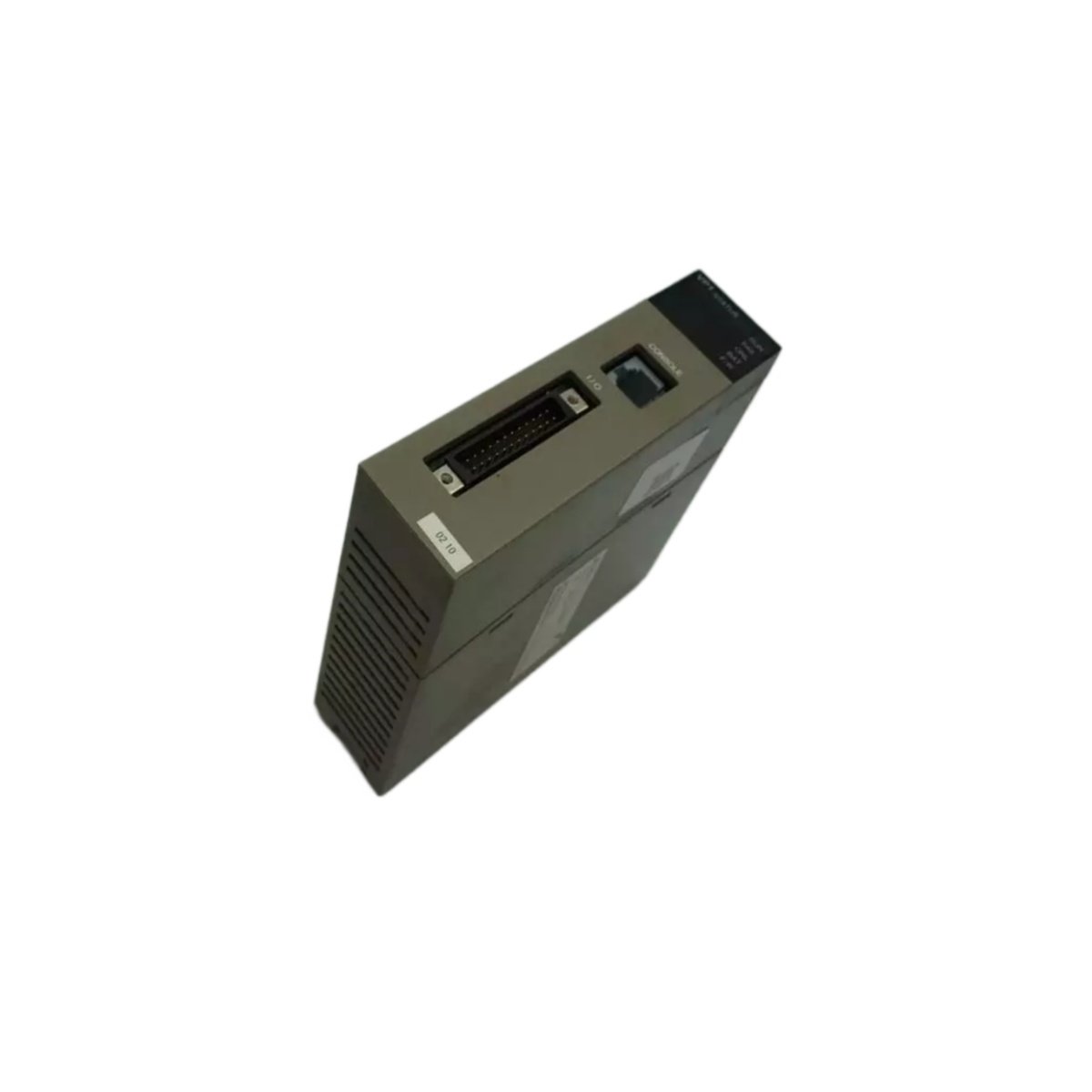

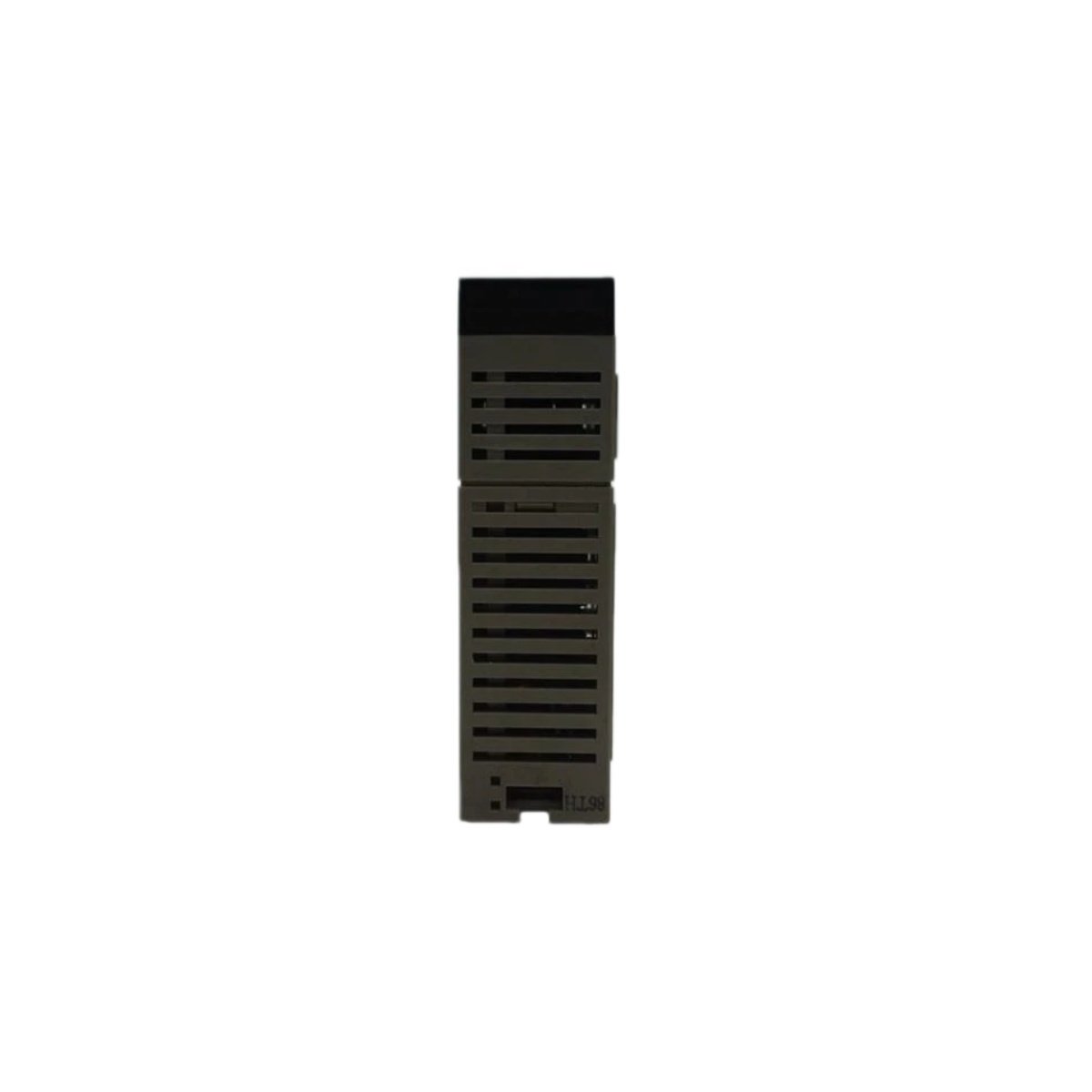

The FUJI NC1F-VP1 is a dedicated positioning control module for the FUJI Electric MICREX-F series programmable logic controllers. This module executes high-speed positioning operations for servo motors and stepper motors with precision. It supports 2 independent axes of motion control for coordinated movement profiles . Furthermore, the module generates pulse train outputs up to 200 kHz for precise motor control . The FUJI NC1F-VP1 excels in applications requiring accurate speed, position, and acceleration regulation .
High-Speed Pulse Output and Interpolation
This positioning module delivers pulse outputs of up to 200 kHz for each axis . The FUJI NC1F-VP1 supports linear interpolation and circular interpolation for complex motion paths . It provides trapezoidal and S-curve acceleration profiles for smooth motion transitions . Additionally, the module generates electronic gear and electronic cam functions for synchronized operations . This feature set enables sophisticated automation tasks such as pick-and-place and CNC applications .
Built-In Feedback and Comprehensive Diagnostics
The FUJI NC1F-VP1 supports various encoder feedback interfaces for closed-loop position verification . Its differential line driver outputs provide noise-resistant signal transmission over long distances . The module’s onboard diagnostics detect faults in output circuits and encoder connections . Moreover, the module includes over-travel detection to prevent mechanical damage and collisions . The front panel LEDs display power, communication, and error status in real time .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | FUJI Electric |
| Model | FUJI NC1F-VP1 |
| Product Type | Position Control Module |
| Series | MICREX-F |
| Control Axes | 2 independent axes |
| Pulse Output Frequency | Up to 200 kHz per axis |
| Output Type | Differential line driver (5 VDC) |
| Encoder Feedback | Incremental encoder inputs (A/B/Z phase) |
| Interpolation Functions | Linear and circular interpolation |
| Acceleration Profiles | Trapezoidal and S-curve |
| Programming | Dedicated positioning instructions |
| Protection | Over-travel, stall, and short circuit detection |
| Power Consumption | 5 W |
| Dimensions (W x H x D) | 110 x 70 x 50 mm |
| Weight | Approximately 0.35 kg |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –25 °C to +70 °C |
| Mounting | DIN Rail |
System Integration and Communication
This positioning module connects directly to the MICREX-F series CPU via the system bus . The FUJI NC1F-VP1 integrates with absolute and incremental encoders for flexible feedback . Users can configure the module’s parameters through the software configuration tool . The module supports multiple target position registers for simple programming of repeat moves .
Applications and Industries
The FUJI NC1F-VP1 serves industrial applications requiring precise multi-axis motion control . It commonly appears in assembly, packaging, and material handling systems . The module also supports woodworking, metal forming, and textile manufacturing equipment . Its robust design ensures reliable operation in harsh factory environments .
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
