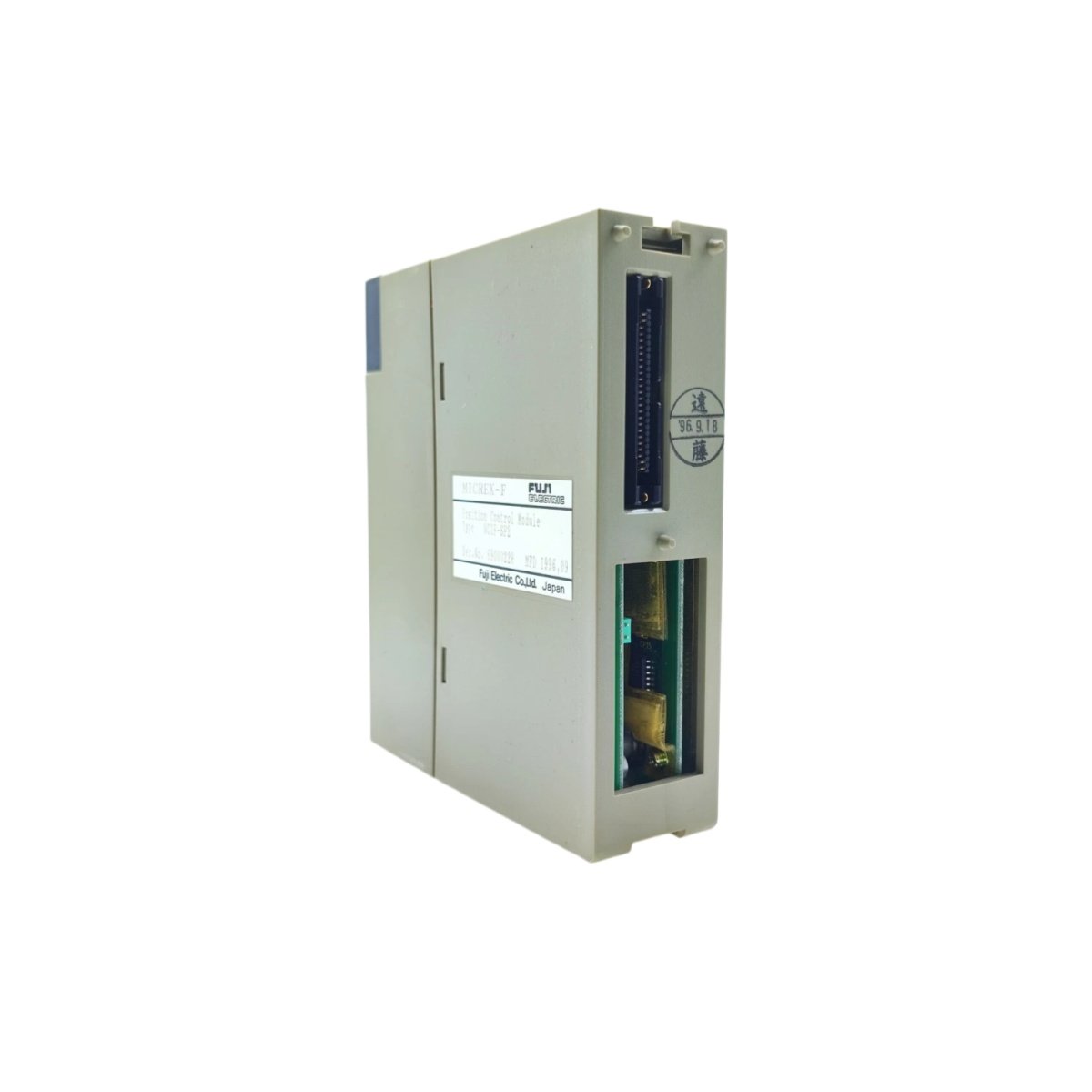

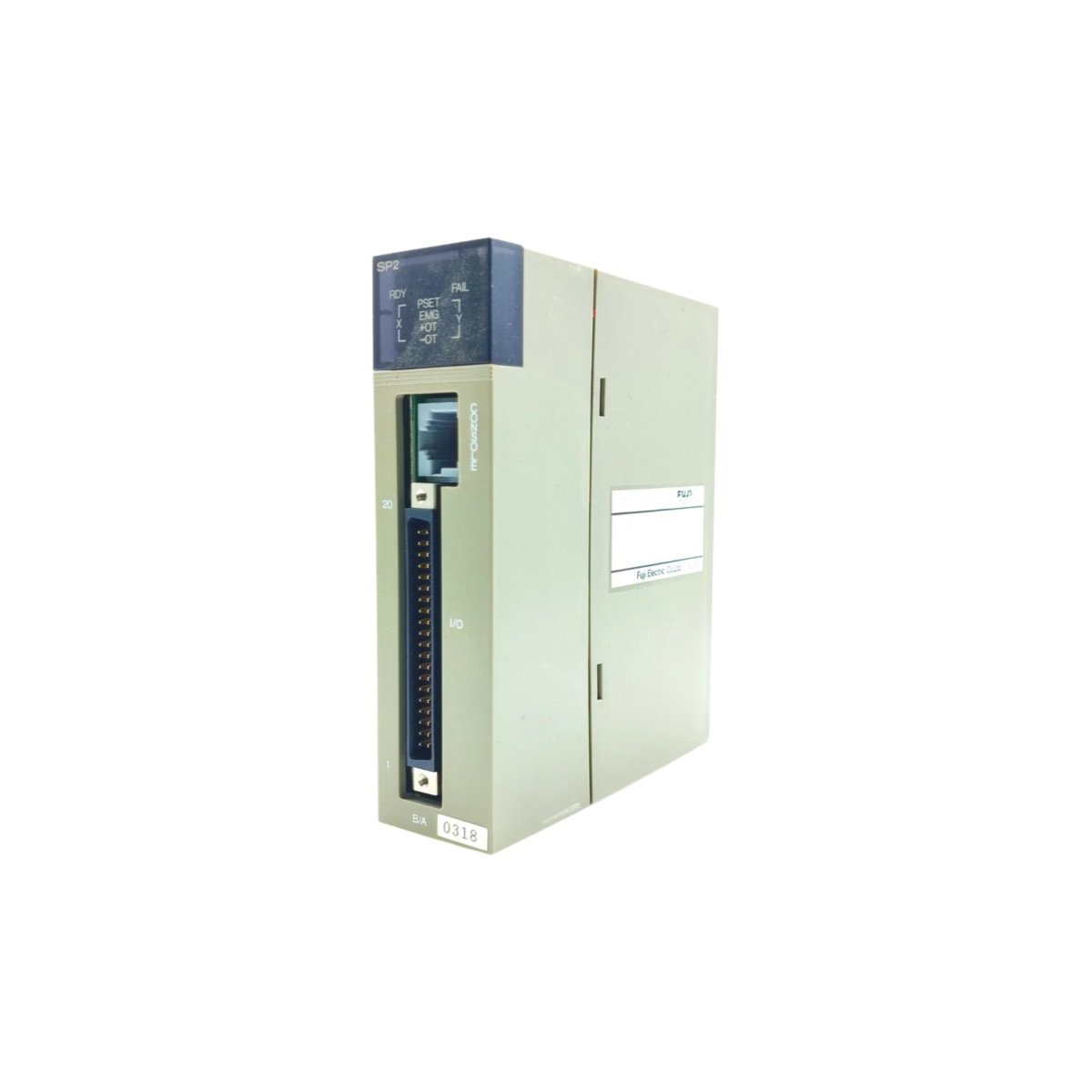

Product Overview
The Fuji NC1F-SP2 provides precise position control for single-axis motion applications. This module generates high-speed pulse outputs for stepper and servo motor drives. It executes point-to-point positioning with programmable acceleration profiles. The unit integrates into Fuji Electric NC1 series controller systems seamlessly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | NC1F-SP2 |
| Product Type | Position Control Module |
| Number of Axes | 1 axis |
| Control Method | Pulse train output (Pulse/Direction) |
| Maximum Output Frequency | 100 kpps |
| Positioning Points | 100 points |
| Positioning Modes | Point-to-point positioning |
| Speed Control | 1 to 100,000 pps |
| Acceleration/Deceleration | Linear acceleration only |
| Output Type | Open-collector output |
| Power Supply | 5 VDC from backplane |
| Power Dissipation | 3.0 W typical |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | –25°C to 70°C |
| Humidity Range | 10% to 90% non-condensing |
Physical Dimensions and Mounting

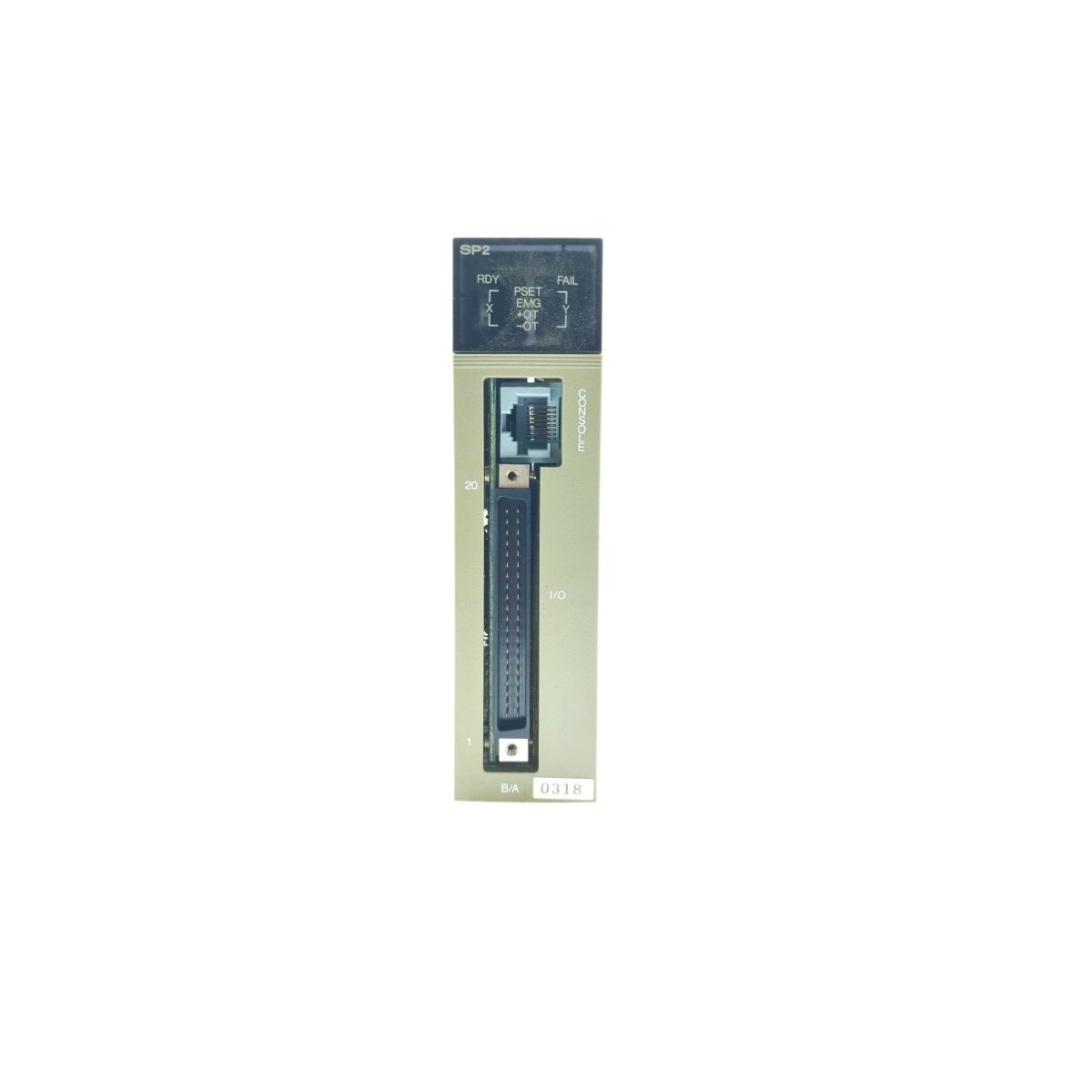

This position control module measures 250 mm in width, 30 mm in height, and 140 mm in depth. The unit weighs approximately 0.45 kg. It plugs directly into a standard NC1 series rack backplane. The front panel includes LED indicators for power, axis activity, and fault status. These LEDs provide immediate visual feedback on positioning operations.
Motion Control and Positioning Capabilities
The NC1F-SP2 controls a single axis for point-to-point positioning applications. It generates pulse train outputs up to 100 kpps for moderate-speed positioning. The module stores up to 100 positioning points for sequential operations. It supports linear acceleration and deceleration for smooth motion control. The open-collector outputs interface with most stepper and servo drivers.
Electrical Interface and Connectivity
A front-access terminal block provides the primary interface for motor driver connections. The module uses open-collector outputs for pulse and direction signals. This interface suits short-distance connections in control cabinets. Each axis includes pulse output, direction, and positioning complete signals. The terminal block accepts wires up to 1.5 mm² for secure connections.
Installation and System Integration
You can install this module into any available slot in the NC1 series rack. Insert the module carefully until it locks securely into the backplane. Connect the pulse and direction outputs to your motor drive. Configure the positioning parameters using the programming software. Always set the speed and acceleration profiles for your application requirements.
Environmental Compliance
This module carries CE marking for industrial use. It also complies with RoHS environmental directives. The conformal coating protects the PCB against moisture and dust.
Details
| Weight | 1.4 kg |
|---|---|
| Dimensions | 127 × 254 × 203 mm |
