Technical Overview of the Module

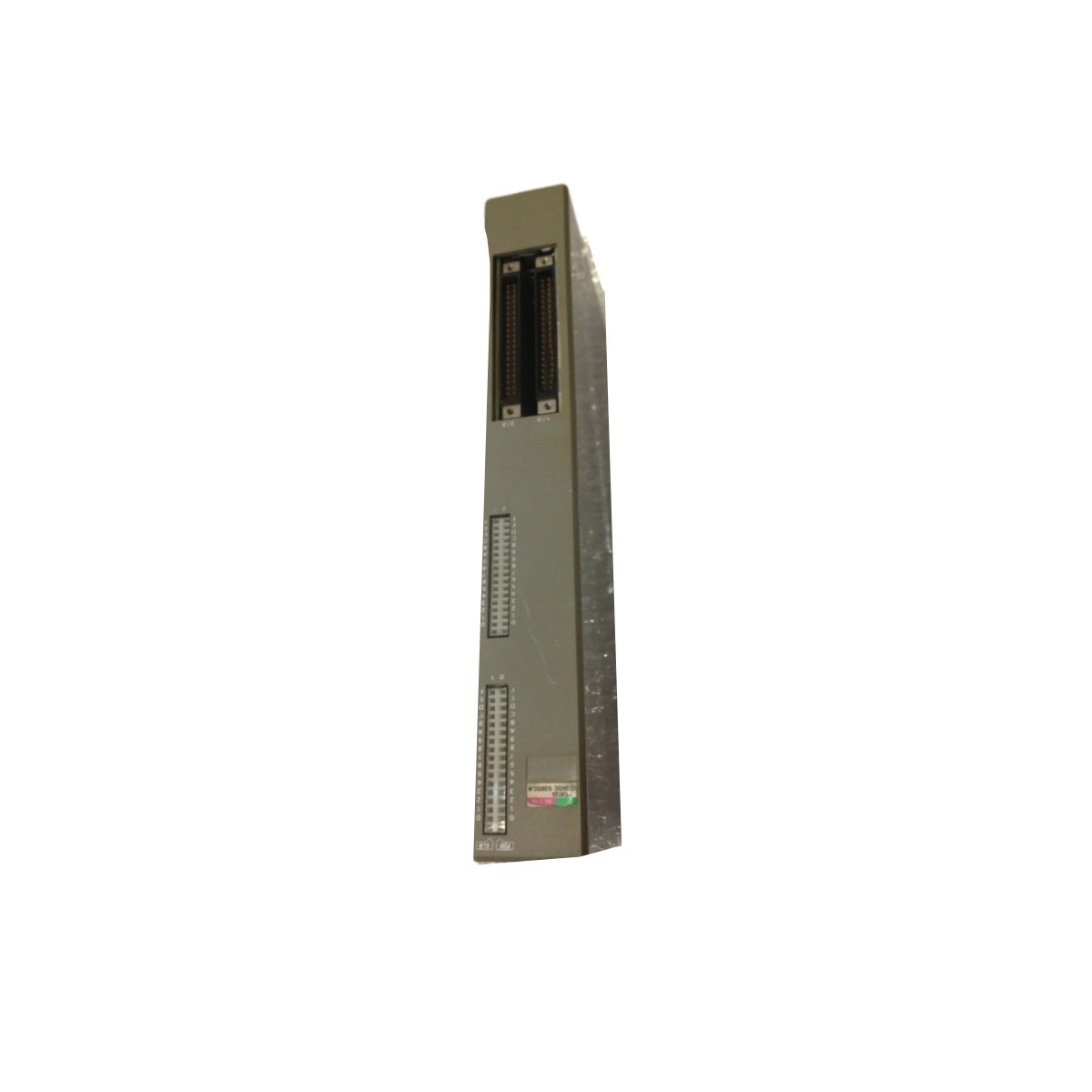

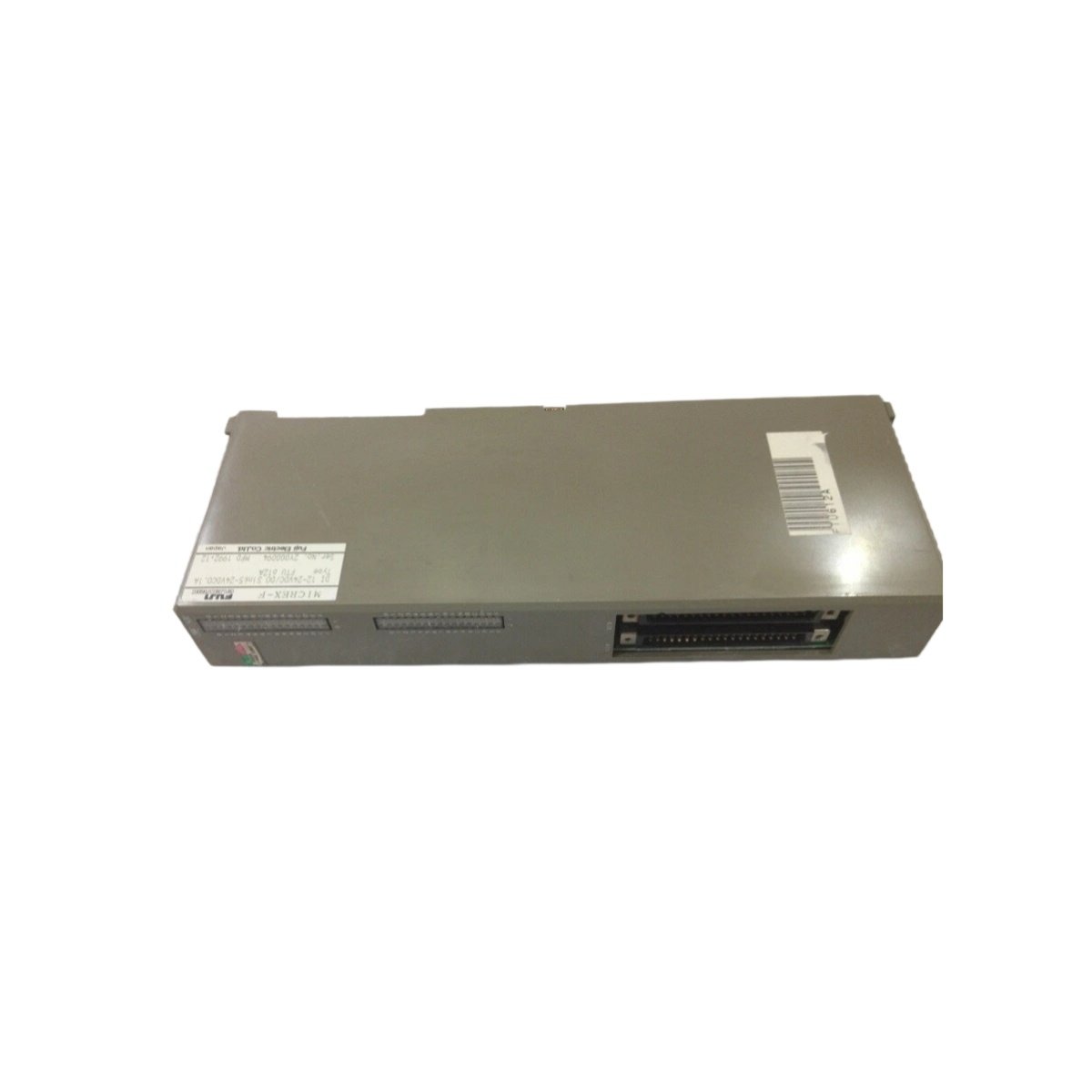

The Fuji FTU612A functions as an electronic overload relay module within the MICREX-F series. This device protects electric motors from damage due to overloading, overheating, and phase failure . It offers adjustable current settings and selectable trip classes for application flexibility. The design incorporates self-diagnostic functions and LED status indicators.
Key Technical Specifications
This section details the exact parameters for the Fuji FTU612A module. Use these figures to verify compatibility with your motor protection requirements.
| Parameter | Specification |
|---|---|
| Part Number | FTU612A |
| Type | Electronic Overload Relay |
| Product Family | MICREX-F |
| Current Setting | Adjustable ranges |
| Trip Classes | Selectable |
| Protection Functions | Overload, overheating, phase failure |
| Diagnostics | Self-diagnostic function |
| Status Indication | LED indicators |
| Dimensions | Compact design |
| Compatibility | MICREX-F series systems |
Application and System Integration
This overload relay module integrates with MICREX-F PLC systems for motor protection. It monitors motor current and trips on fault conditions. The Fuji FTU612A suits conveyor systems, HVAC, and manufacturing machinery . Its compact size allows easy installation in control panels. Consequently, operators can protect critical motors effectively.
Reliability and Performance Features
The self-diagnostic function alerts users to potential system faults early. LED indicators provide clear status visibility for quick troubleshooting. The module operates across a wide temperature range . Engineers choose the Fuji FTU612A for reliable motor protection in diverse industrial applications.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
