Compact I/O Solution for SPH Series Controllers

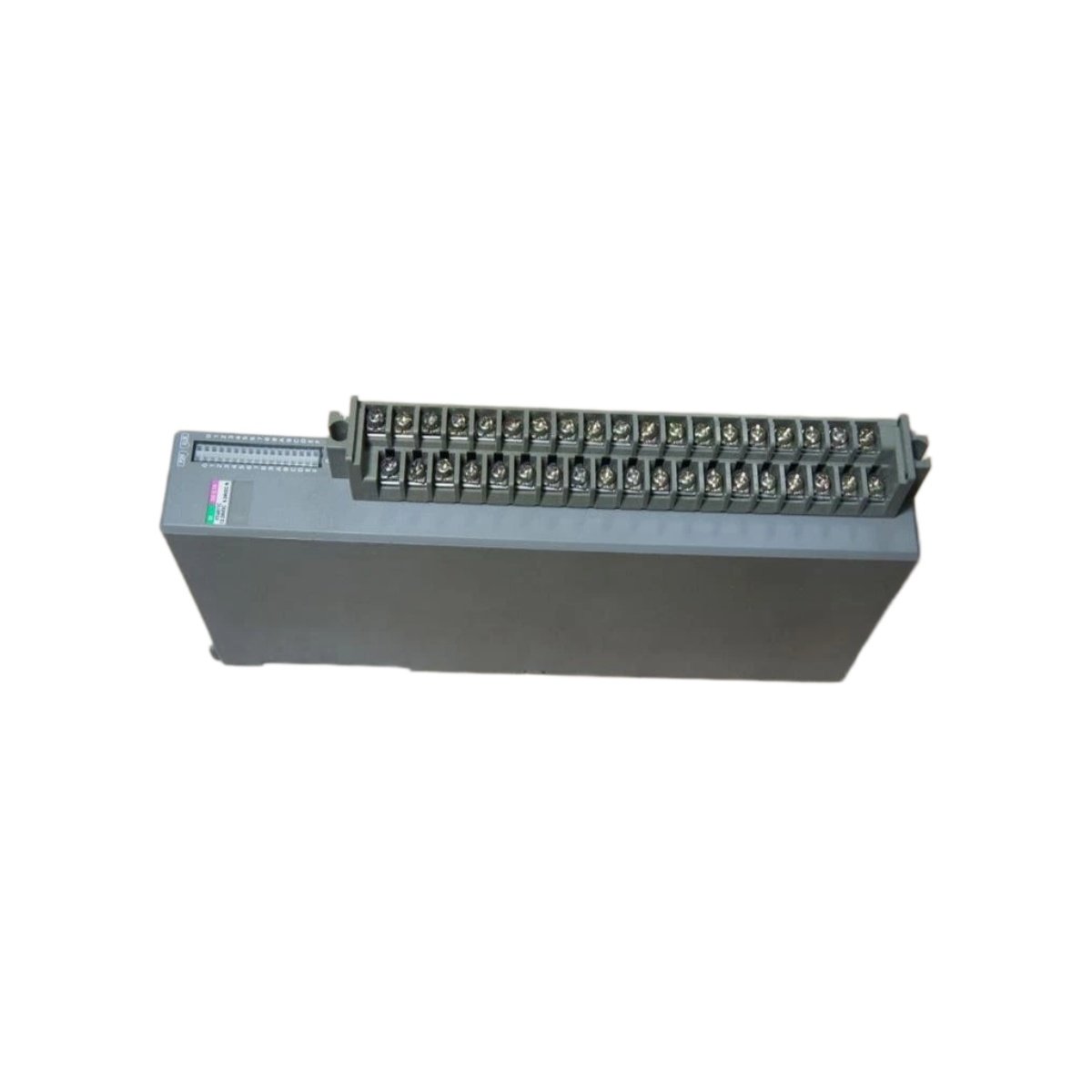

The Fuji FTU611C functions as a dedicated digital DC 16-point I/O module for the MICREX-SX SPH series . This module offers 16 input and 16 output points in a single compact unit. It interfaces directly with 24 V DC field devices, including proximity sensors, photoelectric sensors, and pushbuttons. Consequently, this mixed I/O design minimizes cabinet space requirements while maximizing functionality. A 24 V DC external supply powers the module, with an internal current consumption of approximately 50 mA.
Input and Output Performance Characteristics
Input circuits feature a typical impedance of 5.6 kΩ, with an ON voltage range of 15-30 V DC. The OFF threshold sits between 0-5 V DC, ensuring reliable signal discrimination. Output circuits employ sink transistor technology, delivering 0.1 A per point with a total common capacity of 1.6 A. Built-in surge protection safeguards the outputs against voltage spikes. LED indicators on the front panel display the real-time status of each I/O point.
Technical Specifications
| Specification | Value |
|---|---|
| Model | FTU611C |
| Product Type | Digital DC 16-Point I/O Module |
| Input Points | 16 |
| Output Points | 16 (sink transistor) |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Output Current | 0.1 A/point, 1.6 A/common |
| Internal Consumption | 50 mA |
| Dimensions (W x H x D) | 110 mm x 40 mm x 100 mm |
| Weight | Approx. 0.2 kg |
| Mounting | DIN rail |
| Operating Temperature | 0 °C to 55 °C |
Connectivity and Installation
The module connects via a standard 40-pin connector for straightforward field wiring. DIN rail mounting simplifies installation and replacement. This Fuji FTU611C supports various shielding and noise reduction techniques for reliable signal transmission in industrial settings.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
