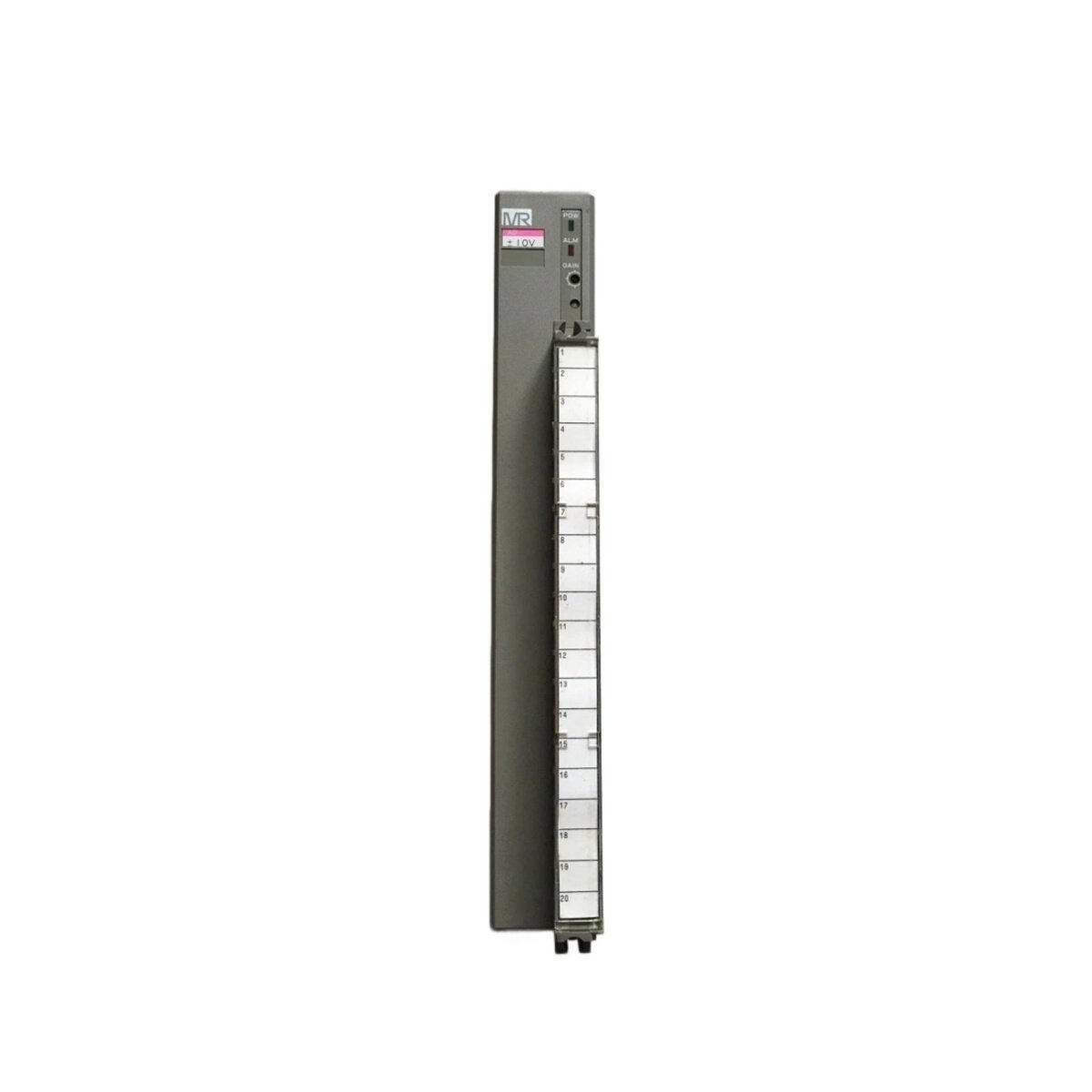

This I/O control module provides flexible signal monitoring and output control for distributed applications. It integrates seamlessly into the Fuji Electric F-Touch series programmable controller platform. The unit captures digital input signals and drives output actuators independently. Users can implement control logic, interlocking, and sequencing for automated processes.

I/O Channel Configuration and Specifications

This module features a balanced I/O configuration for versatile field connectivity. It provides 8 digital inputs operating at 24 V DC for sensor and switch monitoring. The unit also includes 8 transistor outputs rated at 0.5 A per channel for actuator control. The inputs accept signals from 0 V to 30 V with adjustable filtering options. Consequently, users can connect proximity sensors, limit switches, and pilot lamps directly.

Input Signal Processing and Filtering

The FTU423A processes each input signal with programmable delay settings. Users configure the input filter from 0.1 ms to 20 ms for noise immunity. This adjustable filtering accommodates both high-speed counting and contact debouncing. Each input provides a green LED indicator for real-time status visualization. The module also stores diagnostic data for each input channel. Consequently, operators can identify intermittent sensor faults quickly.

Output Performance and Protection Functions

This module delivers reliable switching performance for output control applications. Each output achieves a response time of 0.5 ms for rapid actuator response. The unit includes short-circuit protection on every output channel. It also provides overcurrent limiting to prevent damage during overload conditions. Each output features a green LED that illuminates when the channel remains active. A red “Fault” LED signals group-level errors for quick identification.

Diagnostic Functions and Fault Detection

This I/O control module includes comprehensive diagnostic capabilities for reliable operation. It detects short-circuits on output channels and reports them to the CPU. The module also identifies overcurrent conditions and limits current automatically. Diagnostic messages appear in the PLC program for immediate operator response. Additionally, the unit performs self-tests during every power-up cycle. This diagnostics suite simplifies troubleshooting and reduces downtime.

System Integration and Configuration

This module communicates with the F-Touch CPU through the dedicated backplane bus. It automatically maps I/O data to the PLC memory for easy programming. Users configure the module using the F-Touch programming software environment. The software provides intuitive tools for filter and protection parameter settings. Configuration data is stored in the CPU for automatic recognition. This plug-and-play design simplifies commissioning and module replacement.

Energy Consumption and Thermal Management

The module draws 40 mA at 5 V DC from the backplane for internal logic. External power requirements come from the field supply via dedicated terminals. Power dissipation remains below 1.5 W under full operational load. Natural convection cooling maintains safe temperatures across all components. Consequently, the operating range spans 0 °C to 55 °C for standard factory environments. Humidity tolerance reaches 10% to 90% without condensation concerns.

Installation and Space-Efficient Design

This module features a compact 35 mm width for efficient cabinet space utilization. The narrow footprint enables high-density installations in distributed systems. Installers snap the unit onto a standard DIN rail without tools. The module connects to adjacent F-Touch modules via integrated bus connectors. The housing carries an IP20 rating for protection against solid objects. This robust design suits packaging machinery, conveyor systems, and assembly stations.
