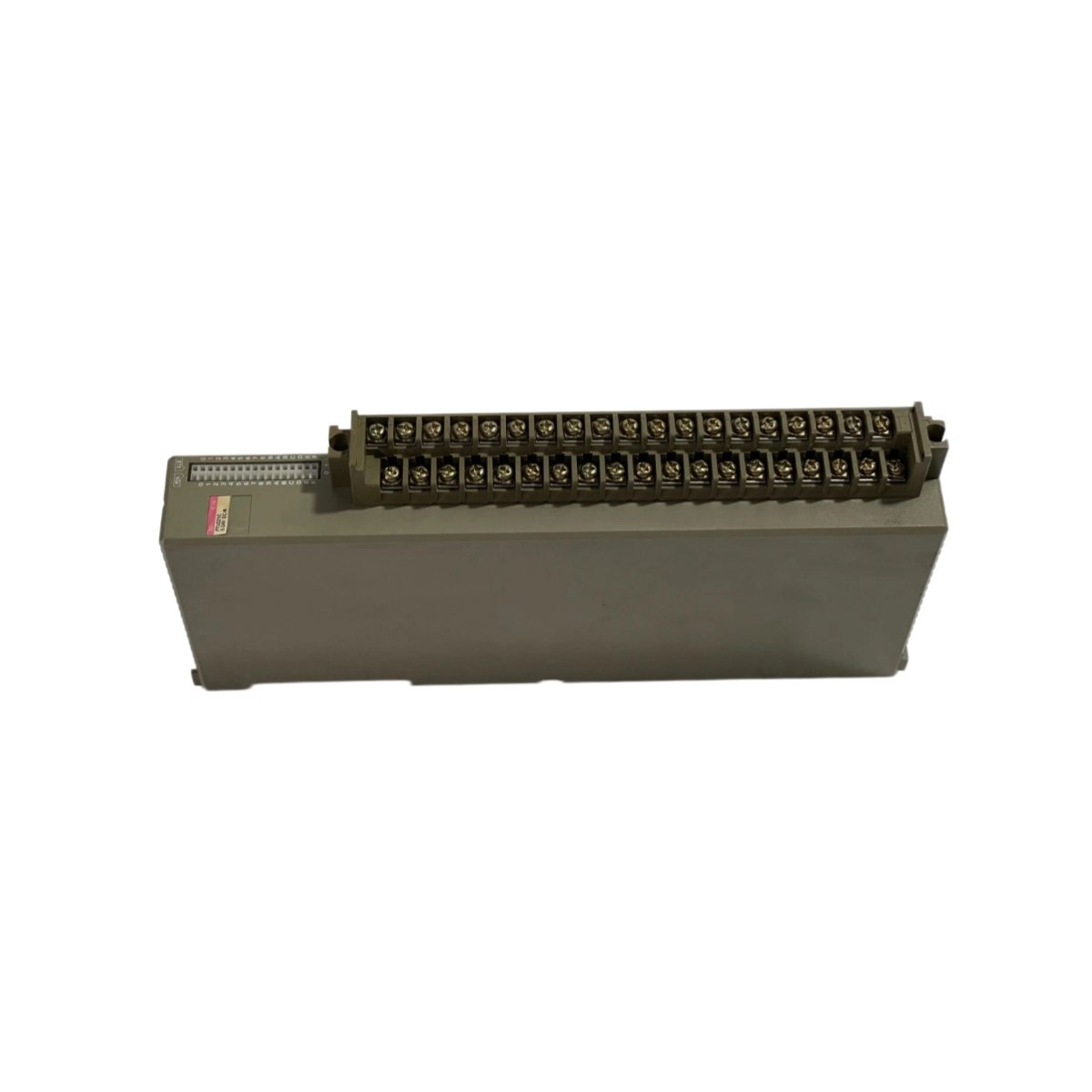

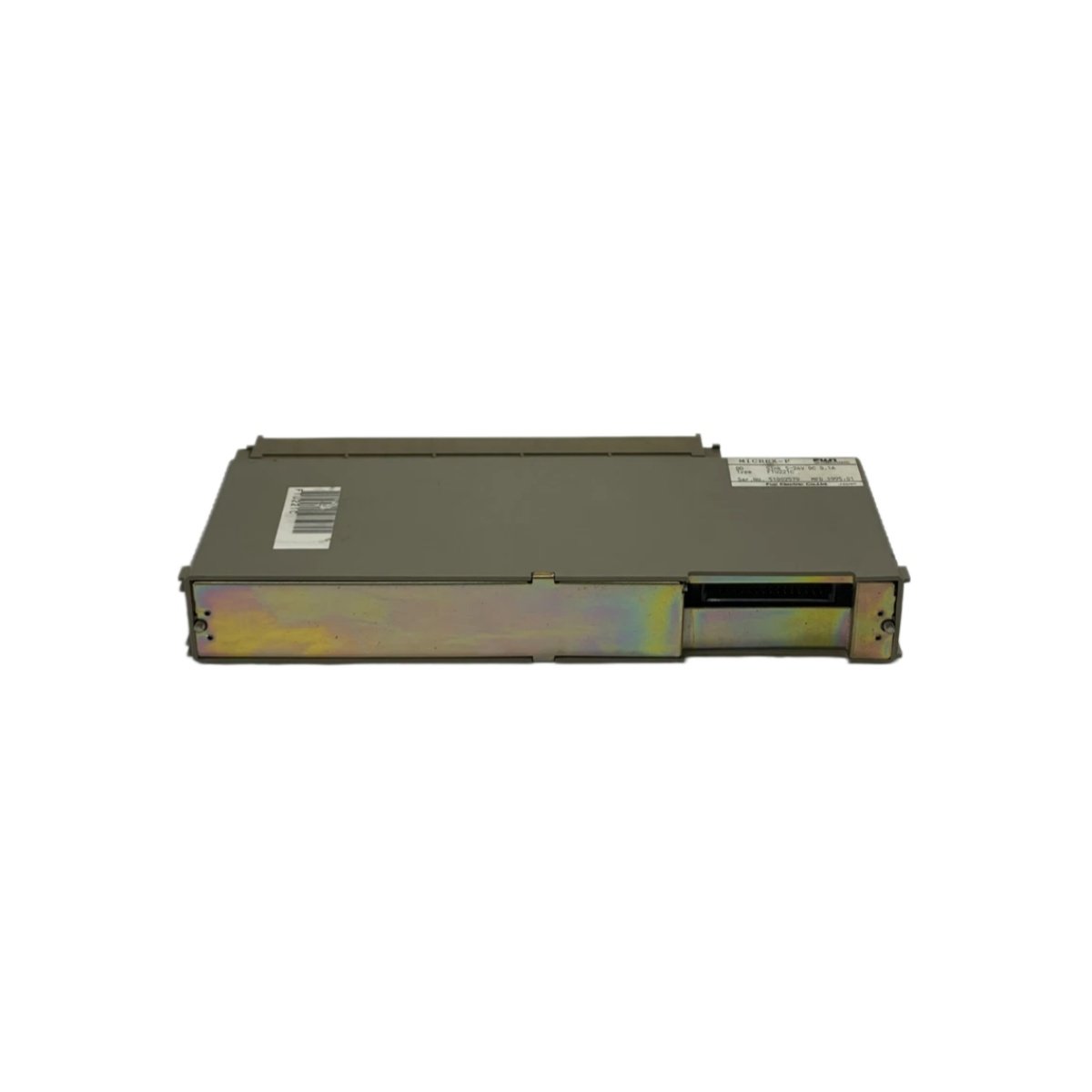

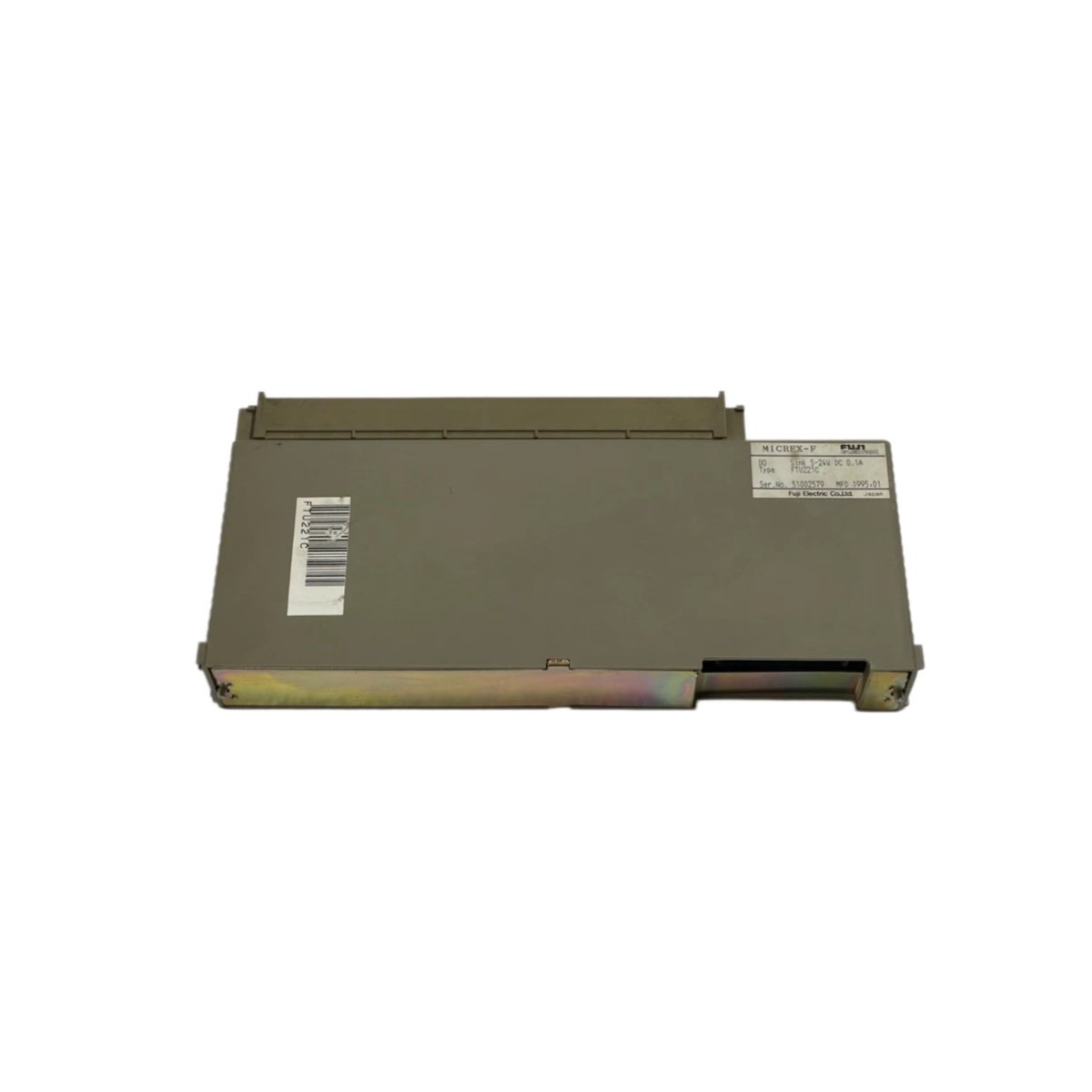

This programmable logic controller module delivers reliable performance for mid-range automation applications. It integrates seamlessly into the Fuji Electric F-Touch series control platform. The unit combines processing power, communication interfaces, and I/O expansion capabilities. Users can implement complex sequences, data handling, and network communications efficiently.

Processing Architecture and Execution Performance

This module features a high-performance processor optimized for industrial control tasks. It executes ladder logic and structured text instructions with consistent scan times. The unit processes 3,500 instructions per millisecond for responsive machine control. This speed supports indexing conveyors, packaging lines, and simple motion coordination. Consequently, the module maintains precise timing for critical production processes.

Memory Resources and Data Retention

The FTU221C stores user applications in 64 KB of reliable flash memory. Data memory reaches 32 KB for variables, timers, counters, and system flags. The unit includes a built-in battery for long-term data retention during power loss. This battery maintains stored values for up to 5 years without external power. Upon power restoration, the module retrieves all retained variables automatically. This feature prevents data loss and ensures seamless production resumption after outages.

Communication Interfaces and Network Capabilities

This PLC module includes three communication ports for extensive connectivity options. An RS-232C port supports programming, HMI connection, and serial device communication. An RS-485 port enables multi-drop networking with Modbus RTU slave devices. An Ethernet port provides high-speed connectivity for Modbus TCP and remote monitoring. The unit also communicates with F-Touch series remote I/O modules via dedicated bus. Consequently, engineers can build distributed systems with centralized control.

I/O Expansion and System Scalability

The module supports up to 256 local I/O points through direct backplane connection. Users can expand the system to 512 remote I/O points via the F-Touch network. This scalability accommodates growing automation requirements without replacing the controller. The unit accepts various special function modules for specialized applications. Furthermore, users can add positioning, temperature, and analog modules as needed. This flexibility enables customized solutions for diverse industry sectors.

Energy Consumption and Thermal Management

The module draws 180 mA at 5 V DC from the backplane power supply. Power dissipation remains below 2.5 W under full operational load. The unit operates reliably between 0 °C and 55 °C ambient temperature. Natural convection cooling maintains safe temperatures without mechanical fans. Humidity tolerance spans 10% to 90% without condensation issues. This thermal efficiency ensures stable performance in standard factory environments.

Diagnostic Functions and Status Indication

The module performs comprehensive self-diagnostics during every power-up sequence. It monitors memory integrity, communication status, and program execution continuously. A front-panel LED array provides clear visual feedback on operating status. A green “Run” LED confirms normal program scanning activity. A yellow “Battery” LED alerts users to low battery conditions. A red “Error” LED illuminates when the unit detects critical faults. These indicators simplify troubleshooting and minimize diagnostic time.
