Product Overview

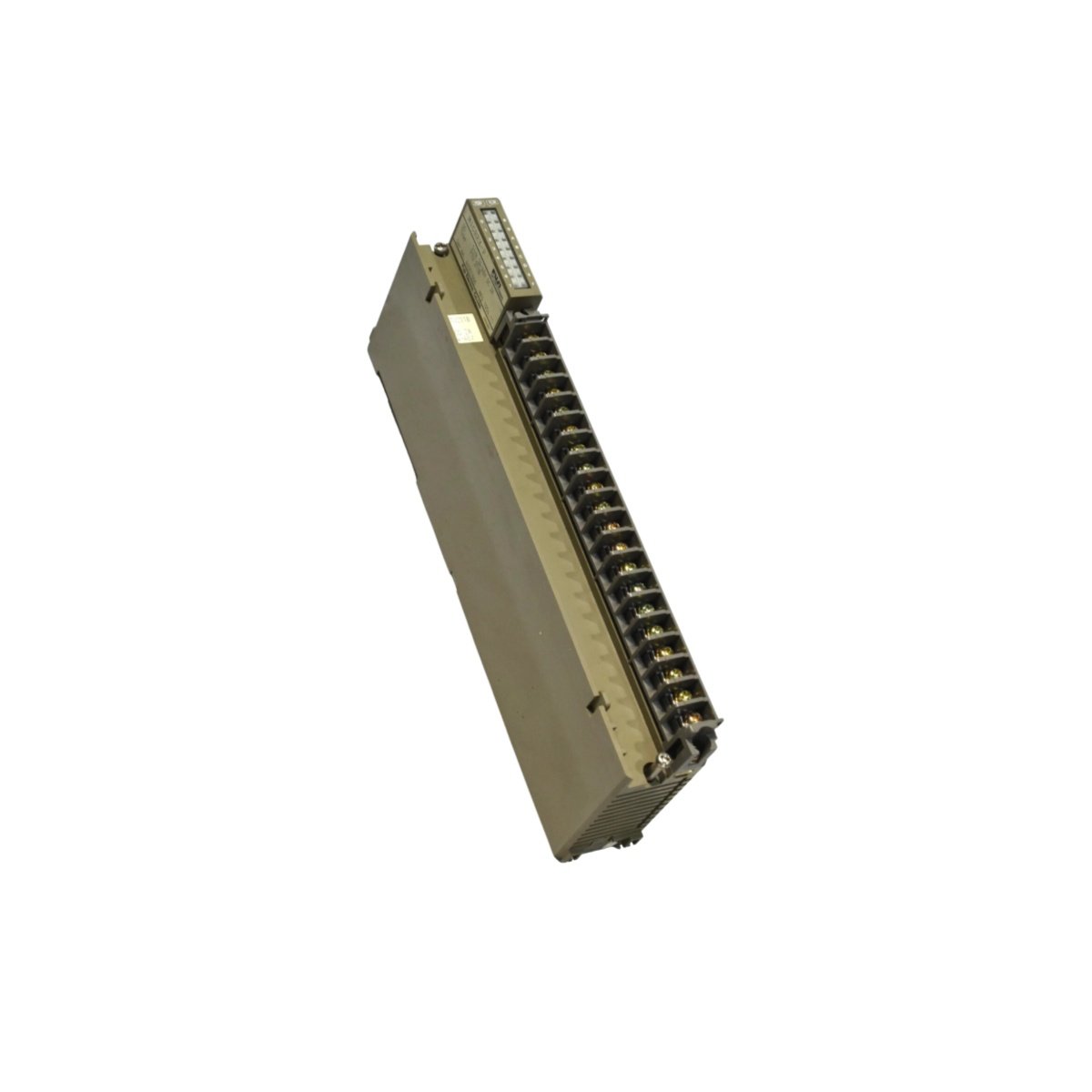

The Fuji FTU211B serves as a modular PLC unit for compact automation applications. This module provides flexible control with scalable I/O configurations. It handles discrete signal processing for small-scale machinery control effectively. The unit integrates into Fuji Electric FTU series control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FTU211B |
| Product Type | PLC Module |
| Processor Type | 8-bit microcontroller |
| Program Memory | 8 KB RAM/EPROM |
| Data Memory | 2 KB RAM |
| Digital I/O Capacity | 16 inputs / 16 outputs |
| Execution Speed | 1.2 ms per 1K instructions |
| Timers | 32 timers |
| Counters | 32 counters |
| Communication Port | RS-232 |
| Power Supply | 24 VDC |
| Power Dissipation | 3.5 W typical |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | –20°C to 65°C |
| Humidity Range | 10% to 90% non-condensing |
Physical Dimensions and Mounting
This PLC module measures 180 mm in width, 40 mm in height, and 120 mm in depth. The unit weighs approximately 0.55 kg. It mounts onto a DIN rail or directly onto a panel plate. The front panel includes LED indicators for power, run, and I/O status. These LEDs provide immediate visual feedback on module operation.
Processing and Memory
The FTU211B employs an 8-bit microcontroller for control processing. It stores user programs in 8 KB of memory. The data memory of 2 KB handles variable storage. The CPU executes logic at 1.2 ms per 1K instructions. It includes 32 timers and 32 counters for basic timing tasks.
I/O and Connectivity
This module comes with 16 digital inputs and 16 digital outputs. The digital inputs accept 24 VDC signals. The outputs drive loads up to 0.3 A per channel. The built-in RS-232 port connects to programming tools.
Installation
You can install this module on a DIN rail. Connect the 24 VDC power supply. Wire the I/O to the terminal blocks. Configure the system using the programming software.
Environmental Compliance
This module carries CE marking. It complies with RoHS directives.
Details
| Weight | 0.9 kg |
|---|---|
| Dimensions | 127 × 254 × 203 mm |
