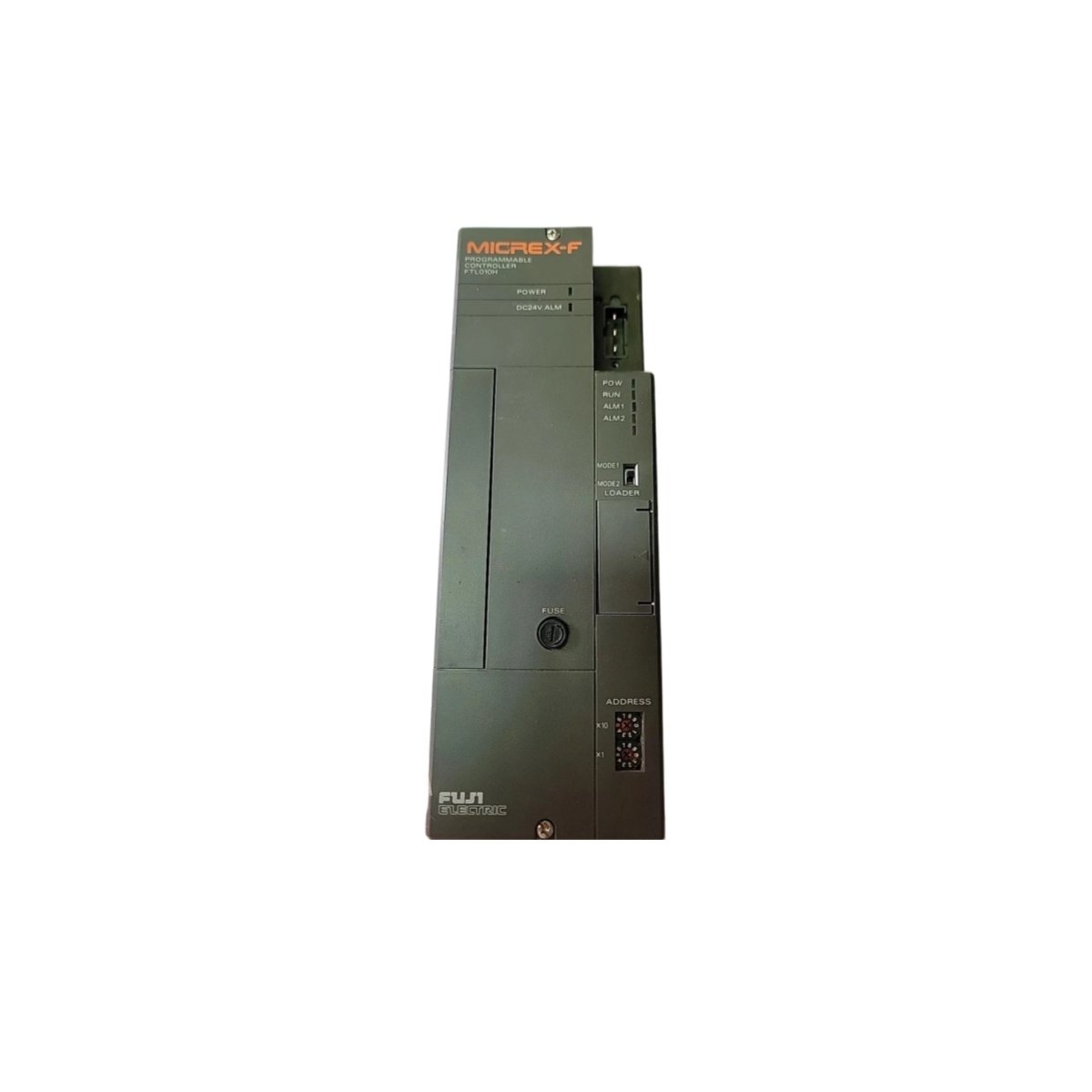

The Fuji FTL010H-A10 terminal link unit delivers a dedicated interface for distributed control architectures. This module reliably connects field sensors and actuators to the main processor. It significantly reduces the complexity of cabinet wiring for automation engineers. Moreover, the unit supports straightforward troubleshooting through clearly marked test points.
Core Dimensions and Installation Profile
This terminal link unit features a streamlined housing for high-density panel layouts. It measures exactly 120 millimeters in width and 75 millimeters in depth. The overall height reaches 60 millimeters including the terminal blocks. Its total mass equals 0.4 kilograms, ensuring stable DIN-rail attachment. The unit operates effectively across an ambient range of -10°C to +60°C.
Connector Layout and Signal Routing
The Fuji FTL010H-A10 incorporates one 30-pin factory-terminated connector as the primary interface. This connector directly mates with standard remote I/O module headers. Two additional screw-type terminals provide auxiliary 24 VDC power feed-through capability. Each terminal accepts solid or stranded wires up to 1.5 mm² in cross-section. The internal PCB traces maintain a 100-mil spacing for noise immunity.
Component Architecture and Build Quality
This terminal link unit contains precisely 28 discrete components on a single board. These parts include metal-film resistors, ceramic capacitors, and high-brightness LED indicators. The glass-epoxy substrate meets FR-4 flammability standards for industrial safety. Every assembled unit undergoes a full-function test before leaving the factory.
Energy Storage and Transient Handling
A dedicated capacitor bank resides on the board for momentary energy buffering. This bank comprises two electrolytic capacitors with a combined capacitance of 470 µF. The rated voltage for this storage section reaches 25 volts DC. Consequently, the total stored energy approximates 0.15 joules under nominal supply conditions. This reserve effectively bridges short-duration power sags without signal loss.
Maintenance and Operational Benefits
Technicians can mount the Fuji FTL010H-A10 quickly using a standard 35-mm DIN rail. The front-facing terminal arrangement allows easy access for wire insertion and retightening. Each connection point carries permanent numerical labeling for error-free identification. Periodic inspection only requires checking torque on the power terminals. This low-maintenance design keeps production lines running with minimal downtime.
Technical Data Summary
| Parameter | Specification |
|---|---|
| Brand | Fuji |
| Model | FTL010H-A10 |
| Product Type | Terminal Link Unit |
| Width x Depth | 120 mm x 75 mm |
| Height (incl. terminals) | 60 mm |
| Weight | 0.4 kg |
| Primary Connector | 30-pin factory-terminated |
| Auxiliary Terminals | 2 x screw-type (24 VDC pass-through) |
| Wire Size Capacity | Up to 1.5 mm² |
| Energy Storage | 470 µF / 25 V (0.15 J) |
| Operating Temperature | -10°C to +60°C |
| Component Count | 28 discrete parts |
| PCB Material | FR-4 glass-epoxy |
System Integration and Field Performance
This unit seamlessly interfaces with Fuji electric and third-party I/O systems. It acts as a physical bridge between the controller and field-mounted instrumentation. Therefore, the Fuji FTL010H-A10 accelerates both initial commissioning and future system expansions.
Details
| Weight | 0.4 kg |
|---|---|
| Dimensions | 75 × 120 × 60 mm |
