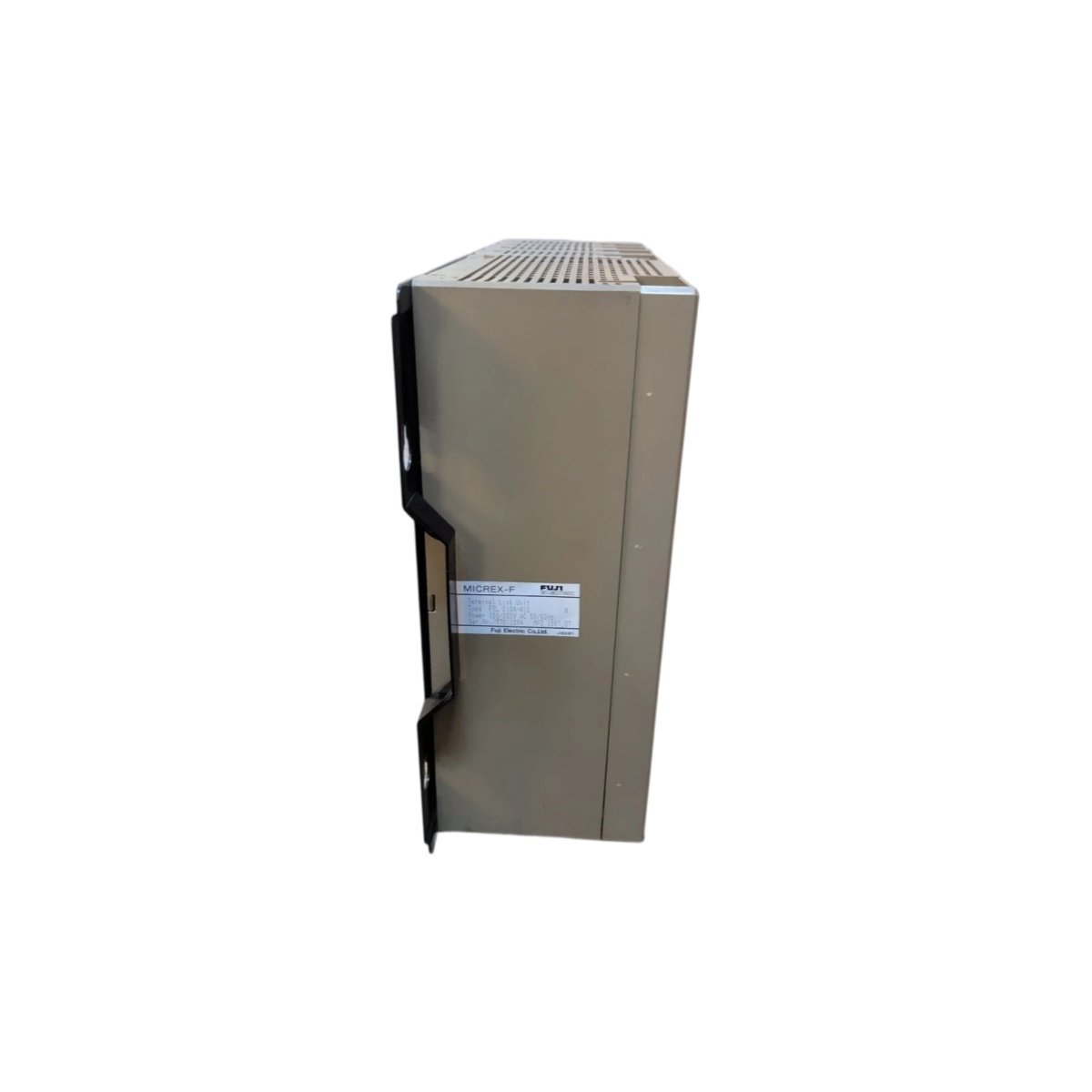

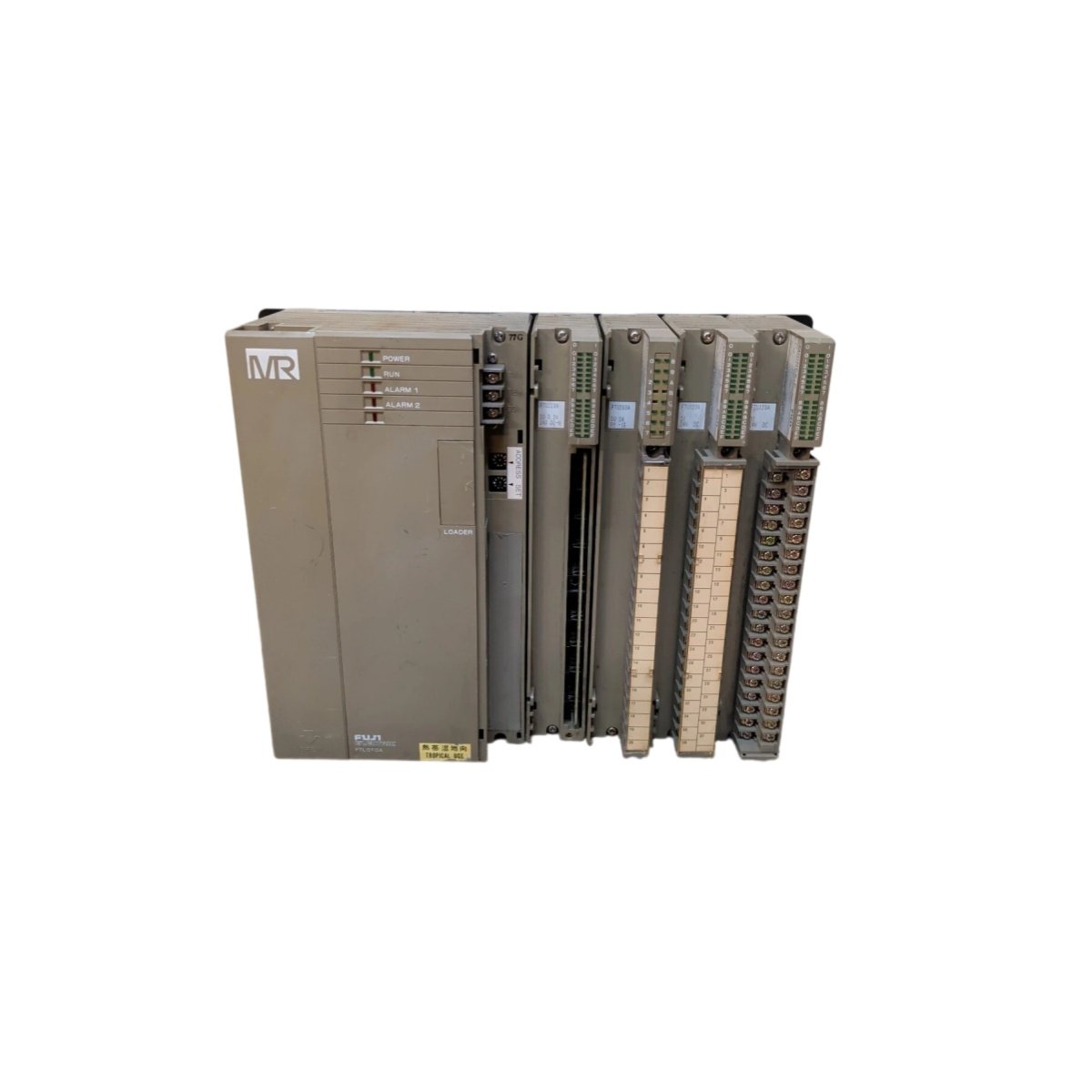

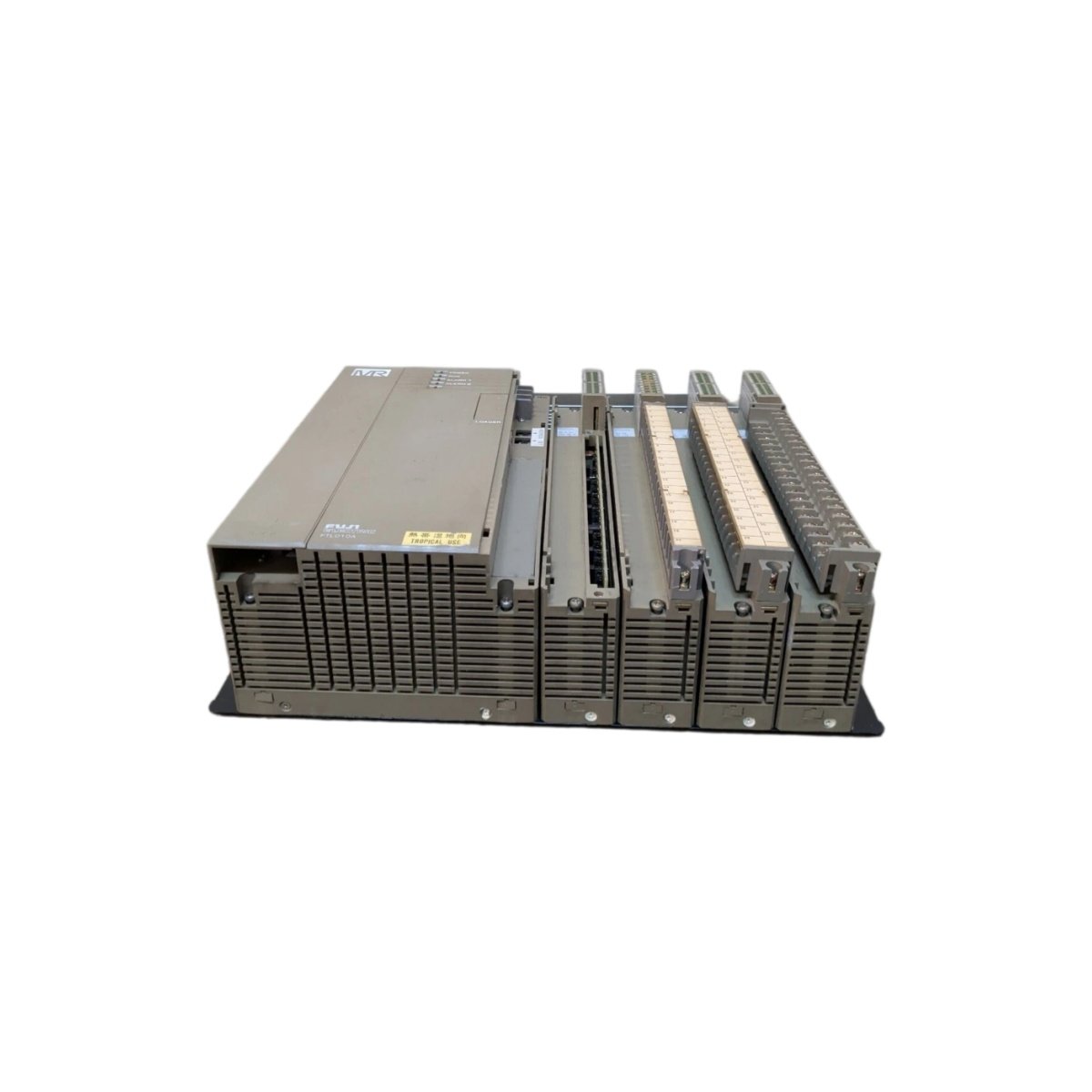

Field Wiring Simplification with the FTL010A-A10
The FTL010A-A10 acts as a centralized wiring interface for MICREX-F I/O modules. This terminal link unit groups field device connections into one accessible point. Consequently, technicians reduce cabinet clutter and accelerate installation procedures significantly.
Terminal Configuration and Wiring Capacity
Ten screw terminals accommodate both solid and stranded conductors. Each point accepts wire gauges spanning 0.5 to 2.5 mm². Therefore, the FTL010A-A10 handles diverse field wiring requirements without adapter hardware.
| Parameter | Specification |
|---|---|
| Terminal Count | 10 points |
| Wire Gauge Range | 0.5 – 2.5 mm² |
| Rated Voltage | 250 V AC / 24 V DC |
| Rated Current | 10 A per terminal |
| Connection Type | Screw terminal |
Physical Dimensions and Construction
The unit occupies minimal panel space with its compact rectangular profile. A transparent cover protects terminals from dust and accidental contact. Meanwhile, clearly numbered markers identify each connection point for quick reference.
| Parameter | Specification |
|---|---|
| Width | 120 mm |
| Height | 60 mm |
| Depth | 45 mm |
| Weight | Approximately 220 g |
| Mounting | DIN rail compatible |
Passive Operation and System Role
This device contains no active components or energy storage elements. Instead, it functions purely as a passive interconnection hub. The FTL010A-A10 requires no external power supply for operation. Consequently, it delivers reliable signal routing with zero configuration overhead.
Details
| Weight | 0.26 kg |
|---|---|
| Dimensions | 110 × 52 × 37 mm |
