Mechanical Foundation for the FSB126H

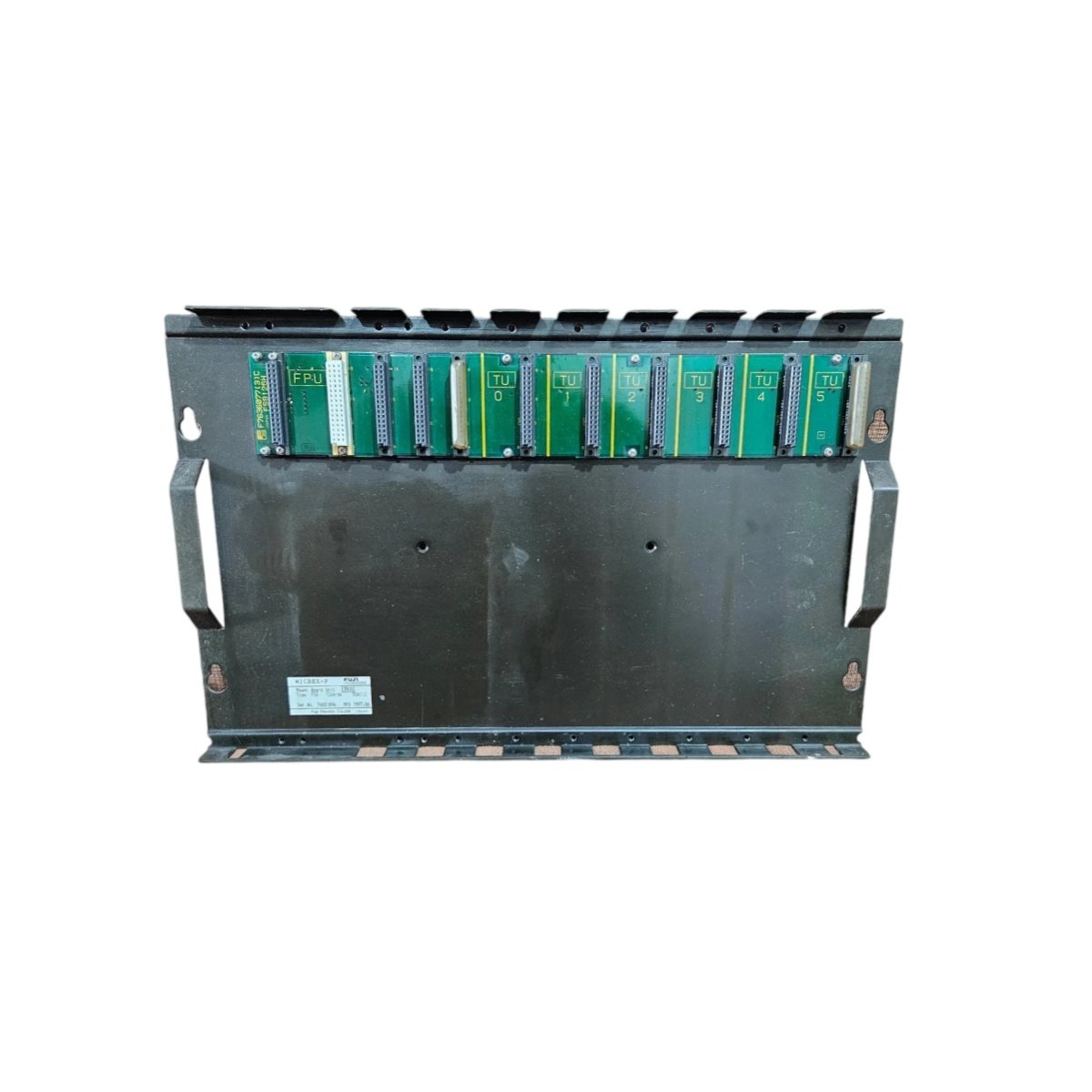

The FSB126H provides a rigid mounting platform for MICREX-F programmable controller components. This steel base board secures I/O modules and CPU units within one organized assembly. Engineers specify it when building compact control panels that require stable module fixation.

Physical Specifications

The board measures 260 mm wide and 210 mm high, with a depth of just 15 mm. Furthermore, the FSB126H weighs approximately 1.1 kg. These compact dimensions suit installations where panel depth remains constrained.

Mounting Features and Module Capacity

Eight threaded holes on the surface accept M4 screws for module attachment. Consequently, technicians mount components without drilling additional holes. The FSB126H accommodates up to six I/O modules alongside a CPU unit. This capacity supports FPU120S, FPU120H, FPU140S, and FPU150S processors.

Environmental and Operational Considerations

The anti-corrosion coating resists humidity and mild contaminants in industrial settings. Operating temperatures range from 0°C to +55°C. Storage tolerates -20°C to +70°C without degradation. Vertical mounting orientation optimizes airflow and cable routing.

Passive Construction

This unit contains a single steel plate with no active components or energy storage elements. Therefore, it requires no power supply and demands zero configuration. The passive design delivers reliable mechanical support across the MICREX-F product family.
