Product Overview

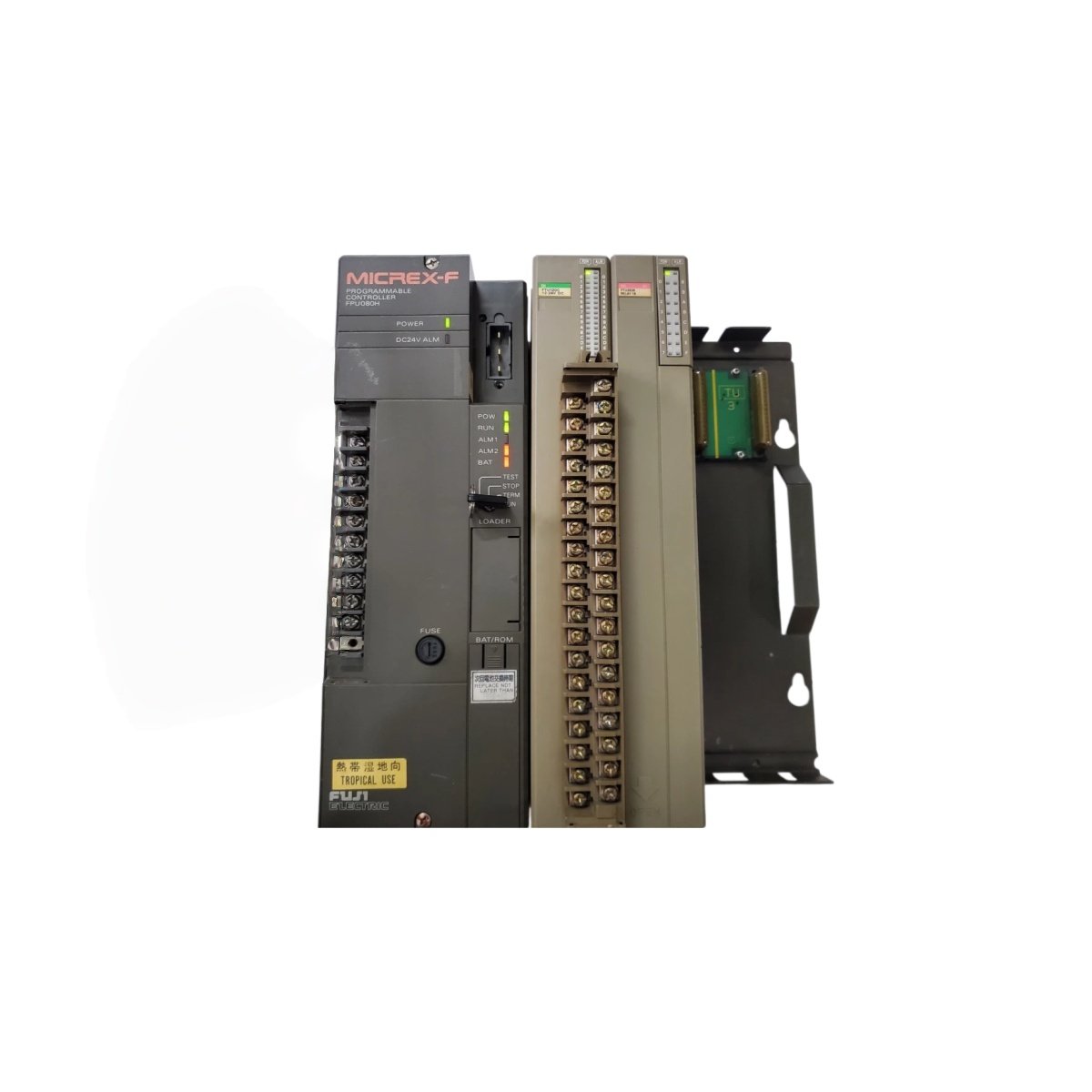

The Fuji FPU 080H-A10 provides versatile programmable logic control for industrial automation systems. This controller handles discrete and analog I/O with high-speed execution performance. It serves as the central control unit for medium-sized automation applications. The unit integrates into Fuji Electric FPU series control architectures seamlessly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FPU 080H-A10 |
| Product Type | Programmable Logic Controller |
| Processor | 32-bit high-speed microprocessor |
| Program Memory | 64 KB Flash |
| Data Memory | 32 KB RAM |
| Digital I/O Capacity | 64 inputs / 64 outputs (expandable) |
| Analog I/O | 8 inputs / 4 outputs (option-dependent) |
| Execution Speed | 0.3 ms per 1K logic instructions |
| Built-in Timers | 256 timers |
| Built-in Counters | 256 counters |
| Communication Ports | RS-232, RS-485 |
| Programming Language | Ladder logic, instruction list |
| Power Supply | 100–240 VAC or 24 VDC |
| Power Dissipation | 15 W maximum |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | –20°C to 70°C |
| Humidity Range | 10% to 90% non-condensing |
Physical Dimensions and Mounting
This PLC measures 280 mm in width, 90 mm in height, and 140 mm in depth. The unit weighs approximately 1.6 kg. It mounts vertically on a DIN rail or directly onto a panel plate. The front panel includes LED indicators for power, run, error, and I/O status. These LEDs provide immediate visual feedback on system condition.
Processing Power and Memory
The FPU 080H-A10 employs a 32-bit high-speed microprocessor for rapid control execution. It stores user programs in 64 KB of Flash memory for reliable program retention. The data memory of 32 KB RAM handles variable storage and system parameters. The CPU executes logic at 0.3 ms per 1K instructions for responsive control. It includes 256 timers and 256 counters for flexible timing and counting tasks.
I/O Capabilities and Expansion
This controller supports 64 digital inputs and 64 digital outputs as standard. It can accommodate analog I/O options with up to 8 inputs and 4 outputs. The digital inputs accept 24 VDC signals from sensors and switches. The outputs drive relays, contactors, and indicator lamps effectively. The expansion bus supports additional I/O modules for system growth.
Communication and Connectivity
Built-in RS-232 and RS-485 ports provide connectivity to programming devices and HMIs. The RS-485 port supports multi-drop networking for distributed I/O applications. The programming port allows ladder logic uploads and downloads. The controller supports Modbus communication protocol for interoperability.
Installation and System Integration
You can install this PLC on a DIN rail inside the control cabinet. Connect the main power supply to the designated input terminals. Wire the digital and analog I/O to the front-access terminal blocks. Configure the I/O addresses and system parameters using the programming software. Always verify all wiring before applying power.
Environmental Compliance
This PLC carries CE marking for industrial use. It complies with RoHS environmental directives. The unit suits standard control cabinet installations with IP20 protection.
Details
| Weight | 1.4 kg |
|---|---|
| Dimensions | 127 × 254 × 203 mm |
