Technical Overview of the Optical Converter

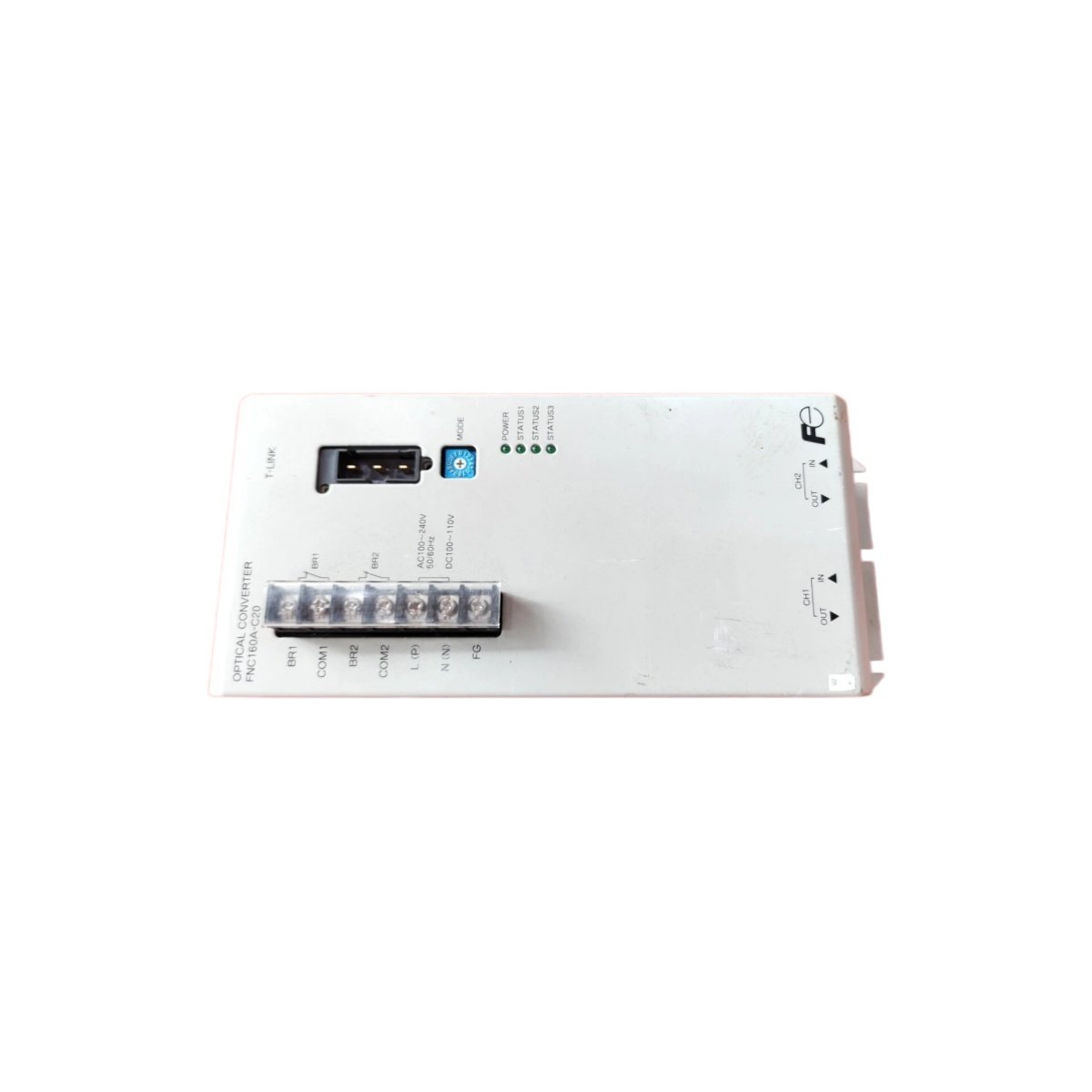

The Fuji FNC160A-C20 serves as an optical converter module for the MICREX-F controller series. This device converts electrical signals into optical signals and vice versa. It enables long-distance communication between PLCs and field devices. The design eliminates electrical interference issues in noisy industrial environments.
Key Technical Specifications
This section details the exact parameters for the Fuji FNC160A-C20 optical converter. Use these figures to ensure compatibility with your network infrastructure.
| Parameter | Specification |
|---|---|
| Part Number | FNC160A-C20 |
| Type | Optical Converter |
| Product Family | MICREX-F |
| Interface (Electrical) | RS485 |
| Interface (Optical) | Fiber Optic (Duplex) |
| Transmission Distance | Up to 2,000 meters (fiber) |
| Data Rate | Supported network-dependent |
| Connector Type (Optical) | Manufacturer-specific |
| Operating Voltage | 24V DC |
| Protection | Reverse polarity protection |
| Dimensions (W x H x D) | Approx. 70 x 90 x 60 mm |
| Weight | Approx. 0.25 kg |
| Compatibility | MICREX-F series communication networks |
Application and System Integration
This optical converter connects to the MICREX-F network via RS485. It transmits data over fiber optic cables for noise-immune communication. The Fuji FNC160A-C20 suits installations with long cable runs or high EMI. Its duplex interface supports bidirectional data flow seamlessly. Consequently, engineers can extend network reach without signal degradation.
Reliability and Performance Features
The fiber optic transmission eliminates susceptibility to electrical interference. This feature ensures reliable data exchange in heavy industrial environments. The module’s compact size mounts easily in control cabinets. System designers choose the Fuji FNC160A-C20 for robust network connectivity.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
