Technical Overview of the Positioning Module

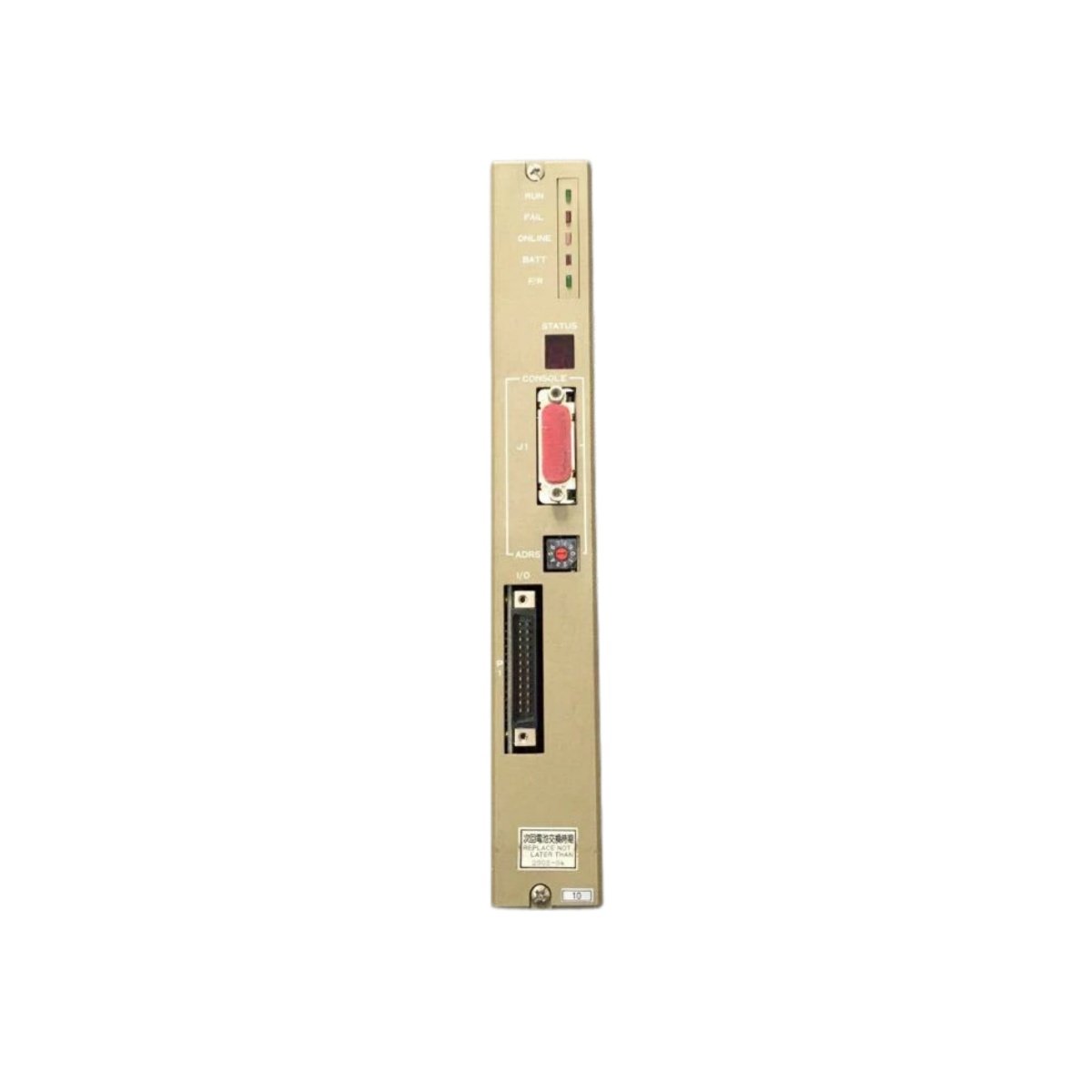

The Fuji FGU130B functions as a dedicated positioning module for the MICREX-F programmable controller series. This module controls servo and stepper motors for precise axis positioning tasks. It generates pulse trains and direction signals for motion control applications. The design supports incremental encoders for closed-loop position feedback.
Key Technical Specifications
This section details the exact parameters for the Fuji FGU130B positioning module. Use these figures to verify compatibility with your motion control requirements.
| Parameter | Specification |
|---|---|
| Part Number | FGU130B |
| Type | Positioning Module |
| Product Family | MICREX-F |
| Number of Axes | 1 Axis |
| Control Signals | Pulse / Direction, CW / CCW |
| Maximum Output Frequency | 200 kHz |
| Positioning Range | -2,147,483,648 to +2,147,483,647 pulses |
| Encoder Interface | 5V differential (phase A/B/Z) |
| Speed Control | Linear acceleration/deceleration |
| I/O Points | Multiple dedicated I/O for limit switches |
| Dimensions (W x H x D) | Approx. 70 x 90 x 60 mm |
| Weight | Approx. 0.3 kg |
| Compatibility | MICREX-F series expansion racks |
Application and System Integration
This positioning module mounts directly onto the MICREX-F backplane. It executes single-axis motion profiles in automated machinery. The Fuji FGU130B generates high-frequency pulse outputs for servo drives. Its incremental encoder input provides real-time position verification. Consequently, engineers can implement precise point-to-point movements with confidence.
Reliability and Performance Characteristics
The module handles high-frequency pulse outputs without burdening the CPU. Its dedicated design ensures consistent timing for motion commands. The robust construction withstands typical industrial vibration levels. Users select the Fuji FGU130B for reliable single-axis positioning tasks.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
