High-Density Digital Input Acquisition for Micro-SX

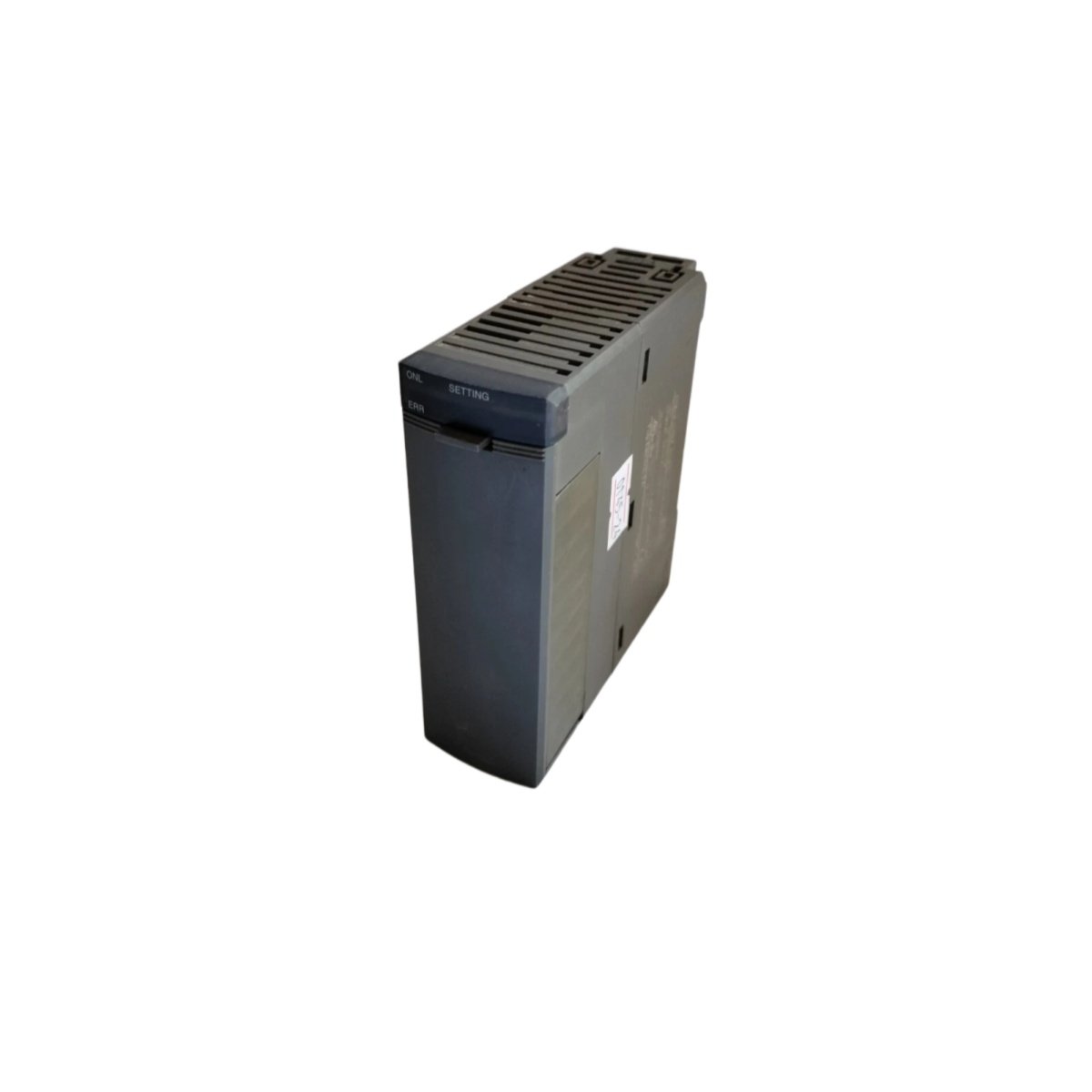

The FUJI FEH246 input module provides high-density digital signal acquisition for Micro-SX programmable controllers. This module interfaces with field devices such as limit switches, pushbuttons, and proximity sensors. Modern automation systems require reliable input handling, and this unit delivers that functionality consistently.

Input Specifications and Electrical Characteristics

This input module features 16 sinking inputs with individual LED indicators for status monitoring. Each channel accepts 24 V DC signals with a nominal current of 7 mA at 24 V. The inputs incorporate built-in debounce filters that suppress transient noise pulses. Furthermore, the module includes reverse polarity protection on the common supply terminal.

Input Circuit Design and Signal Processing

The FUJI FEH246 uses opto-isolators to separate each input channel from the internal logic. This isolation protects the CPU from external voltage spikes and ground loops. An integrated RC filter suppresses high-frequency noise on the input lines. Additionally, the module supports both sourcing and sinking sensor connections through the common terminal configuration.

Diagnostic Features and Status Indication

Individual green LEDs on the front panel display the status of each input channel. A red LED indicates a blown fuse or power supply fault condition. The module also provides a collective fault signal to the CPU for system monitoring. These diagnostic features simplify troubleshooting and reduce system downtime.

Physical Design and Installation Details

This input module features a compact 40 mm housing that saves valuable panel space. The unit weighs approximately 0.18 kilograms, allowing straightforward installation and replacement. A 20-pin connector provides access to all input terminals and the common supply. The module uses spring-clamp terminals that accept wires from 0.2 mm² to 1.5 mm².

System Integration and Addressing

You can install this input module in any slot of the Micro-SX central or expansion rack. The module automatically maps its 16 inputs to consecutive addresses in the I/O table. Users can configure input filters and interrupt settings through the programming software. The module supports hot-swapping for quick replacement without system shutdown.

Application Guidelines and Environmental Ratings

This input module operates reliably in ambient temperatures from 0°C to 55°C. The unit carries an IP20 protection rating, suitable for clean control cabinet environments. For long sensor cable runs, use shielded cables to maintain signal integrity. Always connect the common terminal to the correct polarity for proper operation.
