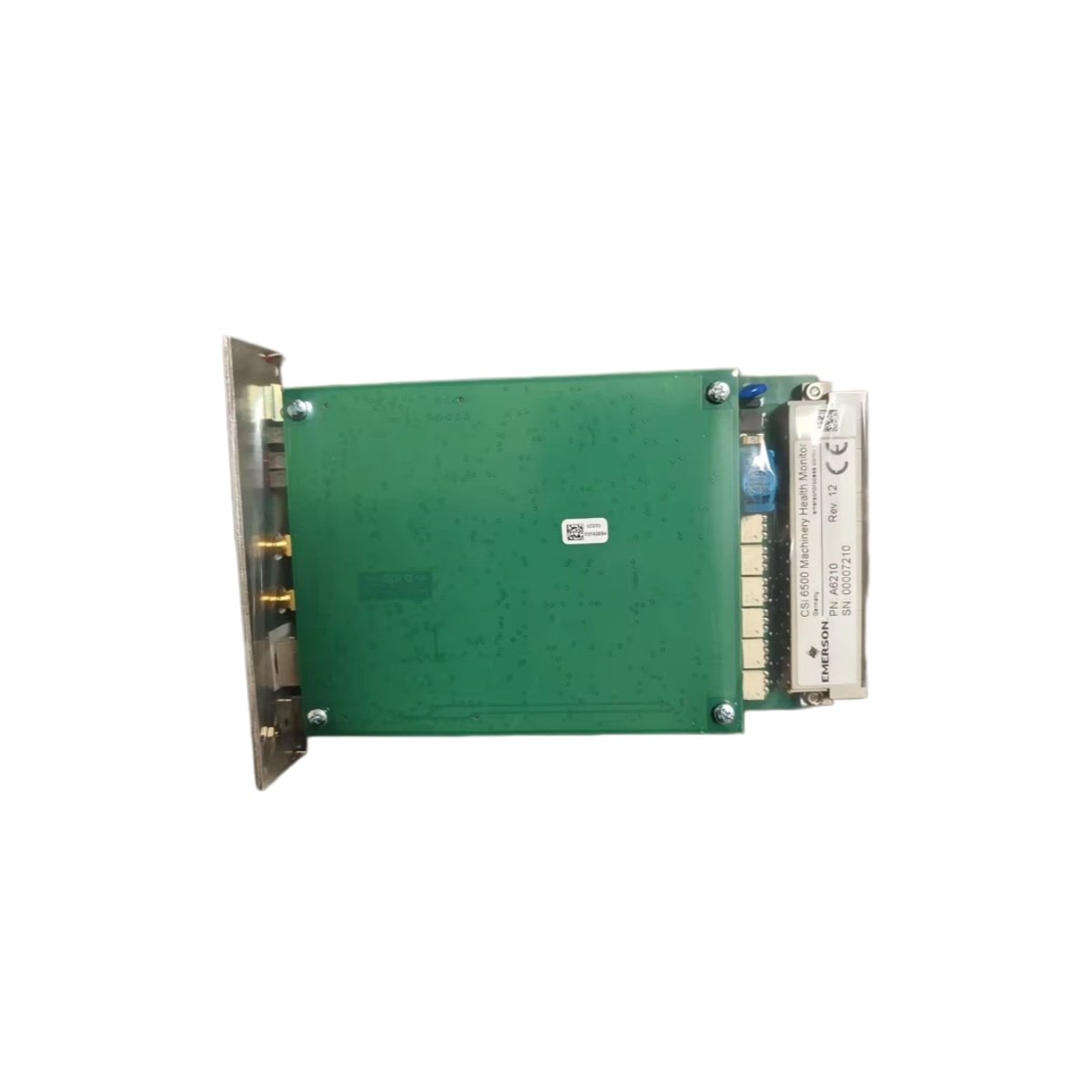

This thrust position monitor measures axial shaft movement in rotating machinery. You will find the EPRO A6210 Thrust Position Monitor providing critical protection for steam and gas turbine bearings. Its dual-channel design supports two independent proximity probe inputs.

Technical Specifications

This monitor contains two independent measurement channels with separate alarms. You can also locate four relay outputs for alert and trip functions. The EPRO A6210 Thrust Position Monitor stores no battery energy for configuration retention. Instead, it uses non-volatile memory for all setpoint parameters. Therefore, this device never requires any routine battery replacement.

Measurement Details

The EPRO A6210 Thrust Position Monitor calculates axial displacement relative to bearing housing. You can set alarm and trip thresholds independently for each channel. The monitor displays position values on the front panel bar graph. Moreover, each channel provides a separate 4-20 mA output for DCS integration. This design prevents costly turbine damage from excessive thrust movement.

Mechanical Integration and Mounting

You must mount the EPRO A6210 Thrust Position Monitor into a standard 19-inch rack or panel cutout. After positioning, secure the unit using the four front bezel screws. The monitor measures exactly 19.0 centimeters in length and 8.5 centimeters in width. Its total weight reaches approximately 1.42 kilograms for stable panel mounting. Furthermore, the front panel includes LED indicators for channel status and alarm conditions.

Environmental and Storage Guidelines

You should store this EPRO A6210 Thrust Position Monitor in a dry location away from vibration. The monitor operates reliably between -20°C and +65°C ambient temperature. Likewise, keep the unit away from conductive dust or corrosive gases. Because the monitor uses solid-state components only, it requires zero regular maintenance.
