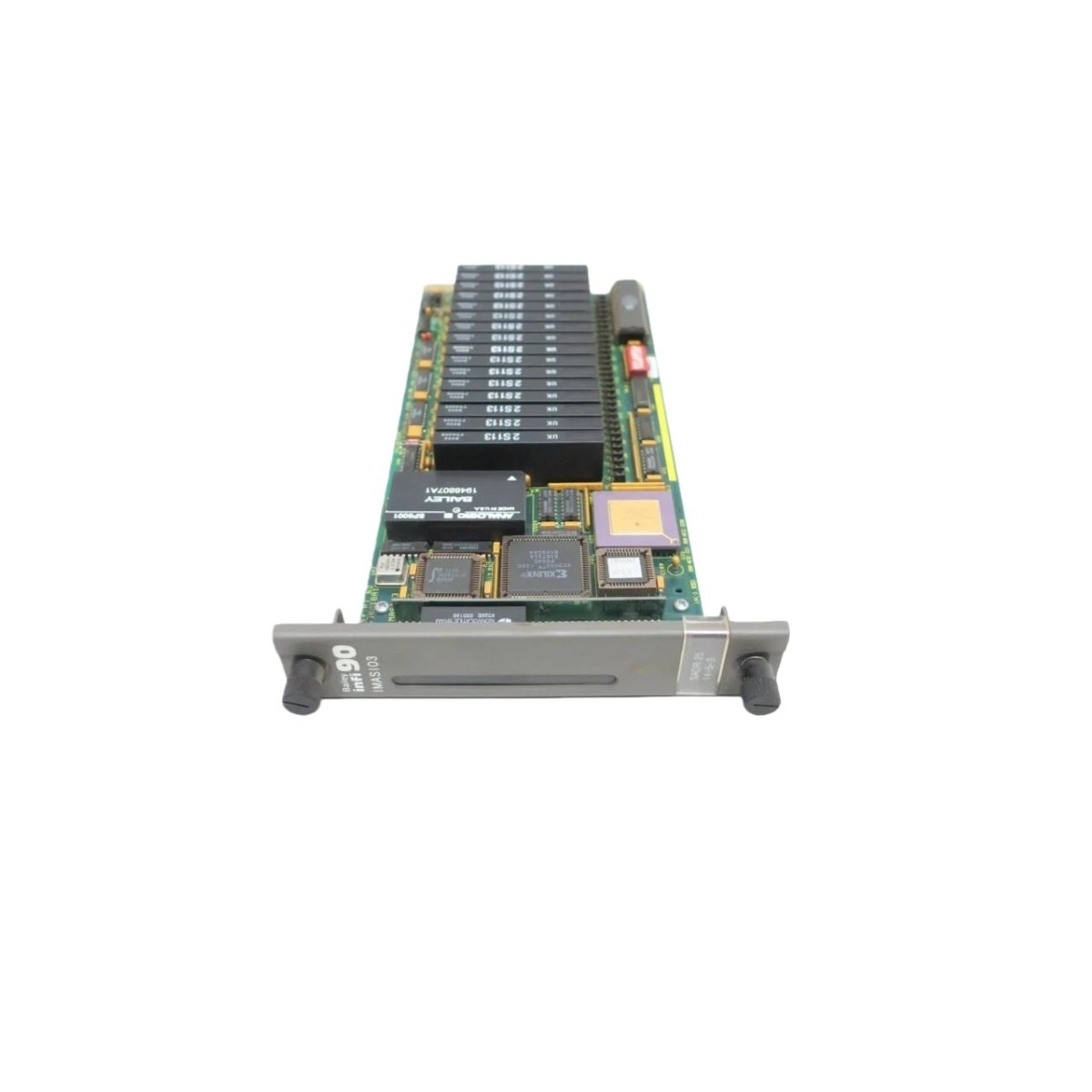

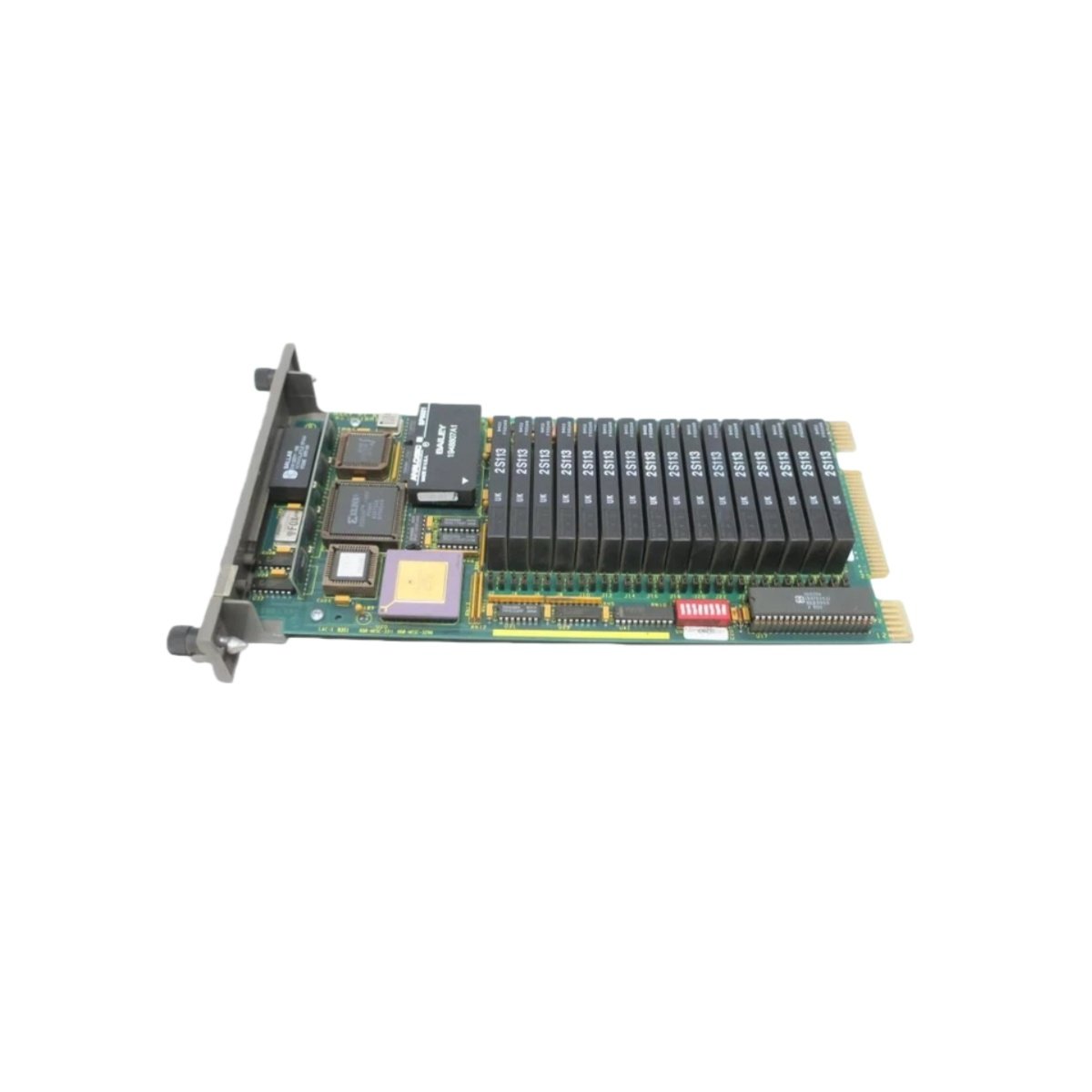

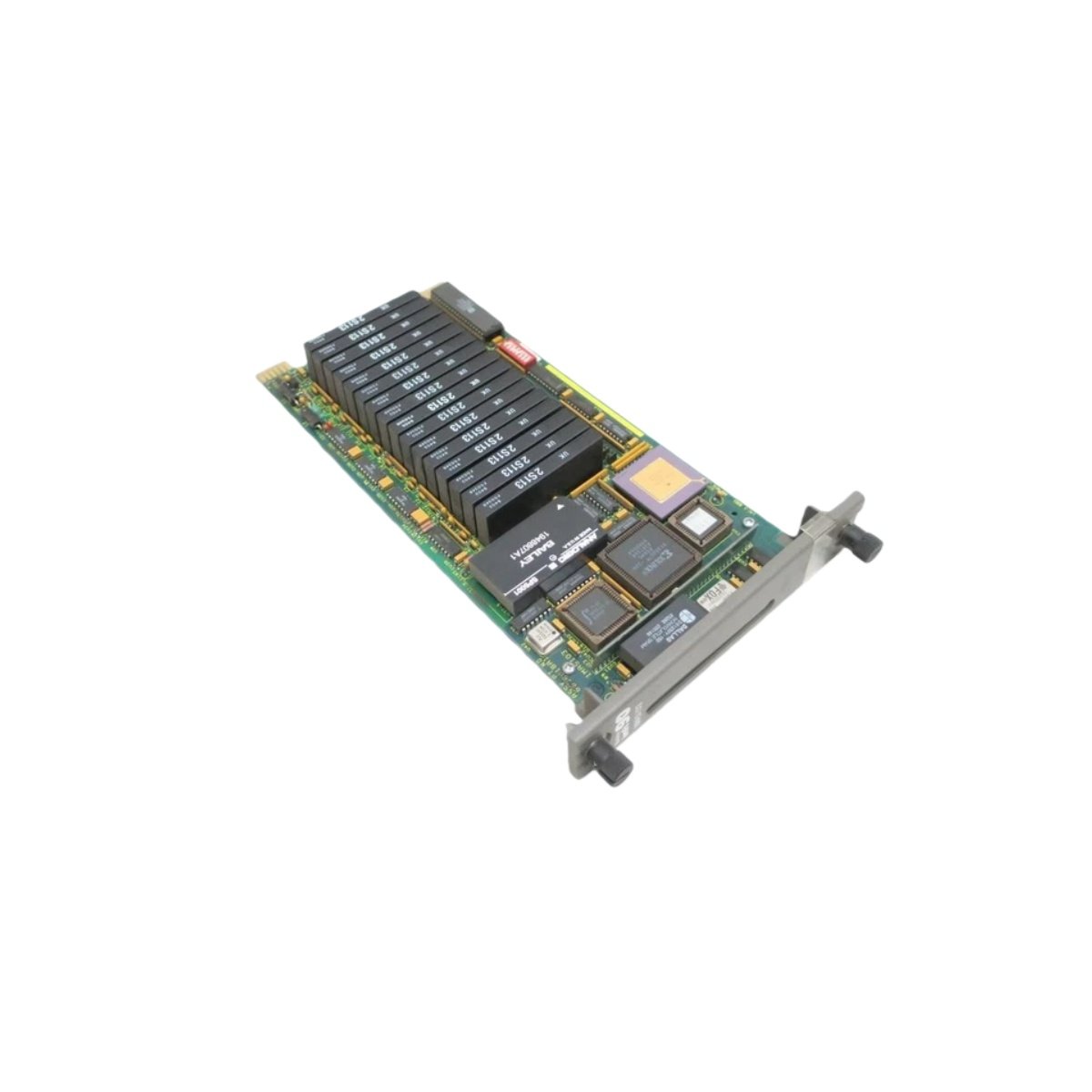

This analog input slave module acquires process signals from field sensors and transmits them to the master controller. It serves as a remote data acquisition node in distributed control architectures. The IMASI03 handles up to 16 analog input channels in a single compact unit.

Core Input Specifications

The module accepts 16 differential or 32 single-ended analog signals from thermocouples and transmitters. It supports input ranges of ±10 V, 0–20 mA, and 4–20 mA for versatile field connectivity. Each channel provides 16-bit resolution with an integrated programmable gain amplifier. Furthermore, the unit achieves a conversion rate of 1000 samples per second across all channels. It communicates with the host system via a dedicated slave communication protocol.

Connectivity and Interface Features

The front panel includes a 50-pin ribbon connector for all field wiring terminations. This connector enables rapid attachment to external terminal blocks and signal conditioning units. Additionally, the IMASI03 features a 9-pin D-sub port for configuration and diagnostics. A bank of 32 green LEDs indicates the real-time status of each input channel. Engineers can address the module using the onboard rotary switches for network identification.

Energy Storage and Data Integrity

An integrated supercapacitor provides 8 joules of backup energy for volatile configuration memory. This storage retains calibration data and setup parameters for up to 72 hours. Consequently, the module preserves critical settings during temporary power interruptions. The unit also includes 1000 V RMS galvanic isolation between field inputs and the system logic.

Mechanical Specifications and Environmental Compliance

The PCB measures 24.0 x 12.5 x 3.0 centimeters and weighs approximately 500 grams. Its compact design occupies a single slot in ABB’s standard Eurocard subracks. The operating temperature range spans -20°C to +60°C with 95% non-condensing humidity tolerance. Moreover, the IMASI03 meets IEC 61000-4-2 ESD immunity requirements at level 4.

Technical Parameters Summary

System Integration and Application Areas

This slave module integrates seamlessly with ABB’s AC 800M controllers and distributed I/O networks. It supports both cyclic and acyclic data exchange with the host processor. The unit automatically performs cold-junction compensation for thermocouple measurements. Industries such as chemical processing, power generation, and water treatment benefit from its precision.

Summary

The IMASI03 provides reliable analog input acquisition for remote automation applications. Its high channel density, accurate conversion, and robust isolation ensure trustworthy measurements. This module represents an excellent choice for expanding I/O capacity in control systems.
