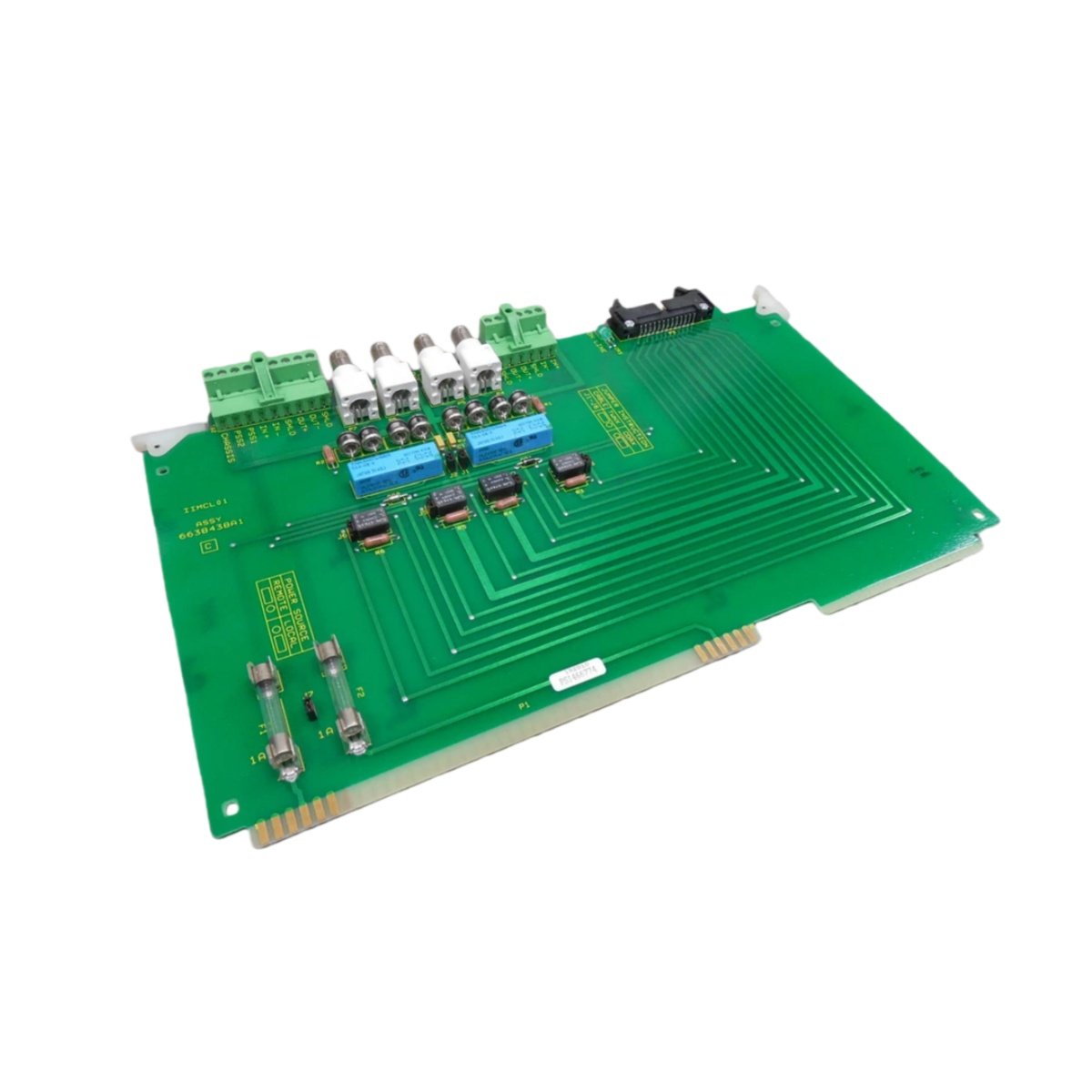

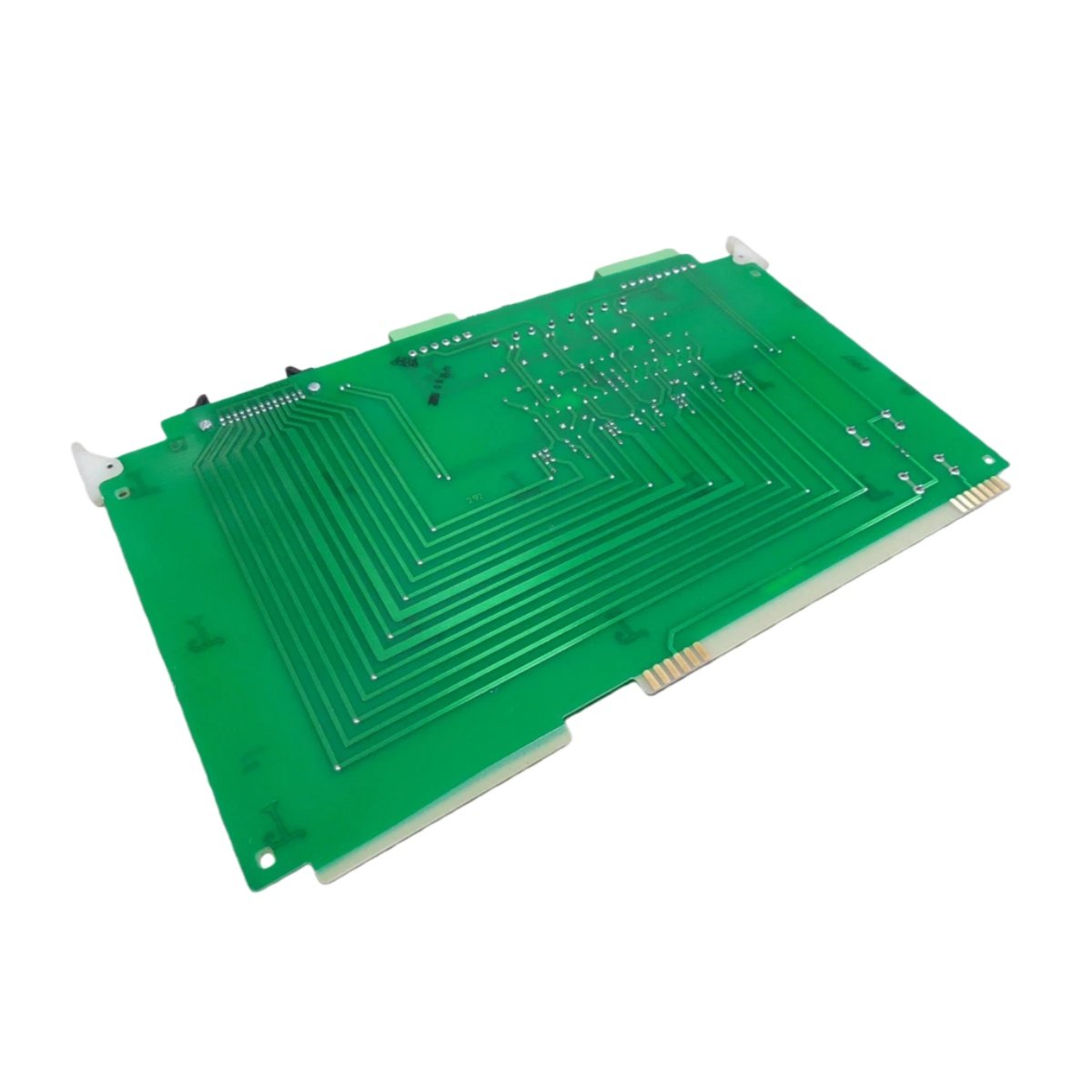

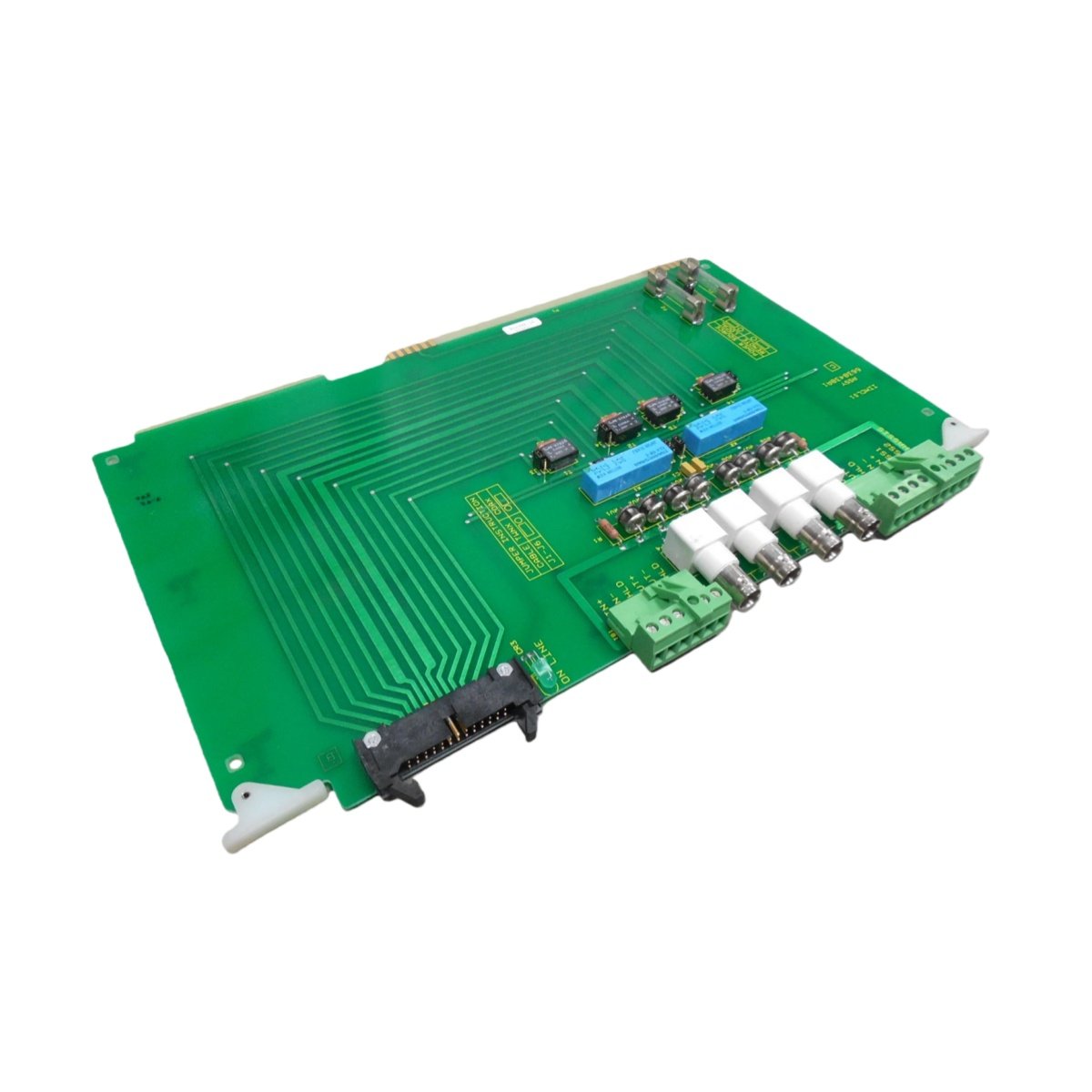

This termination board provides a centralized interface for connecting fieldbus cables to control system adapters. It simplifies wiring management and ensures signal integrity across distributed automation networks. The IIMCL01 supports both PROFIBUS DP and RS-485 communication protocols.
Core Functional Specifications
The board accepts up to 12 fieldbus trunk cables through its 24 screw-terminal blocks. Each terminal block accommodates wire gauges from 0.2 to 2.5 mm² for flexible field connectivity. Furthermore, the unit incorporates integrated bus termination resistors with enable/disable jumpers. These jumpers allow engineers to activate or deactivate line termination as network topology dictates. The board also provides galvanic isolation of 1500 V RMS between field and control sides.
Connectivity and Signal Conditioning
The front panel features a 25-pin D-sub connector for direct connection to the system adapter card. This connector carries both transmit and receive signals along with shield connections. Additionally, the IIMCL01 includes 24 bi-colored status LEDs for monitoring each channel’s activity. A four-position DIP switch configures the operating mode, baud rate, and slave addressing. The unit also supplies 5 V DC power to active fieldbus components via the cable.
Mechanical Design and Installation Details
The PCB measures 30.0 x 20.0 x 3.5 centimeters and weighs approximately 800 grams. Its robust fiberglass substrate provides excellent mechanical stability and thermal resistance. The board mounts directly inside standard 19-inch control cabinets using four M4 screws. Moreover, the IIMCL01 includes clearly labeled terminal designations for error-free field wiring.
Technical Parameters Summary
| Parameter | Specification |
|---|---|
| Model | ABB IIMCL01 |
| Fieldbus Support | PROFIBUS DP, RS-485 |
| Terminal Blocks | 24 x screw-type, 0.2–2.5 mm² |
| Trunk Connections | Up to 12 fieldbus cables |
| Termination Resistors | Integrated, jumper-selectable |
| Isolation Voltage | 1500 V RMS |
| Host Interface | 25-pin D-sub female |
| Status Indicators | 24 x bi-colored LEDs |
| Configuration | 4-position DIP switch |
| Auxiliary Power Output | 5 V DC / 200 mA |
| PCB Material | FR-4 fiberglass |
| Dimensions (W x H x D) | 30.0 x 20.0 x 3.5 cm |
| Weight | 800 g |
| Mounting | 4 x M4 screws |
| Operating Temperature | -10°C to +55°C |
| Certifications | CE, UL, CSA |
System Integration and Application Scenarios
This termination board connects seamlessly with ABB’s AC 800M controllers and S800 I/O systems. It simplifies the physical layer implementation in complex multi-drop fieldbus networks. The unit’s removable terminal blocks facilitate quick cable replacement without rewiring. Process automation, material handling, and building management systems rely on its dependable performance.
Summary
The IIMCL01 offers a practical and cost-effective termination solution for industrial fieldbus installations. Its comprehensive connectivity, diagnostic feedback, and robust construction ensure reliable network operation. This board serves as an essential component for any distributed control architecture.
Details
| Weight | 0.8 kg |
|---|---|
| Dimensions | 300 × 200 × 35 mm |
