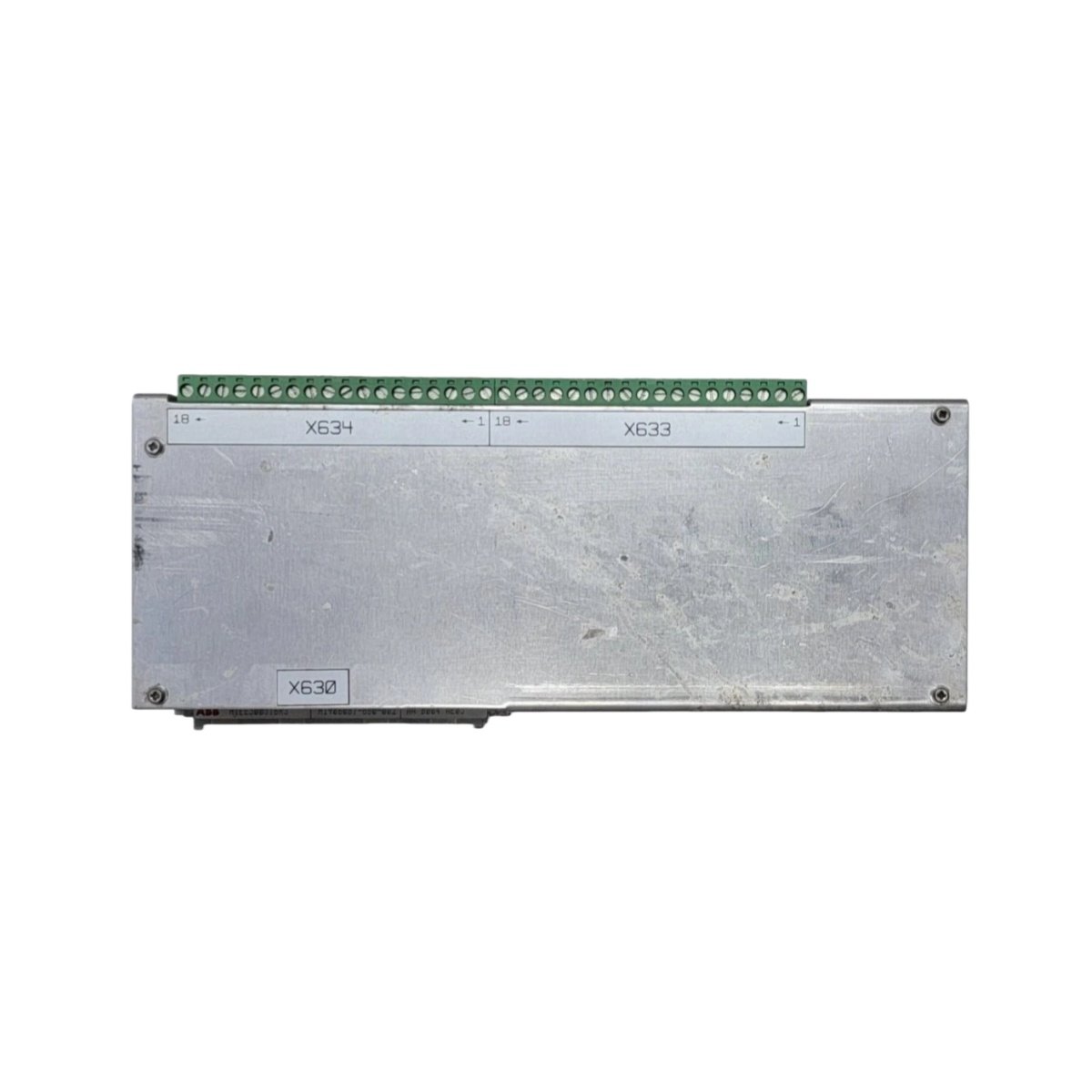

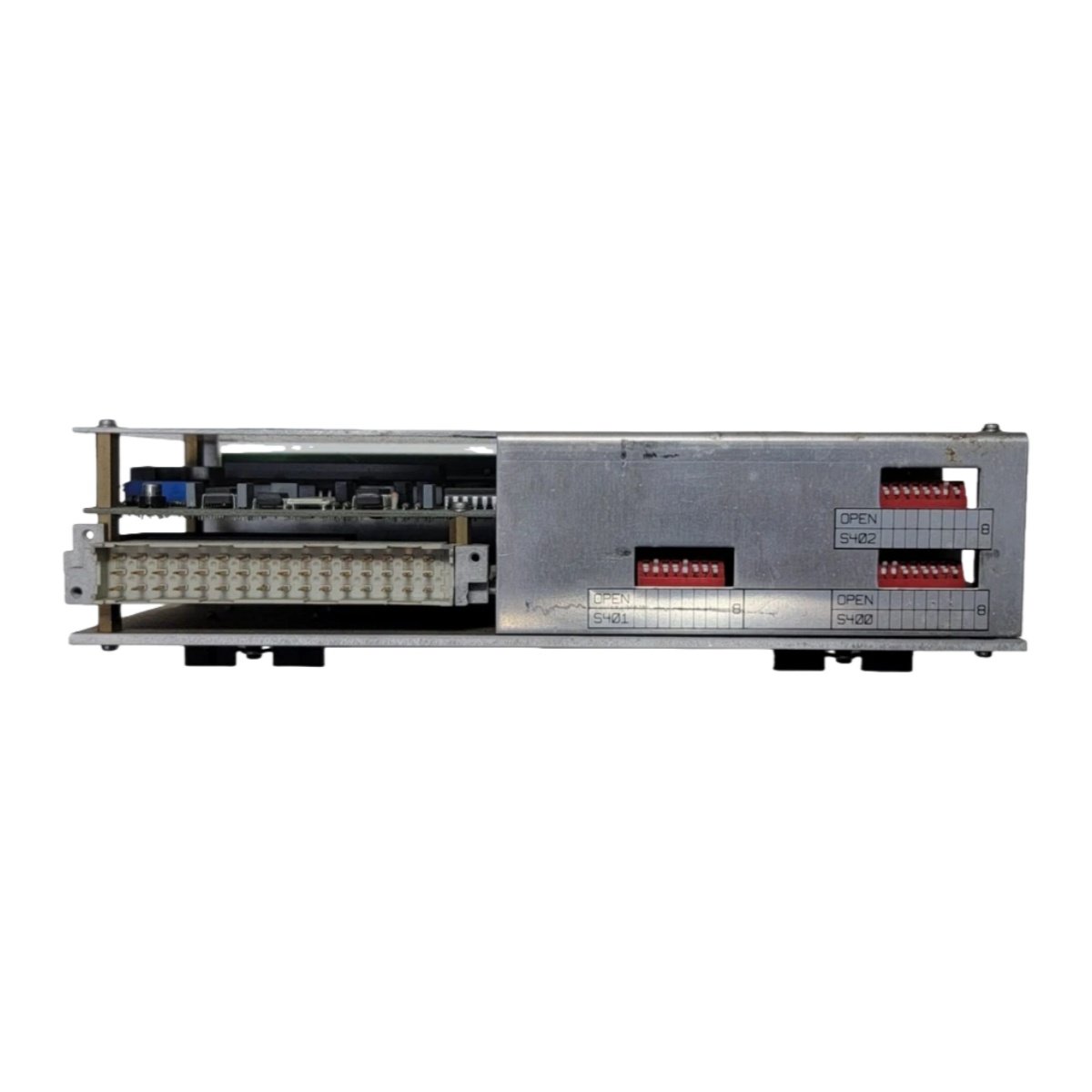

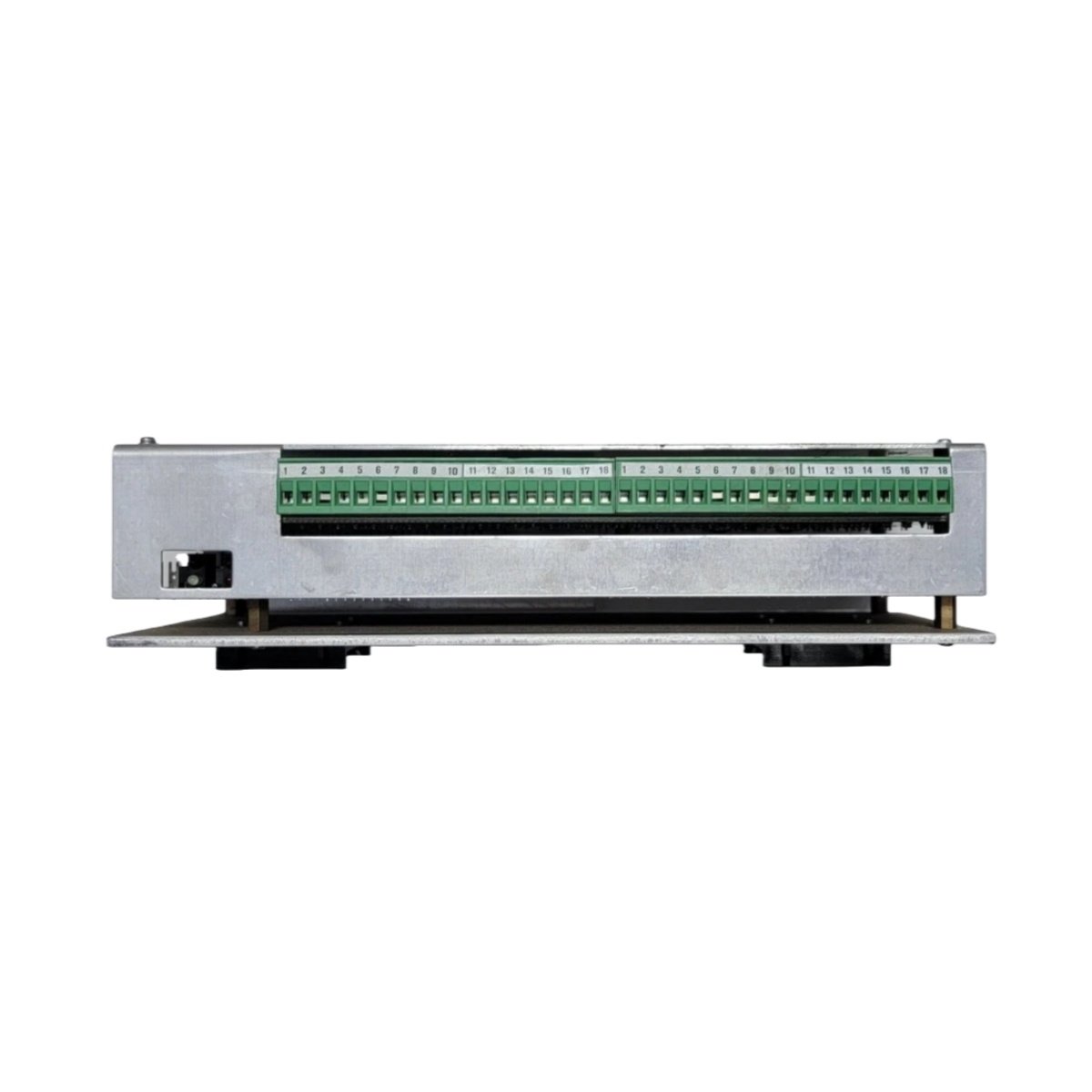

Versatile Communication Bridge for Field Integration
This interface module connects field devices to the ABB Symphony Plus control system. It handles protocol conversion and data routing between different network layers. Many facilities use this unit to integrate third-party equipment seamlessly. The module provides a reliable gateway for diverse communication requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HIEE400961R1 HI906153-860-023 UFB009AE01 |
| Dimensions | 270 mm × 45 mm × 185 mm (W × H × D) |
| Weight | 0.80 kg |
| Power Supply | 24 V DC ±10% |
| Power Consumption | 6 W typical |
| Communication Interfaces | 2 × RS-232, 2 × RS-485, 1 × Ethernet |
| Ethernet Speed | 10/100 Base-T (auto-negotiating) |
| Serial Baud Rate | 300 bps to 115.2 kbps |
| Data Formats | 7/8 data bits, 1/2 stop bits, parity configurable |
| Protocol Support | Modbus RTU, Modbus TCP, ABB proprietary |
| Message Buffer | 512 KB onboard memory |
| Connected Devices | Up to 32 field devices per interface |
| Data Transfer Rate | 1,000 messages per second (peak) |
| Diagnostic Logging | 256 event entries (time-stamped) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Status Indicators | 6 LEDs (Power, Run, LAN, Serial A, Serial B, Error) |
| Terminal Type | 37-pin D-sub and RJ45 connectors |
| Certifications | CE, UL, CSA |
Interface Configuration and Connectivity Options
This module offers five communication ports for flexible connectivity. Two RS-232 ports support point-to-point connections with local devices. Two RS-485 ports enable multi-drop networks with up to 32 nodes. A single Ethernet port provides high-speed access to plant-wide networks.
Protocol Handling and Data Routing
The unit supports Modbus RTU and Modbus TCP for third-party integration. It also handles ABB proprietary protocols for seamless system compatibility. Message buffering of 512 KB prevents data loss during peak traffic. The module routes data intelligently between connected field devices and the controller.
Data Throughput and Message Processing
This interface processes up to 1,000 messages per second. The onboard memory buffer stores transient data for smooth operation. Serial ports operate at speeds from 300 bps to 115.2 kbps. Configuration options include adjustable data bits, stop bits, and parity settings.
Power Consumption and Energy Characteristics
The unit draws approximately 6 W from the 24 V DC supply. This low power consumption reduces cabinet heat load significantly. The module contains no internal batteries or supercapacitors. External power provides all necessary energy for communication functions.
Mechanical Construction and Physical Dimensions
This board measures 270 mm wide with a 45 mm profile. Weighing 0.80 kg, it fits standard ABB rack positions. A 37-pin D-sub connector handles all serial I/O connections. RJ45 jacks provide convenient Ethernet cable termination.
Status Indication and Diagnostics
Six front-panel LEDs deliver real-time operational visibility. Power and Run indicators confirm normal module status. LAN and Serial LEDs show active communication on each port. An Error LED alerts operators to configuration or network faults.
Diagnostic Logging and Event Recording
The module logs up to 256 events with precise time-stamps. This diagnostic capability helps troubleshoot intermittent communication issues. Engineers can retrieve logs through the system engineering tools. This feature reduces mean time to repair significantly.
Regulatory Certifications
The HIEE400961R1 HI906153-860-023 UFB009AE01 holds CE, UL, and CSA certifications. These approvals ensure compliance with international industrial standards. Each unit undergoes functional testing before leaving the factory. This quality process guarantees reliable field performance.
Details
| Weight | 0.8 kg |
|---|---|
| Dimensions | 270 × 45 × 185 mm |
