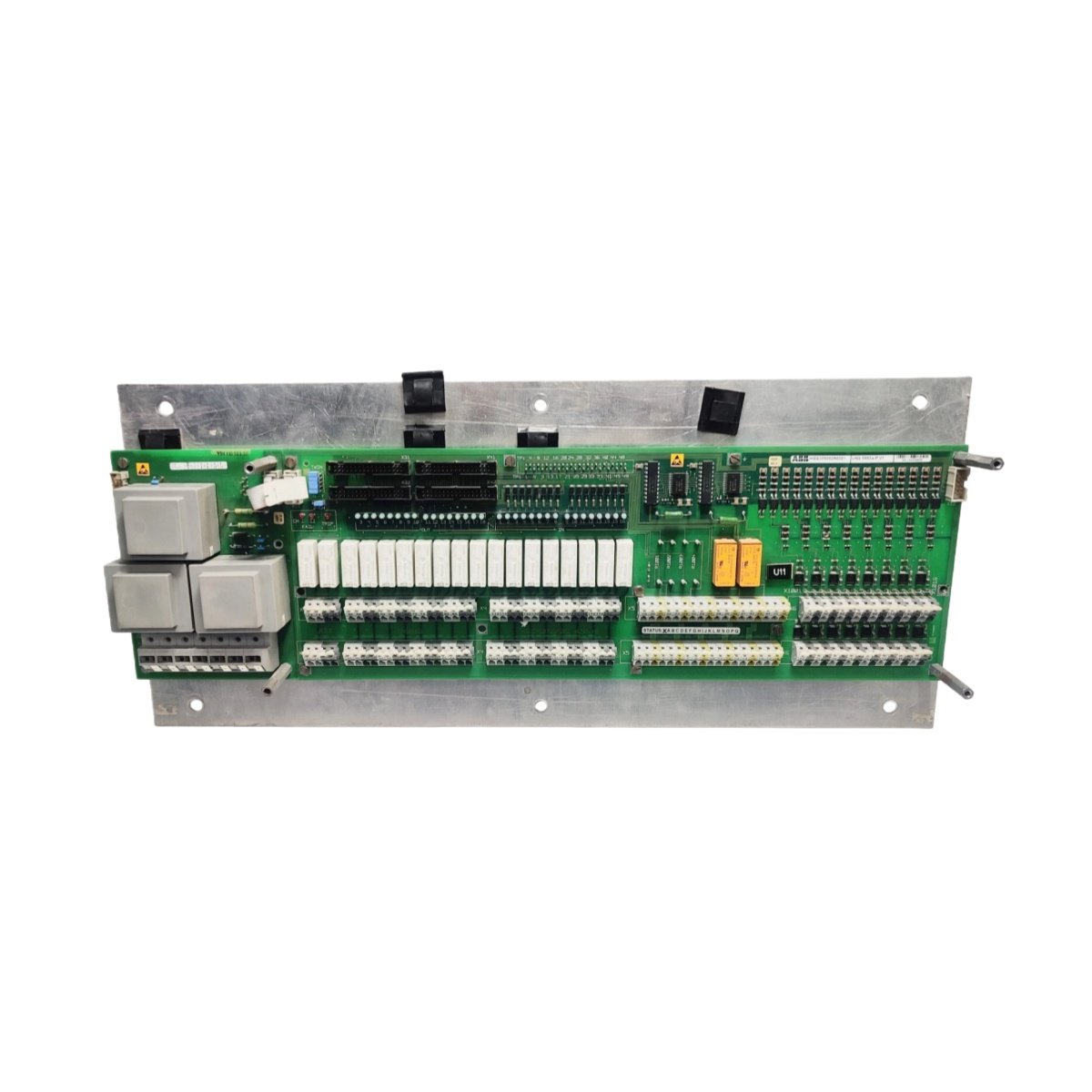

Versatile Digital Interface for Symphony Plus Systems
This card provides a configurable mix of digital inputs and outputs for ABB distributed control systems. It serves as a flexible interface between field devices and the controller. Many plants deploy this module for discrete signal monitoring and actuation tasks. The unit offers reliable performance in demanding power generation and process applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HIEE305082R1 |
| Dimensions | 270 mm × 45 mm × 185 mm (W × H × D) |
| Weight | 0.85 kg |
| Power Supply | 24 V DC ±10% |
| Power Consumption | 8 W typical |
| Digital Inputs | 16 channels (24 V DC, sink/source) |
| Digital Outputs | 16 channels (24 V DC, 0.5 A per channel) |
| Input Voltage Range | 0 V to 30 V DC |
| Input ON Threshold | ≥15 V DC |
| Input OFF Threshold | ≤5 V DC |
| Input Current | 5 mA typical at 24 V DC |
| Output Type | Solid-state (MOSFET) |
| Output Current | 0.5 A continuous per channel |
| Output Surge Current | 1.5 A for 10 ms |
| Output ON Resistance | ≤0.5 Ω |
| Isolation Voltage | 1,500 V AC (I/O to logic) |
| Response Time | ≤1 ms (inputs), ≤0.5 ms (outputs) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Status Indicators | 32 LED indicators (one per channel) |
| Terminal Type | 2 × 37-pin D-sub connectors |
| Certifications | CE, UL, CSA |
Input Channel Configuration
This card features 16 digital input channels for field contact monitoring. Each channel accepts 24 V DC signals from switches, pushbuttons, and proximity sensors. The inputs support both sink and source wiring configurations. Individual input filters eliminate noise and prevent false triggering.
Output Channel Design and Load Handling
The card provides 16 solid-state output channels for driving actuators and indicators. Each output delivers 0.5 A continuous current at 24 V DC. MOSFET technology ensures fast switching and long operational life. The outputs handle surge currents up to 1.5 A for 10 milliseconds.
Power Architecture and Energy Efficiency
The module draws approximately 8 W under full operating load. Onboard power regulation ensures stable operation despite supply variations. The card stores no internal energy for backup purposes. Efficient power management reduces heat generation within the cabinet.
Mechanical Construction and Physical Dimensions
This unit measures 270 mm wide with a slim 45 mm profile. Weighing 0.85 kg, the card fits standard ABB rack systems. Two 37-pin D-sub connectors provide the external signal interface. The board mounts securely using the system backplane connections.
Status Indication and Diagnostic Capabilities
Thirty-two individual LEDs display the real-time state of each channel. Green LEDs indicate active inputs while yellow LEDs show active outputs. This comprehensive visual feedback simplifies system commissioning and troubleshooting. Maintenance personnel can quickly identify channel-level faults.
Isolation and Noise Protection
Galvanic isolation of 1,500 V AC protects the logic side from field transients. This high isolation prevents ground loops and improves measurement integrity. The card meets stringent industrial EMC requirements. Reliable operation continues even in high-interference environments.
Regulatory Approvals and Quality Standards
The HIEE305082R1 carries CE, UL, and CSA certifications for global use. These approvals confirm compliance with applicable safety and performance standards. Each unit undergoes factory testing before delivery. This quality commitment ensures long-term field dependability.
Details
| Weight | 0.85 kg |
|---|---|
| Dimensions | 270 × 45 × 185 mm |
