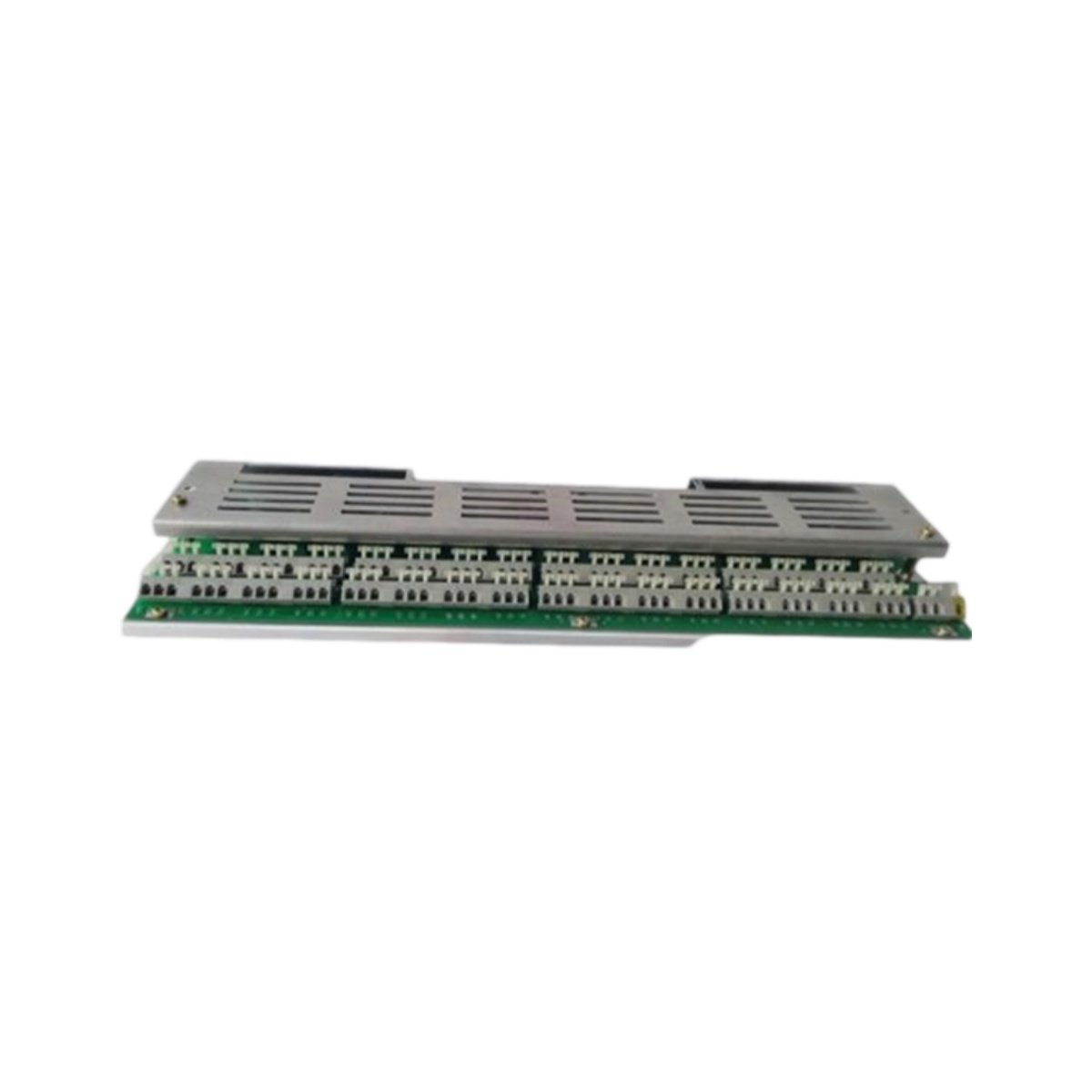

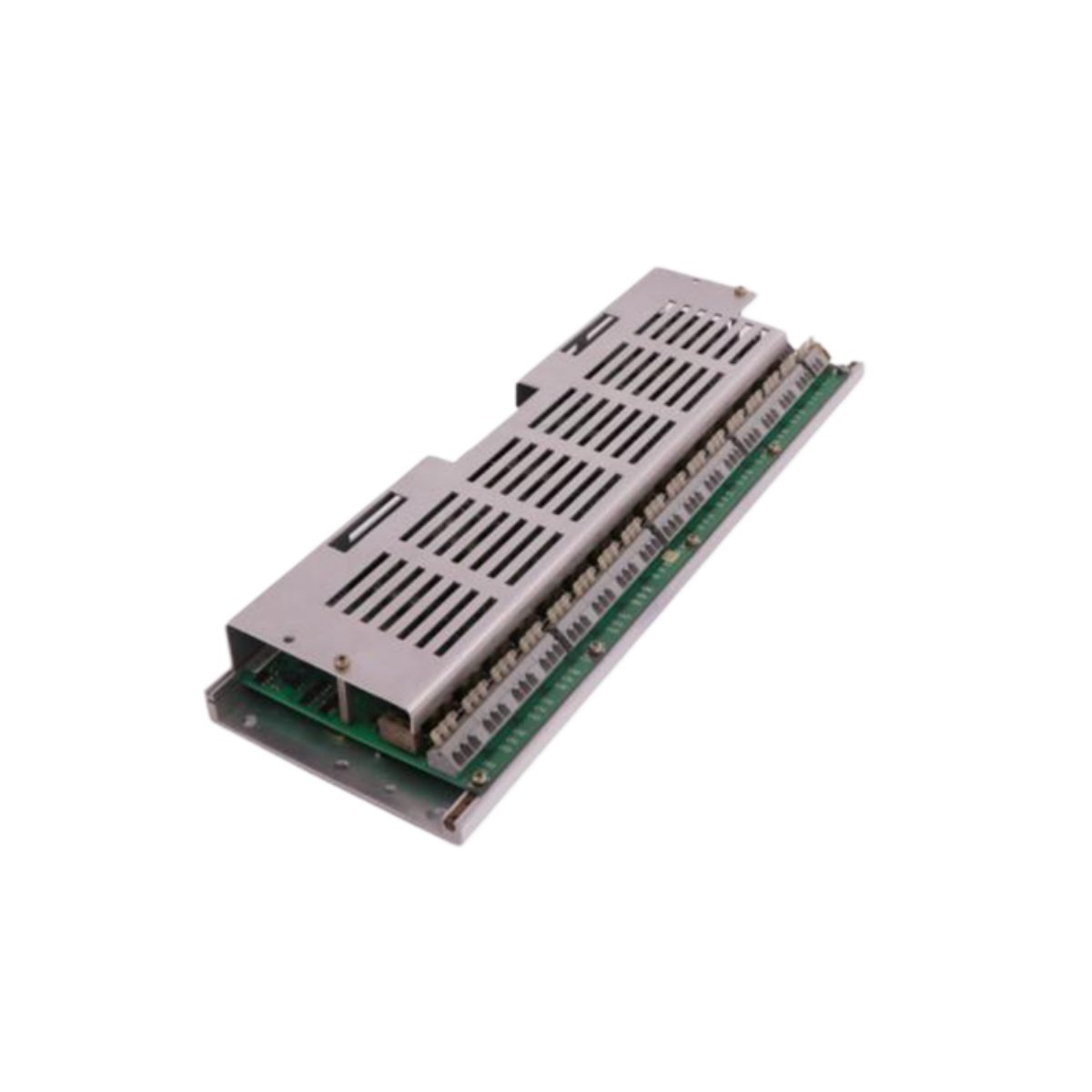

The ABB HIEE300910R0001 UFC092BE01 input module captures 16 digital signals from field devices. This unit connects sensors, switches, and pushbuttons to the control system. The module provides reliable signal conditioning and electrical isolation for each channel.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital input module |
| Model Code | UFC092BE01 |
| Number of Inputs | 16 channels (grouped in 2 x 8) |
| Input Voltage | 24V DC (20.4V – 28.8V) |
| Input Current | 5 mA per channel (typical) |
| Input Impedance | 4.7 kΩ |
| Signal Types | Sink or source (configurable per group) |
| Response Time | 2 ms (ON to OFF), 2 ms (OFF to ON) |
| Isolation | 500V DC (optocoupler per channel) |
| Dimensions (W x H x D) | 185 x 120 x 40 mm |
| Weight | 0.45 kg |
| Internal Components | 16 x optocouplers, 2 x shift registers, 1 x buffer IC |
| LED Indicators | 16 x green (per channel), 1 x green (power) |
| Connector Type | 40-pin ribbon cable (IDC) |
| Field Terminals | 2 x 10-position screw-clamp blocks |
| Power Supply | 24V DC (from backplane or external) |
| Power Consumption | 5V DC / 100 mA, 24V DC / 40 mA |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | DIN rail (35mm) |
| Approvals | CE, UL, CSA |
High-Density Digital Input Acquisition
The ABB HIEE300910R0001 UFC092BE01 provides 16 digital inputs in a compact housing. This high-density design saves valuable space in control cabinets. Each channel accepts 24V DC signals from standard industrial sensors. Users can configure each 8-channel group independently as sink or source type.
Fast Response for Time-Critical Applications
The module delivers a 2 ms response time for both ON and OFF transitions. This rapid response suits applications requiring quick detection of limit switches or safety signals. The shift registers capture input states simultaneously for consistent data acquisition. A buffer IC holds the data until the host controller reads it.
Per-Channel Optocoupler Isolation
Galvanic isolation of 500V DC separates each input channel from the internal logic. This per-channel isolation prevents ground loops and protects against voltage transients. Sixteen optocouplers provide the isolation barrier for every individual input. This design ensures that a fault on one channel does not affect others.
Visual Status Indication for Quick Diagnostics
Sixteen green LEDs show the active status of each input channel individually. A separate green power LED confirms the module receives 24V DC supply. Operators can verify signal presence without using a multimeter. These visual indicators significantly simplify commissioning and troubleshooting tasks.
Flexible Field Wiring and Connection
Two 10-position screw-clamp blocks provide field terminals for all 16 inputs. Each terminal accepts wires from 0.2 mm² to 2.5 mm² for secure connections. A 40-pin IDC ribbon cable header connects the module to the host system. This cable interface transfers input data and power between modules.
Low Power Consumption for Energy Efficiency
The ABB HIEE300910R0001 UFC092BE01 draws only 100 mA from the 5V DC supply. The 24V DC field supply consumes just 40 mA for all 16 channels. This low power draw minimizes heat generation inside the cabinet. The module operates reliably across -20°C to +70°C ambient temperatures.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
