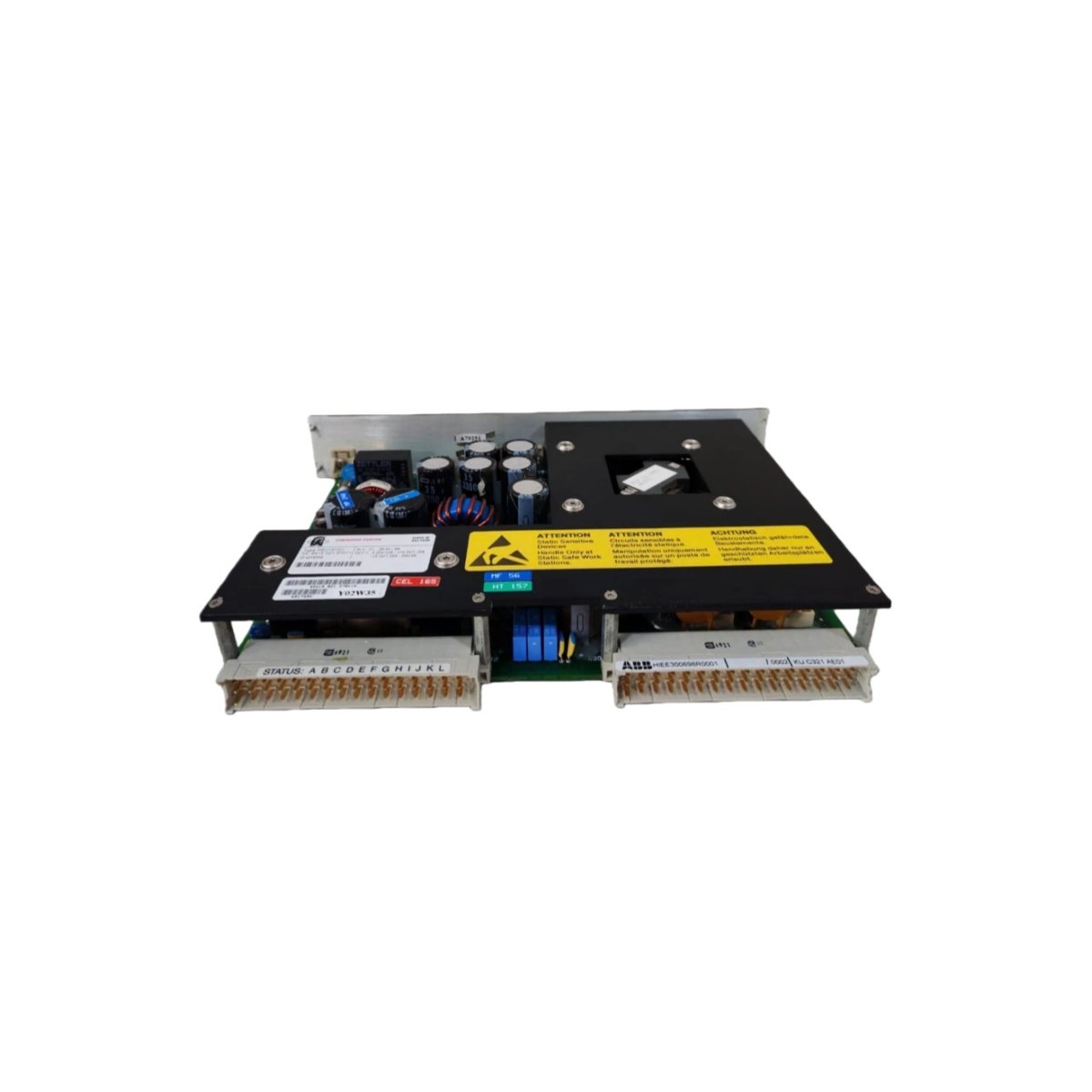

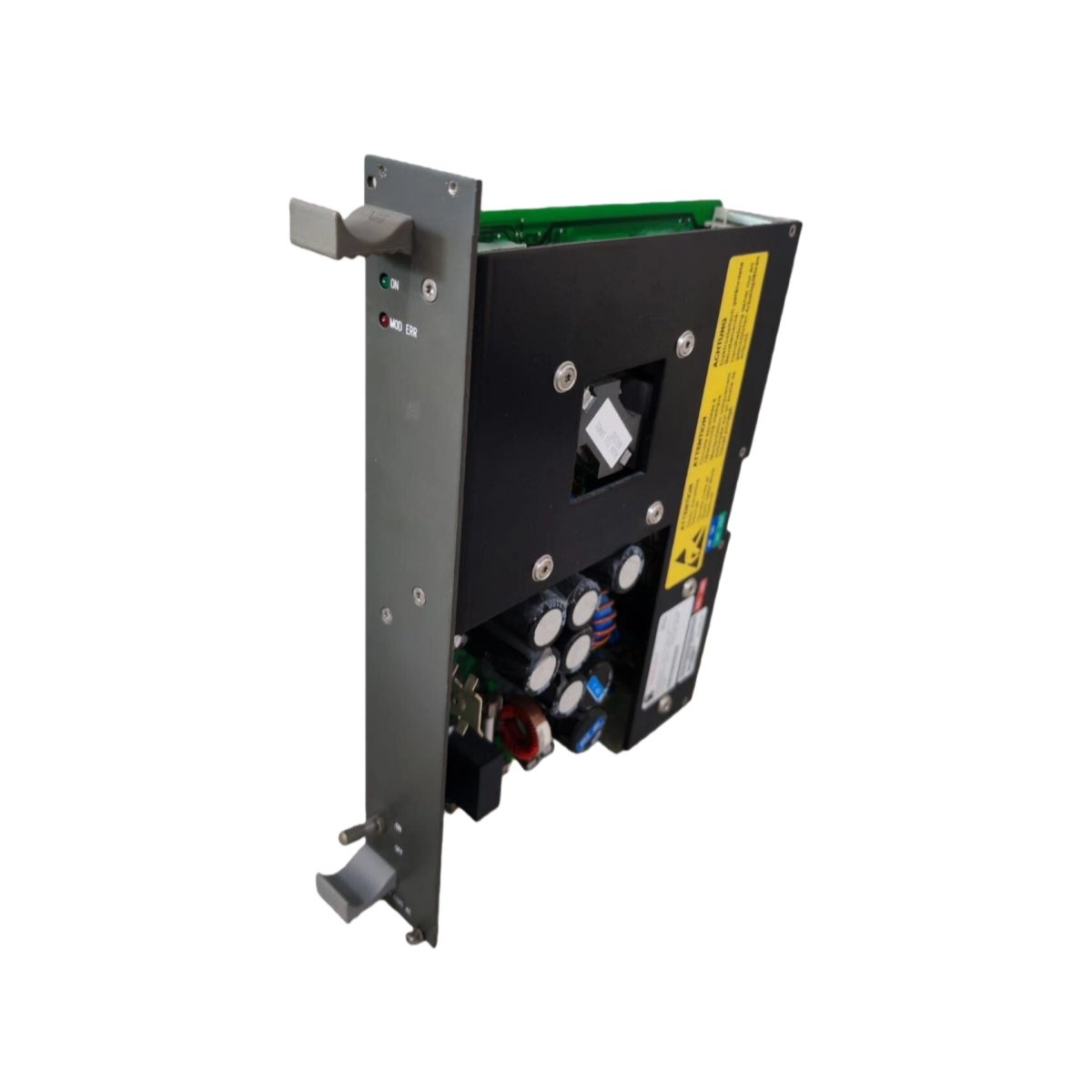

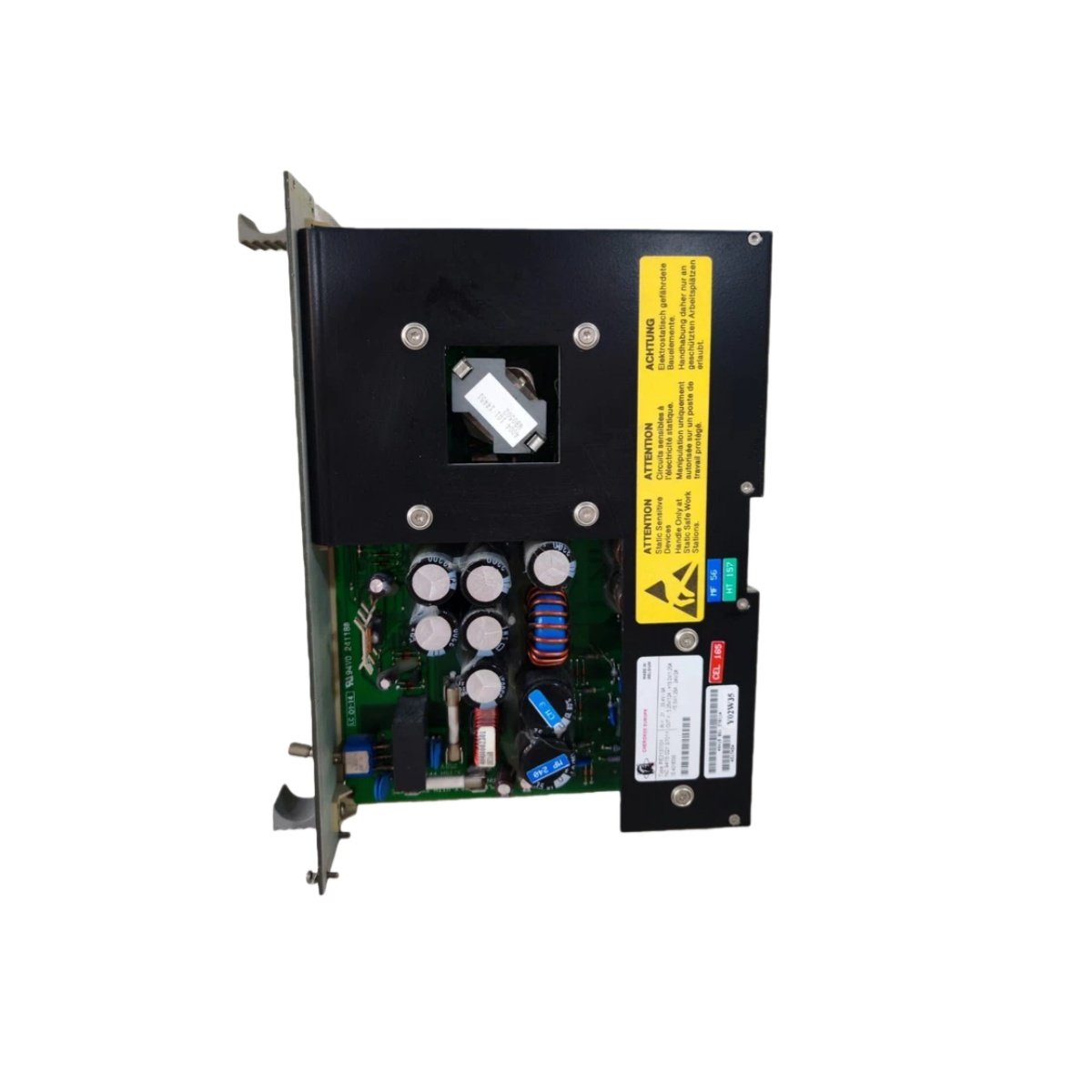

The ABB HIEE300698R0001 KUC321AE01 digital governor module provides precise speed and load control for industrial turbines. This advanced control unit manages steam and gas turbine operations with high reliability. The module integrates multiple I/O channels and communication interfaces for comprehensive turbine oversight.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital governor control module |
| Model Code | KUC321AE01 |
| Dimensions (W x H x D) | 300 x 250 x 40 mm |
| Weight | 2.1 kg |
| Analog Inputs | 16 x 4-20mA / 0-10V (configurable) |
| Analog Outputs | 8 x 4-20mA (control signals) |
| Digital Inputs | 16 x 24V DC (isolated) |
| Digital Outputs | 8 x 24V DC / 1A (relay) |
| Speed Sensor Inputs | 3 x magnetic pickups (MPU) or proximity probes |
| Actuator Outputs | 2 x 4-20mA (redundant) |
| Communication Ports | 2 x RS-485 (Modbus), 1 x Ethernet (TCP/IP) |
| Internal Component Count | 2 x 32-bit DSPs, 4 x optocoupler arrays, 6 x relay drivers, 1 x 512KB SRAM |
| Memory | 512 KB SRAM, 1 MB Flash (firmware) |
| Energy Storage | 2 x 470 µF capacitors (hold-up for 50 ms) |
| A/D Resolution | 16-bit (analog inputs) |
| D/A Resolution | 14-bit (analog outputs) |
| Control Cycle | 5 ms (standard), 2 ms (high-speed mode) |
| Power Supply | 24V DC (18V – 36V DC) |
| Power Consumption | 15W (typical), 22W (maximum) |
| Operating Temperature | -20°C to +70°C |
| Protection Class | IP20 (module), IP00 (backplane) |
| Mounting | Rack-based (Eurocard 6U) |
| Approvals | IEC 61508 (SIL 2), CE, UL, CSA |
Comprehensive I/O Configuration for Turbine Control
The ABB HIEE300698R0001 KUC321AE01 features 16 analog inputs for process variables like pressure and temperature. Sixteen digital inputs monitor contact status from valves, switches, and protection devices. Eight analog outputs deliver 4-20mA control signals to actuators and positioners. Eight digital outputs drive relays for start/stop and trip functions.
High-Speed Processing and Real-Time Performance
Two 32-bit DSPs handle control algorithms and I/O processing simultaneously. This dual-processor architecture ensures deterministic response times for critical turbine functions. The module executes control cycles in 5 ms standard mode or 2 ms high-speed mode. Internal 512 KB SRAM stores real-time process data for analysis and diagnostics.
Redundant Actuator Outputs for Safety
Two independent 4-20mA outputs provide redundant control to the turbine actuator. This redundancy ensures continued operation if one output channel fails. Each output undergoes continuous cross-checking for deviation detection. The module switches to the backup channel automatically when it detects an error.
Speed Sensing and Protection Inputs
Three dedicated inputs accept signals from magnetic pickups or proximity probes. These inputs measure turbine shaft speed for governor regulation and overspeed protection. The module continuously compares speed readings against setpoints and trip limits. An overspeed condition triggers immediate action through the digital outputs.
Communication Interfaces for System Integration
Two RS-485 ports support Modbus RTU for connection to DCS and SCADA systems. An Ethernet port enables TCP/IP communication for remote monitoring and configuration. These interfaces allow seamless integration into existing plant control networks. Operators can access real-time data and modify parameters from a central control room.
Robust Energy Storage and Power Stability
Two 470 µF capacitors provide energy storage for 50 ms hold-up during power dips. This short-term reserve prevents control interruptions from transient supply fluctuations. The module draws 15W typically and 22W at maximum load. An internal power supply accepts 18V to 36V DC for wide input tolerance.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
