Technical Overview of the ARCnet Control Panel

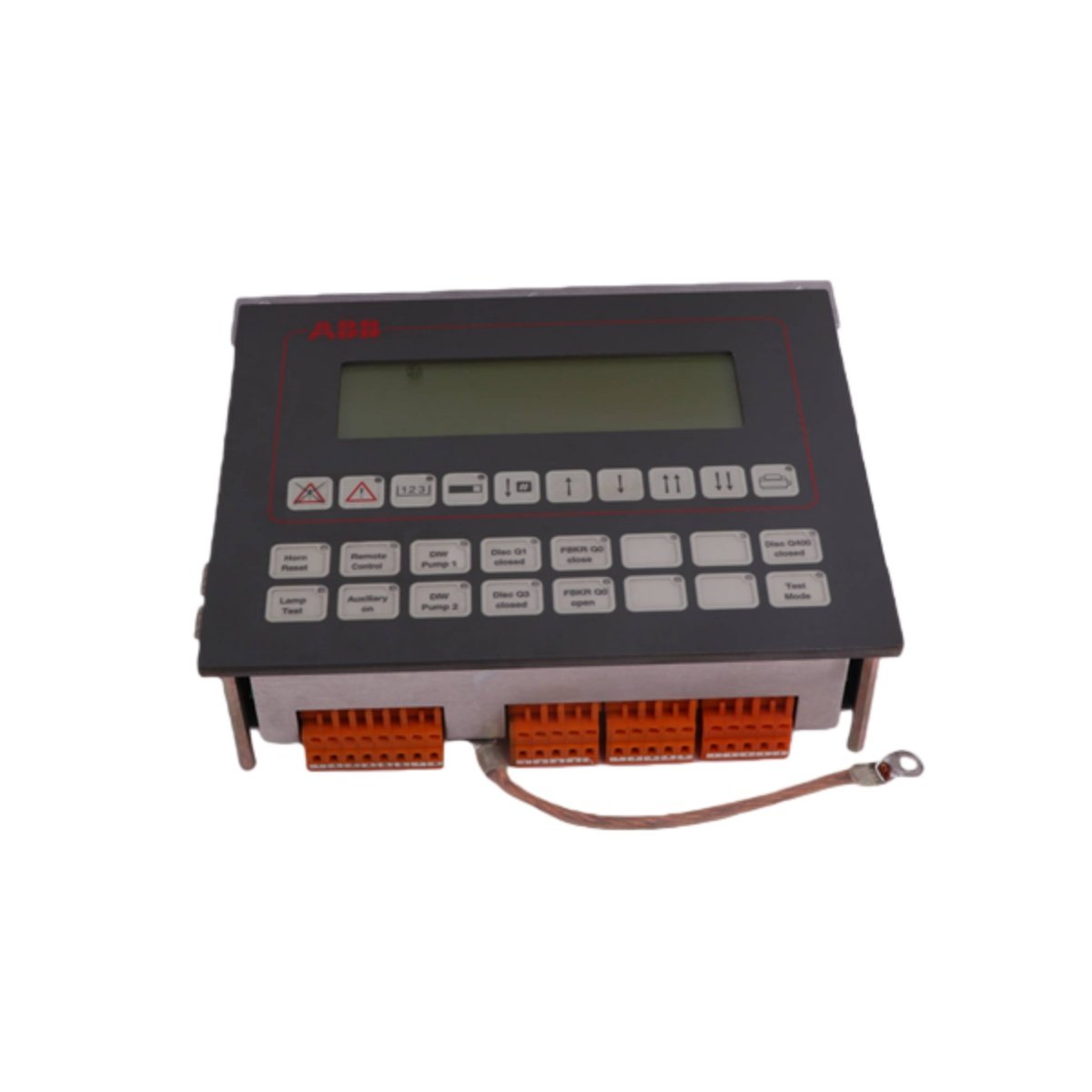

The ABB HIEE200130R2 AFC094AE01 ARCnet Control Panel serves as a dedicated operator interface within ABB distributed control systems. It communicates with the main controller through a deterministic ARCnet token-passing network, ensuring reliable data exchange in noisy industrial environments. Front-panel LEDs provide immediate visual status feedback for power, network link, and activity. This design allows technicians to perform quick diagnostics without a laptop. Therefore, this panel is crucial for maintaining system uptime in applications like power generation and process automation.
Key Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model Number | HIEE200130R2 AFC094AE01 |
| Product Type | ARCnet Control Panel / Operator Interface Panel |
| Communication Protocol | ARCnet (Deterministic Token Passing) |
| Network Interfaces | BNC (Coaxial) and RJ-45 (Twisted Pair) |
| Communication Rate | Up to 2.5 Mbps |
| Input Voltage | 24 VDC (Nominal, with ±10% tolerance) |
| Power Consumption | Approximately 10 W to 15 W (typical) |
| Digital I/O Channels | 16 Digital Inputs / 16 Digital Outputs (specific variants) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Protection Class | IP20 (front panel typical IP54) |
| Dimensions | Approx. 200 x 130 x 50 mm / 145mm x 84mm x 92mm |
| Weight | Approx. 1.0 kg to 1.5 kg |
| Certifications | CE, UL, RoHS |
Functional Capabilities and Design Features
This module provides 16 digital input and 16 digital output channels for flexible control integration. Its non-volatile memory retains configuration parameters during power interruptions. The panel supports multiple programming languages for greater customization flexibility. Consequently, engineers can easily adapt it to specific application needs.
Engineering and Application Context
The ABB HIEE200130R2 fits specifically within the Advant OCS or MasterPiece 200/800 DCS architectures. Its ARCnet interface guarantees deterministic performance superior to standard Ethernet in high-interference settings. The module’s compact form factor and robust construction minimize maintenance requirements over its long service life. Ultimately, this panel provides a reliable human-machine interface for managing complex industrial processes.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
