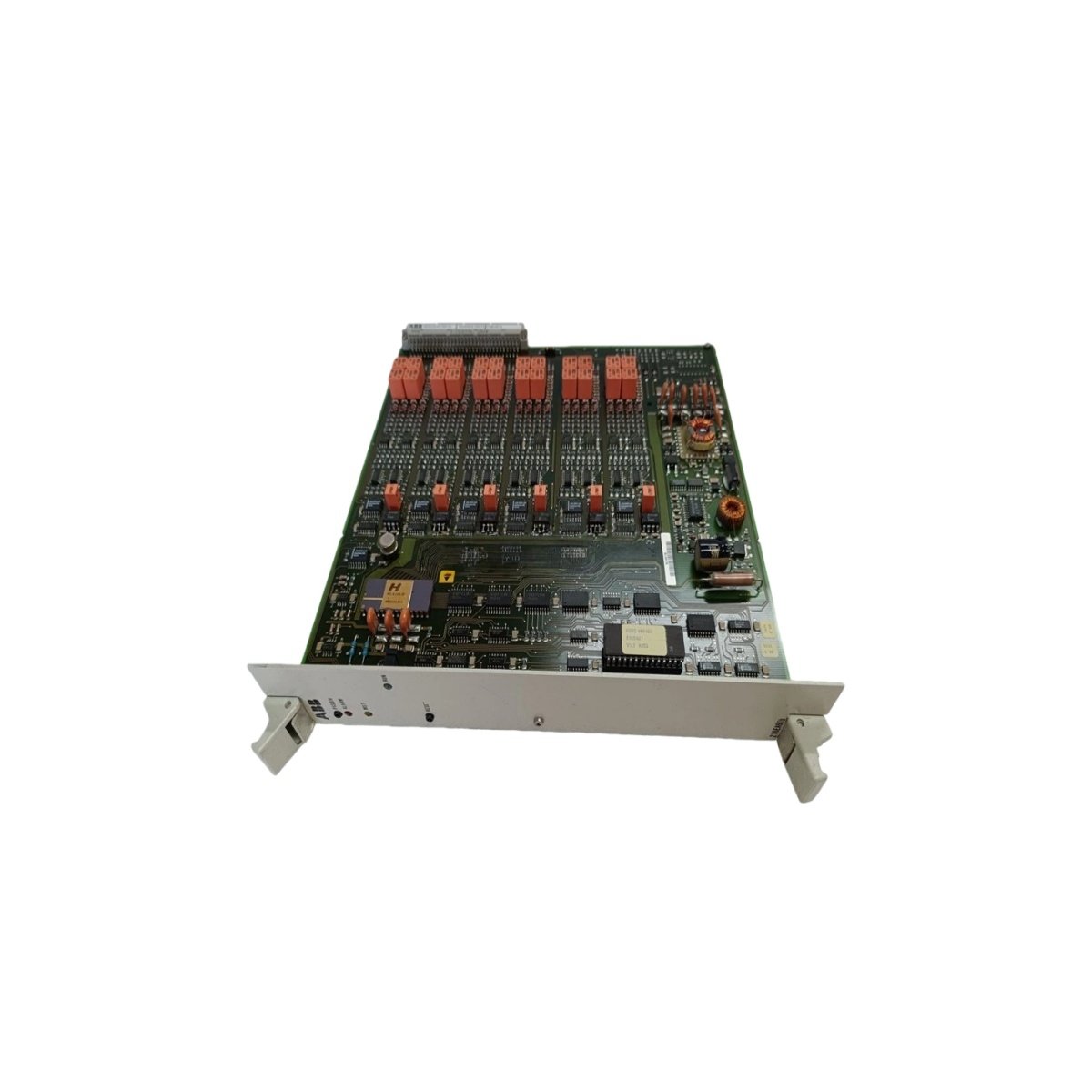

The ABB HESG448230R1 HE010207-306/40 216EA61B is a high-performance bus transmitter module for the Advant OCS system. It is also known as model 216EA61B . This unit accurately converts analog field signals into digital data for the controller. Furthermore, its alternative code is HE010207-306/40 . Consequently, this module serves as a critical interface between the process and the control system . Therefore, it is particularly suited for demanding process automation tasks.

Technical Specifications

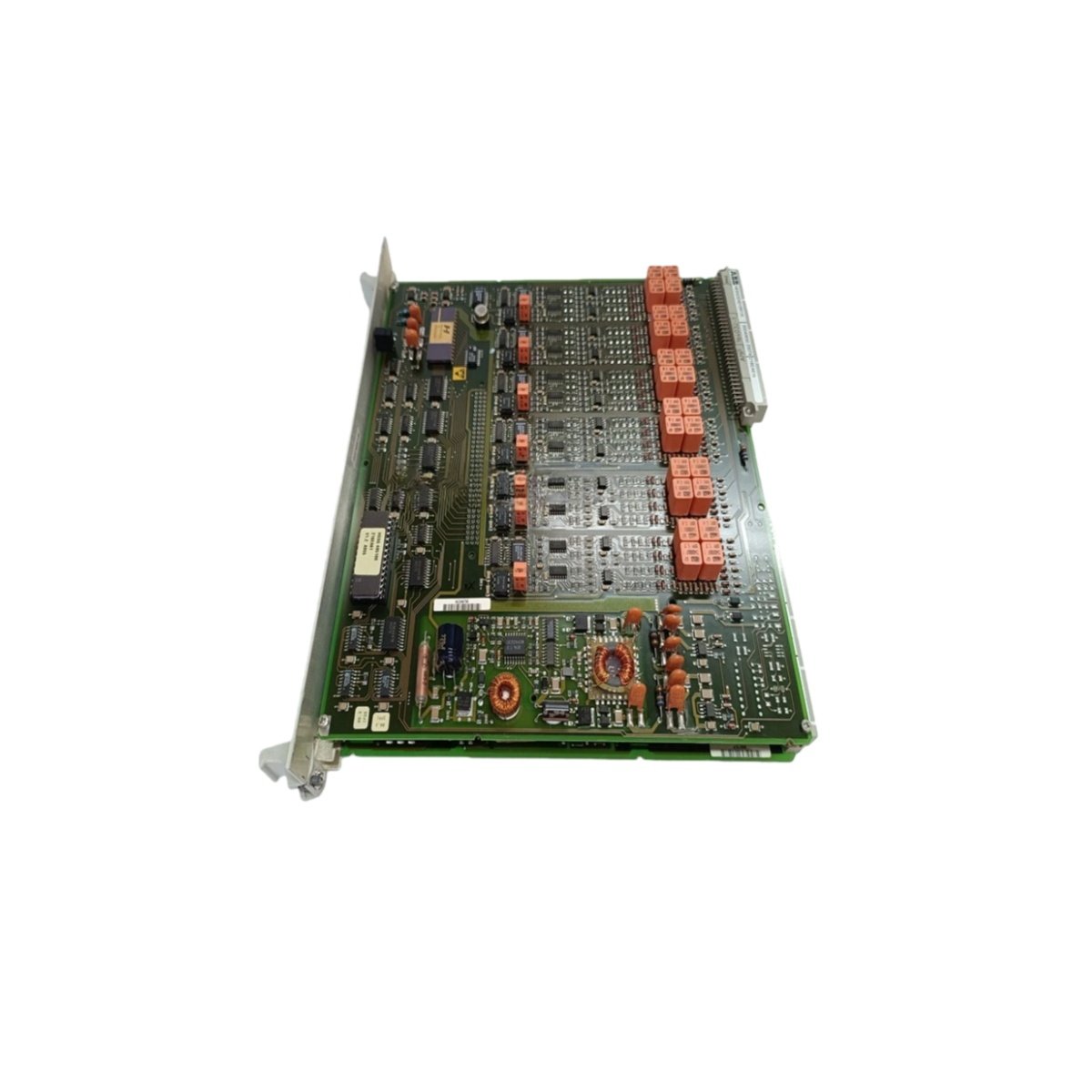

The ABB HESG448230R1 features eight analog input channels for flexible signal connectivity. It accepts both 4-20 mA current signals and 0-10 V voltage inputs . Moreover, each channel offers a 16-bit A/D conversion resolution for high-precision measurements . In addition, the module provides 4 kV galvanic isolation between the inputs and the system bus . The unit operates on a 24 V DC supply and draws 0.12 A . The module measures 102 x 119 x 44 mm and weighs approximately 0.3 kg . Additionally, it supports an extended ambient temperature range of -40 °C to 85 °C.

Key Technical Data

Signal Acquisition and Conversion

The ABB HESG448230R1 delivers exceptional accuracy for critical process measurements. The 16-bit resolution captures even the smallest variations in sensor outputs. Furthermore, the module’s flexible input range supports both current and voltage signals without external converters. In addition, the robust 4 kV isolation protects the control system from electrical noise and surges. Consequently, it ensures reliable data transmission and stable process control . The module also features an integrated digital filter for noise reduction.

System Integration and Applications

This bus transmitter integrates seamlessly with ABB Advant OCS and 800xA systems. Moreover, it supports redundant communication paths for maximum system availability. The ABB HESG448230R1 is ideally suited for complex process applications, including chemical and petrochemical plants, power generation, and oil and gas facilities . In addition, it features diagnostic LEDs for each channel to facilitate quick troubleshooting . The module is also CE marked and UL listed . Finally, its rugged construction ensures reliable operation in harsh industrial environments.

​
