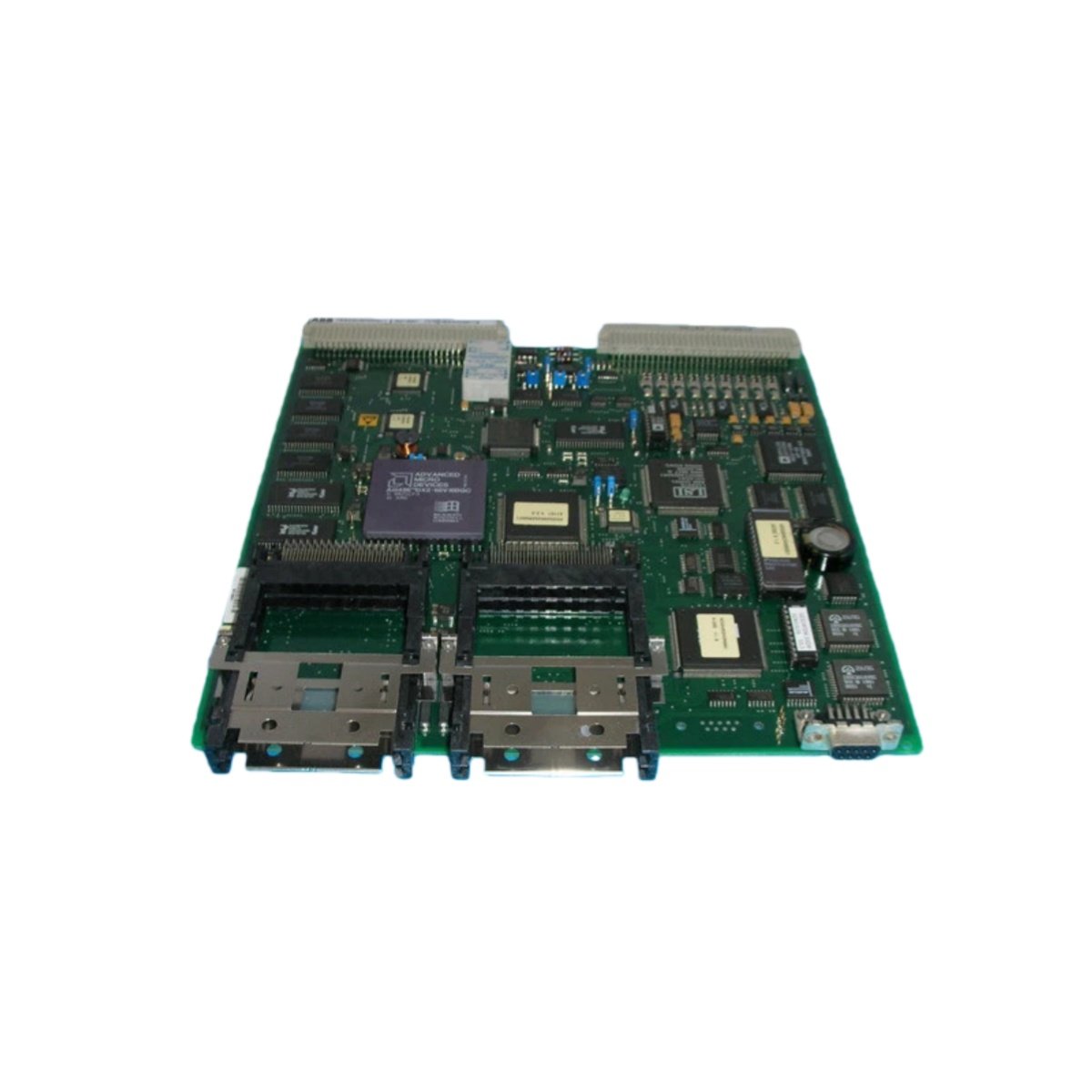

The ABB HESG324015R1 HE010207-306/10 is a high-performance analog input module for the Advant OCS system. This module processes analog signals from field devices with high precision . It serves as part of the 800xA distributed control system. The unit is also known by its alternative code, HESG216880/E . Its robust construction ensures reliable operation in harsh environments.

Technical Specifications

The ABB HESG324015R1 HE010207-306/10 offers four analog input channels for versatile field connectivity. It supports standard 4-20 mA current signals and 0-10 V voltage signals . The module achieves an A/D conversion resolution of 14 bits plus sign for accurate measurement . It incorporates a 500 V isolation between channels and the system bus . The module’s dimensions are 102 mm x 119 mm x 44 mm, weighing approximately 0.25 kg . An ambient temperature range of -20 °C to 60 °C ensures broad industrial suitability.

Key Technical Data

Signal Acquisition and Conversion

This ABB analog input module provides high accuracy for process measurements. The 14-bit resolution captures small variations in sensor outputs with precision. It accepts both current and voltage signals, eliminating the need for external converters. The module includes software configurable input ranges for flexible system design. An onboard digital filter reduces noise and ensures stable readings.

System Integration and Applications

The ABB HESG324015R1 connects directly to the Advant OCS rack via the system bus. It supports both analog and digital signal types for comprehensive field connectivity. This module is ideal for process automation requiring continuous monitoring, such as chemical plants, power generation, and water treatment. It offers reliable performance for ABB’s 800xA DCS. Its diagnostics features report faults like wire breaks or out-of-range signals.

​
