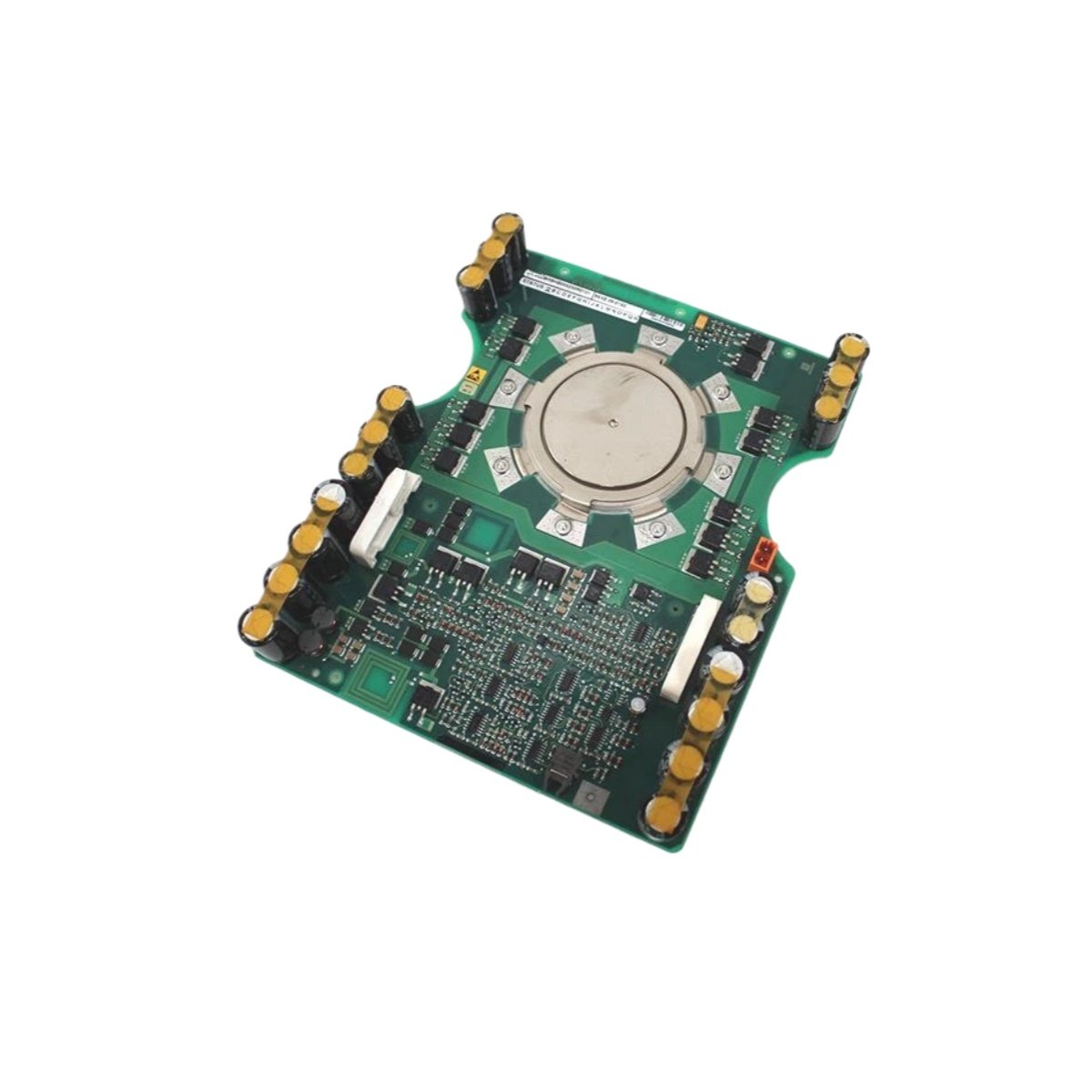

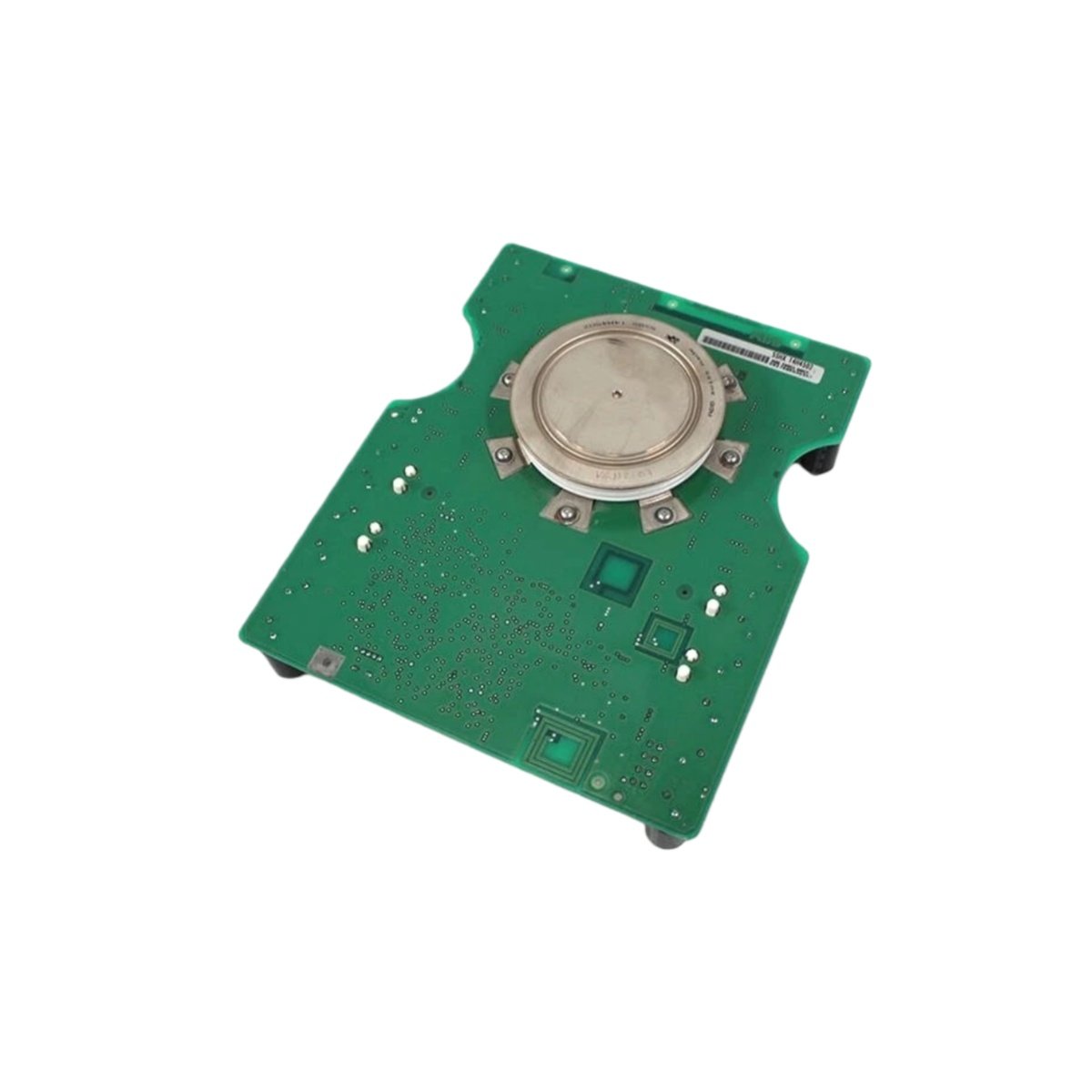

The ABB GVC704AE01 3BHB003230R0101 is a gate drive board for high-power IGCT-based converter systems. This module serves as the intelligent interface between the control system and the power semiconductor . It translates low-voltage control signals into precise gate drive pulses. The board is specifically designed for ABB ACS 5000 and ACS 6000 series medium-voltage drives . Consequently, it is a critical component for large industrial applications.
Technical Specifications
The ABB GVC704AE01 3BHB003230R0101 requires a 15V DC supply for the driver stage and a 24V DC auxiliary supply for the logic circuits . It provides a maximum gate drive current of ±20A at switching frequencies up to 20 kHz . The module also features 4 kV RMS isolation between the control and power sections . The board measures 240 mm x 200 mm x 45 mm and weighs approximately 1.22 kg . It operates reliably over a -25 °C to +70 °C temperature range .
Key Technical Data
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Product Type | Gate Drive / Power Board |
| Drive Voltage (Driver) | 15 V DC ±5% |
| Drive Voltage (Auxiliary) | 24 V DC ±10% |
| Max Gate Drive Current | ±20 A |
| Switching Frequency | ≤ 20 kHz |
| Isolation Voltage | 4 kV RMS |
| Communication | Fiber optic |
| Dimensions (W x H x D) | 240 x 200 x 45 mm |
| Weight | Approx. 1.22 kg |
| Operating Temperature | -25 °C to +70 °C |
Gate Drive and Protection Functions
The ABB GVC704AE01 3BHB003230R0101 integrates comprehensive protection features to safeguard the power module. It includes DESAT detection for short-circuit protection and active clamping for overvoltage suppression . The board monitors the gate voltage and the power supply status continuously. It communicates with the main controller via a fiber optic link for secure, noise-immune signal transmission . Status LEDs provide immediate visual indication of power and fault conditions.
System Integration and Applications
This drive board directly drives ABB IGCT modules such as the 5SHX series . It is the essential component within the power section of ACS 6000 and ACS 5000 medium-voltage drives. Common applications include heavy industry, mining, and large-scale material handling. The board ensures the high reliability and performance required by these demanding environments.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
